SKU: 8103-0120-Refurb

AMP2-VSDA (Refurb, 1 Available)

Carries full warranty.  CIA Terms for purchase.  Regularly priced at $3,625, refurb available at $995. Compact, low-cost units to select and monitor up to 4 audio channels from analog, AES, or SD-SDI sources
Data Sheet

Data Sheet

Manual

Manual

Ask a Question

Ask a Question

Support

Support


Sale!

$ 795

Request a Quote

fields marked with an * are required

AMP2-VSDA (Refurb, 1 Available)

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

    Important Note:

    From time to time Wohler offers units here that have been unboxed, demonstrated or that we quite simply just want to get off of our factory shelves – either way the result is an incredible deal for you. All units are in excellent condition, are fully factory tested and come covered by our one year full warranty for your complete peace of mind.

    • Sales are on a CASH-IN-ADVANCE or CREDIT CARD basis.
    • Each item carries a full one year manufacturer’s warranty.
    • At these prices all sales are final, we can’t accept any returns.
    • All quantities are while supplies last.

    The AMP V Series monitors provide full fi delity stereo audio monitoring. These units feature four LED level meters showing accurate level-metering of all four input sources from the selected input group. These units contain high performance transducers driven by three power amplifi ers: one amplifi er/driver combination handles midrange and high frequency information, while the second handles summed low frequency information below the 500 Hz crossover point.

    Extended HF response reveals potential problems with audio whine or hiss. Electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of out-of-phase (reversed polarity) audio feeds.

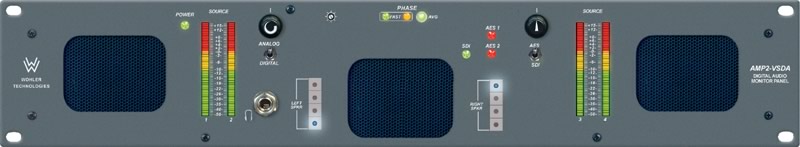

    The front panel features an innovative LED display of phase/polarity relationships. Output limiter circuits are incorporated to protect the speakers, and extensive magnetic shielding allows placement immediately adjacent to video monitors with no color impurities.

    Additional information

    Monitoring Need

    Baseband-only Monitors

    By Product Categories

    Audio

    Features & Benefits

    FEATURES:

    • Tri-color level meters displaying simultaneous VU and PPM
    • Eight balanced analog inputs
    • Independent selection of 2 from 4 mono sources to left and right outputs
    • Balanced analog output of 2 selected sources
    • Innovative LED display of phase/polarity relationships
    • Blowout proof speakers

    BENEFITS:

    • Premium quality drivers and power amplifiers provide excellent reproduction
    • Focused sound reduces adjacent bay crosstalk
    • Thorough magnetic shielding allows placement next to video monitors
    • Extended frequency response and low distortion
    • Audible Indication of phase/polarity problems
    • Full fidelity audio monitoring

    A-V Specs

    Spkr Power Output  RMS Each Side: 10W Continuous/14W Peak;
    Peak Acoustic Output @ 2 feet  104 dB SPL @ 2 ft
    Analog Input Impedance  70 kOhms balanced
    Frequency Response  80 Hz – 16 kHz (+/-5 dB); (-10 dB @ 40 Hz, 22 kHz)
    Hum and Noise  Better than -68 dB below full output
    Meter Dynamics  VU and PPM



    Physical Specs

    Rack Height  2RU
    Power Consumption  35 Watts
    Power Supply  Internal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
    Dimension Width  19.0″ (483mm)
    Dimension Height  3.5″ (89mm)
    Dimension Depth  12.0″ (305mm)
    Net Weight  18.0 lbs (8.2 kg)
    Shipping Weight  18.0 lbs (8.2 kg)
    Shipping Dimensions  24 × 17 × 8 in (LxWxH)
