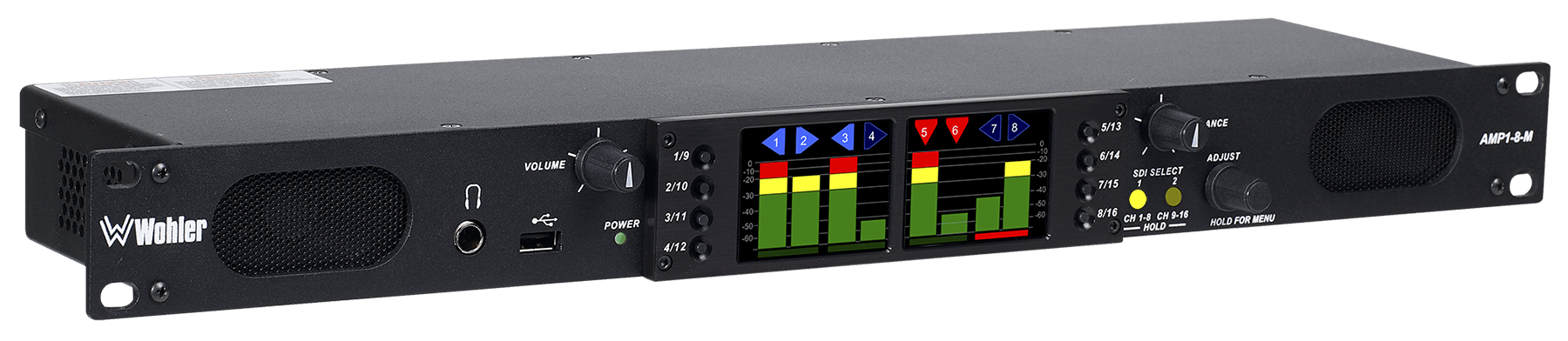

AMP1-8-M | 8 Channel SDI audio monitor

SKU: 8130-0450

Dual Input, 8 Channel SDI audio monitor (3G, HD, SD).  1RU.  Sum, mute or solo audio channels using quick & easy push-buttons.

Request a Quote
Audio Monitor 3G/HD/SD-SDI Level Meters Phase USB Socket Headphone Socket Speakers Made In USA

Description

8 Channel SDI Audio Monitor that provides Value for Money

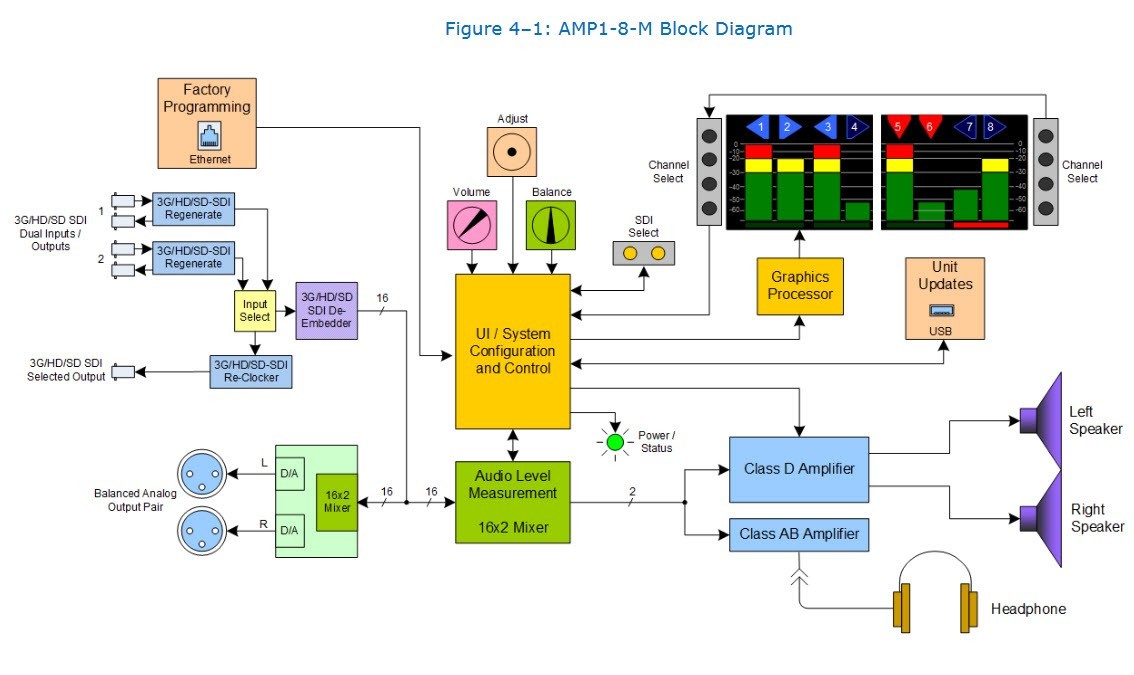

Whether you are in the studio or on the road, the AMP1-8-M is an SDI audio monitor that offers fast and easy monitoring of 3G, HD, or SD formats.  Above all, Wohler has designed it for the most demanding environments.  First, with automatic frame rate detection, you get instant selection and summing of up to 8 audio channels.  Next, you can choose between two SDI inputs and then toggle selection of channels 1 thru 8 OR channels 9 thru 16.  Additionally, other standard features include volume and balance controls, push-button selection of audio channels, SDI looped outputs, and conversion to analog on XLR.  Finally, level meters and phase display on two bright LCD’s.



Are you interested in an SDI audio monitor that displays 16 channels instead of 8 channels?  Please check out our AMP1-16-M instead.



What about monitoring video with audio?  We have solutions for that as well.  Please check out our iVAM1-1.  Or visit our more fully-featured iAM-12G-SDI product page.



Are you curious about what SDI is?  See the current entry at Wikipedia.

Features and Benefits


  • Choose between two SDI inputs (3G, HD or SD SDI)
  • Automatic SDI frame rate detection and selection
  • Shallow sub-5 inch depth for easy installation in Outside Broadcast vehicles and consoles
  • Both SDI inputs are looped and re-clocked
  • The selected and active SDI input is also re-clocked out on a 3rd dedicated BNC connector
  • Monitor Channels 1-8 or Channels 9-16
  • Sum, mute or solo audio channels using quick and easy push-buttons

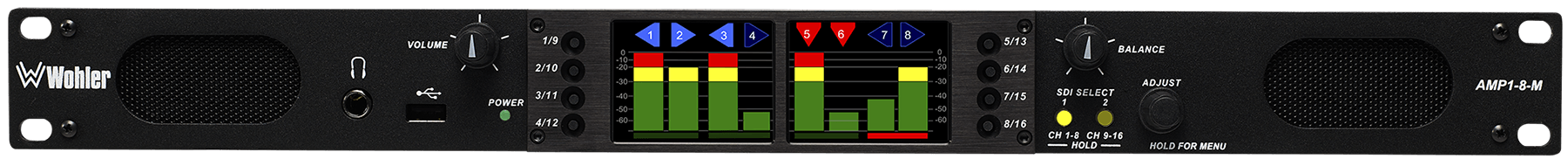

  • High resolution metering on two LCD’s with 166-segment displays
  • Monitor audio through built-in speakers, headphones or analog outputs, with optional muting for internal speakers
  • Stereo or mono monitoring
  • Stereo phase indicators
  • Adjustable Volume and Balance
  • Balanced stereo analog outputs on XLR-Ms. Fixed level or volume/balance controlled.
  • Totally digital system architecture with high fidelity Class D amp
  • Selectable line level or front panel volume control and outputs

Options

A-V Specs

Spkr Power OutputRMS Each Side: 6W Continuous/12W Peak
Peak Acoustic Output @ 2 feet90 dB SPL at 2 feet
Frequency Response150 Hz to 16 kHz (+/- 5 dB)
Hum and NoiseBetter than -68 dB below full output
Meter DynamicsConfigurable up to simultaneous VU & PPM
Display TypeLCD
Number of screens2
Diagonal Display Size2.4 Inch
Display Resolution (HxV)320 x 240

Physical Specs

Rack Height1RU
Power Consumption60 Watts
Power SupplyInternal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
Dimension Width19.0" (483mm)
Dimension Height1.75" (45mm)
Dimension Depth4.25" (108mm)
Net Weight7 lbs (3.2 kg)
Shipping Weight7 lbs (3.2 kg)
Shipping Dimensions23 × 12 × 6 in (LxWxH)

Support

Looking for software updates? Click here.

Reporting an issue? Click here.

Features

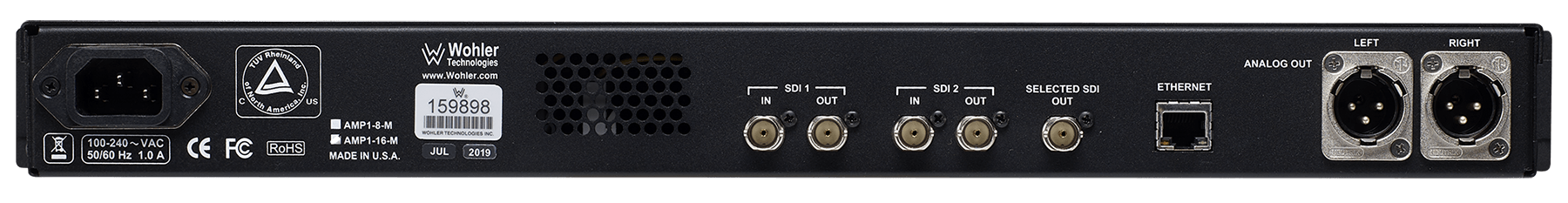

Signal Input x
Signal Output x , x
Data Ports 1 USB 2.0 Port for copying system configurations to another unit or to a PC; 1 Ethernet port used for updating software & firmware as well as copying/customizing/loading custom configurations
Audio Specifications
Spkr Power Output RMS Each Side: 6W Continuous/12W Peak
Peak Acoustic Output @ 2 feet 90 dB SPL at 2 feet
Frequency Response 150 Hz to 16 kHz (+/- 5 dB)
Hum and Noise Better than -68 dB below full output
Meter Dynamics Configurable up to simultaneous VU & PPM
Video Specifications
Diagonal Display Size 2.4 Inch
Display Resolution (HxV) 320 x 240
Display Type LCD
Number of screens 2
Features
Interfacing
Physical
Dimension Depth 4.25" (108mm)
Rack Height 1RU
Dimension Height 1.75" (45mm)
Dimension Width 19.0" (483mm)
Net Weight 7 lbs (3.2 kg)
Power Consumption 60 Watts
Power Supply Internal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
Shipping Weight 7 lbs (3.2 kg)
Other
Processing
