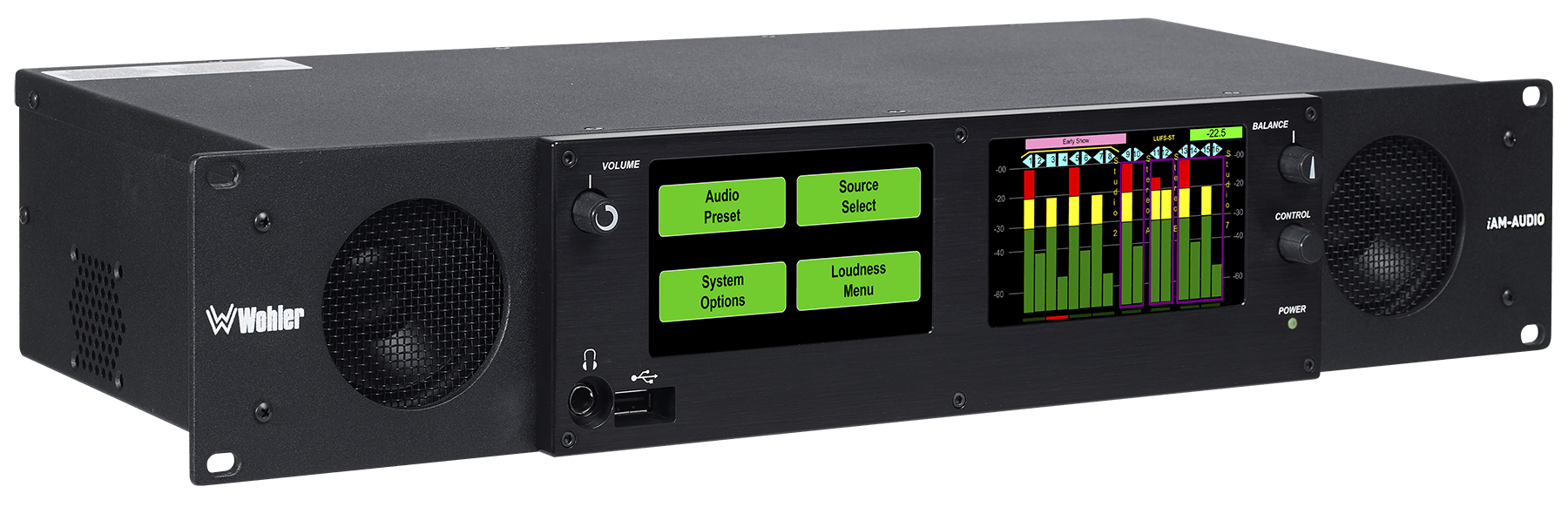

iAM-AUDIO-2 Isometric
  • iAM-AUDIO-2 Isometric

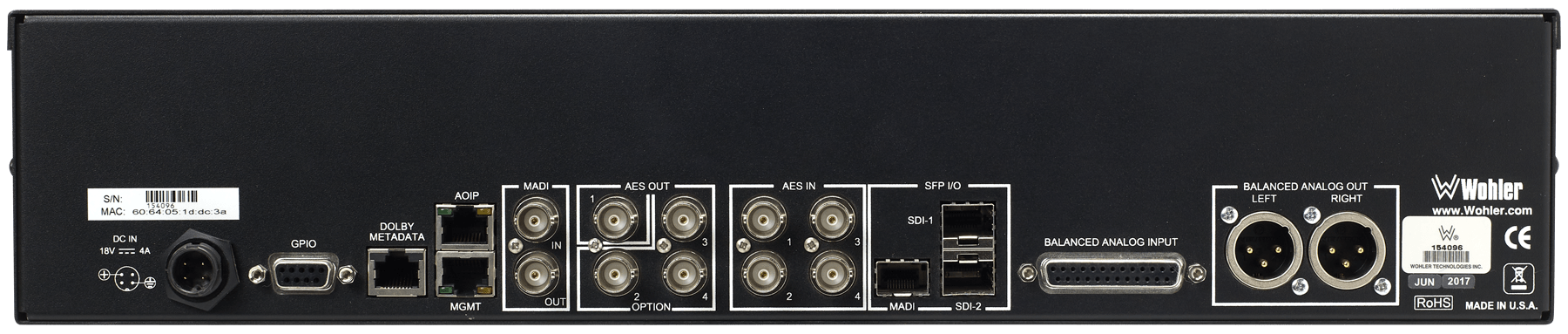

  • iAM-AUDIO-2 Rear Panel

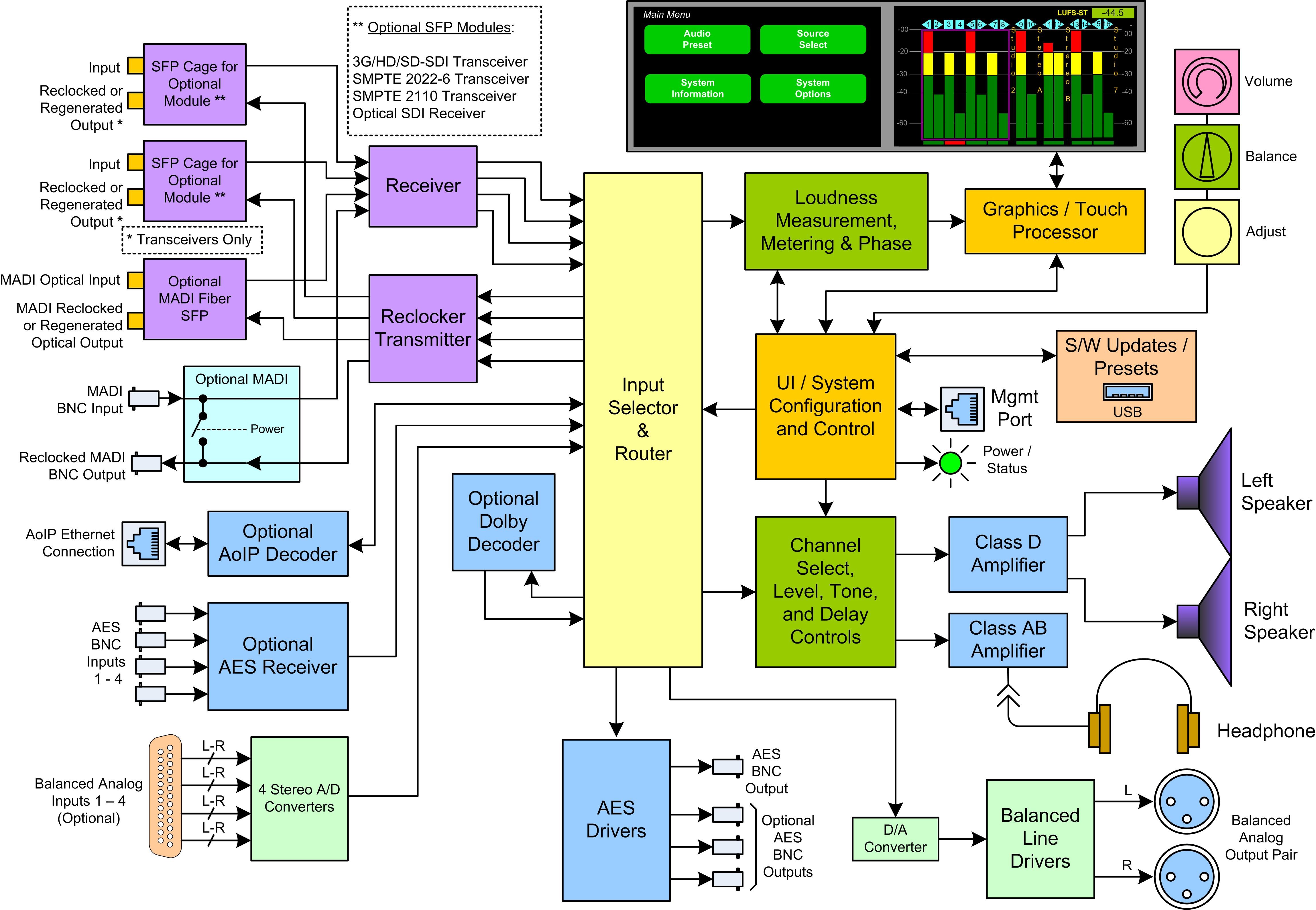

  • iAM-AUDIO-2 Block Diagram

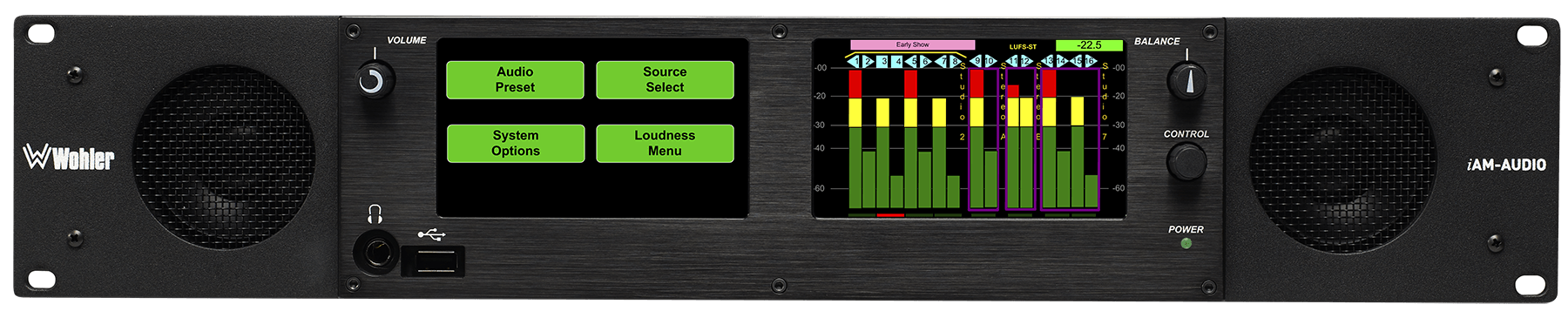

  • iAM-AUDIO-2 Front Panel

iAM-AUDIO-2 Monitor (16 ch), options for SDI & IP

Order Number 8114-0250

Versatile touch-capable Audio over IP Monitor with options for SDI, Dante, Ravenna, ST-2110, ST-2022-6, Dolby Processing, AES3, MADI & Analog. 2RU.

Datasheet Manual Inquire See Video video clip
Audio Monitor 3G/HD/SD-SDI (option) Analog AES3 (option) MADI64 (option) Ravenna (option) ST-2110 (option) ST-2022 (option) Fiber Optic (option) Level Meters Configuration Presets Dolby Audio Decoding (option) Loudness Measurement Audio Mixing Remote User Interface Touchscreen Panel Interface USB Socket Headphone Socket Speakers API SFP Socket Made In USA

16 channel Audio over IP Monitor with options for multiple signal upgrades, including SDI, Dante, Ravenna, 2110 & 2022

iAM-AUDIO-2 is a 16 channel audio monitor that is easy to operate, yet powerful enough to provide high quality, value-added monitoring of multiple signal types within a space-saving 1U chassis.  Input options include SDI (3G, HD, SD), the latest IP formats (Ravenna, AES67, Dante) and the audio essences of ST-2110 and ST-2022-6..  Analog ships standard.  AES3 & MADI inputs are also available.  Dolby processing is available as a processing option.  This unit also includes loudness monitoring and phase metering as standard.

Three touch screen panels make the unit easy to use, easy to operate, and easy to configure for your particular purpose.  Three rotary knobs supplement the touch controls and provide easy and instant access to volume, balance and other control function, especially for summing, soloing, muting and related tasks.  A front mounting USB port is used for software updates to support new and emerging technologies.  All iAM Series monitors are built with an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration.

The iAM-Audio-2 is the perfect solution for any application that requires a compact unit for monitoring an evolving range of professional signals.

FEATURES & BENEFITS:

  • Unit capable of monitoring Audio over IP
  • Touch screen front panel for easy, intuitive control
  • Monitor up to 16 channels of audio from multiple sources
  • Built-in speakers, headphone jack, USB and Ethernet ports
  • A range of included and optional connectors and signal processing options, including SFP slots for future I/O and Ethernet inputs for IP-based I/O
  • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
  • Store and retrieve presets via USB or remote software control
  • Software upgrades via USB or network
  • APIs included for remote control

iAM Series Option Matrix

Options for all Wohler Products



Base Units
iAM-AUDIO-1 8114-0200 1RU. Audio monitoring and metering with touchscreen control. Includes OPT-ANLG only.
iAM-AUDIO-2 8114-0250 2RU. Audio monitoring and metering with touchscreen control. Includes OPT-ANLG only.
Signal Licensing Options (software only, no hardware)
OPT-ANLG 829093 Included as standard. Enable monitoring of 8 Analog channels on DB-25. Software activation key.
OPT-AES 829080 Enable Monitoring of 4 AES3 Input Pairs.
OPT-MADI 829092 Enable Monitoring of 1 x MADI64 input via BNC with 1 looped output
Processing Options (includes hardware)
OPT-DOLBY (iSeries) 829077 Enables monitoring of Dolby® D, DD+ or E streams. Hardware card with software activation key. OPT-DOLBY requires any one of the following OPT/SFPs to be added: OPT-AES, SFP-SDI, SFP-SDI-Fiber, SFP-2022-6, SFP 2110 or SFP-2110+2022-6
OPT-DANTE (iSeries) 829078 Enable monitoring from up to a 64ch Dante™ Input. Hardware card with software activation key.
OPT-RAVENNA 64 (iSeries) 829173 Enable monitoring from up to a 64ch Ravenna™ / AES67 Input. Includes NMOS support. Hardware card with software activation key.
OPT-RAVENNA 256 (iSeries) 829079 Enable monitoring from up to a 256ch Ravenna™ / AES67 Input. Includes NMOS support. Hardware card with software activation key.
Small form-factor pluggable (SFP) Options
SFP-SDI 829089 3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. SFP Module with sfw activation key. Only purchase if 3rd SDI I/P is required.
SFP-2110 w/Ember+
SFP-2110 w/NMOS		 829086
829086-1		 SMPTE 2110 receiver, Multi-Mode 850 NM, LC (fiber) Connectors. SFP Module with software activation key.
SFP-2022-6 829088 SMPTE 2022-6 receiver, Multi-Mode 850 NM, LC (fiber) Connectors. SFP Module with software activation key. Use emSET to configure SFP.
SFP-2110 w/Ember+ & 2022-6
SFP-2110 w/NMOS + & 2022-6		 829087
829087-1		 SMPTE 2110 or 2022-6 receiver, Multi-Mode 850 NM, LC (fiber) Connectors. SFP Module with software activation key. Use emSET to configure SFP.
SFP-SDI-Fiber 829084 3G/HD-SD-SDI/ASI video SFP optical input; LC (fiber) Connectors. Single-Mode Receiver, Medium Haul, Non-MSA, no output; SFP with software activation key
SFP-MADI-MM-Fiber 829081 MADI optical fiber receiver; Multi-Mode, LC (fiber) Connectors. SFP Module with software activation key.
SFP-MADI-SM-Fiber 829082 MADI optical fiber receiver; Single-Mode, LC (fiber) Connectors. SFP Module with software activation key.



SDI InputsSFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC
SDI OutputsSFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC
SMPTE 2110 InputSFP-2110 (829086): SMTPE 2110 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP.
SMPTE 2022 InputSFP-2022 (829088): SMPTE 2022-6 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP.
Dante InputOPT-DANTE (829078): Enables decoding and monitoring of Dante input streams.
Ravenna InputOPT-RAVENNA (829079): Enables decoding and monitoring of Ravenna input streams.
AES67 InputOption: OPT-RAVENNA (829079) or OPT-DANTE (829078) Enables decoding and monitoring of AES67 Compliant Dante input streams.
AES3 InputOPT-AES (829080): Enables decoding and monitoring of 4 AES inputs on BNC
AES3 Output1 AES output pair on BNC of mix to speakers
Analog InputOPT-ANALOG (829093): 8 Analog Channels on DB-25 - INCLUDED AS STANDARD
Analog Output2 on XLR of mix to speakers
MADI InputSoftware Processing Options: OPT-MADI (829092) Enables decoding and monitoring of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
MADI OutputSoftware Processing Options: OPT-MADI (829092) Enables loop-through output of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
Fiber InputSFP-SDI-Fiber (829084): 3G/HD/SD-SDI video SFP optical input: LC (fiber) connectors; Single-Mode receiver, Medium Haul, non-MSA, no output; with software activation key
Dolby ProcessingOptional Hardware Proccesing Card: OPT-DOLBY (829077) Enables decoding and monitoring of Dolby D, DD+, and E Streams
SpeakersYes
Power OutputRMS Each Side: 15W Continuous/30W Peak
Peak Acoustic Output @ 2 feet104 dB SPL @ 2 ft
AES Input Sampling Rate48 kHZ
Analog Input Impedance40k Ohms balanced
Frequency Response60 Hz - 16 kHz (+/-5 dB); (-10 dB @ 50 Hz, 20 kHz)
Hum and NoiseBetter than -75 dB below full output
Meter DynamicsSimultaneous VU & PPM
Meter ScaleSimultaneous VU & PPM
Diagonal Display Size4.3" (109 mm)
Display Resolution (HxV)480H x 272V
Display TypeLCD Touchscreen
Number of screens1 Graphics
Level MetersOn-Screen for up to 16 Channels
Audio Channels (max)16
Audio MixingYes
Loudness MeasurementMeasure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
Dolby MetadataAvailable with OPT-DOLBY processing option
PresetsYes
Front Panel ControlsVolume Encoder; Balance Encoder; On Screen Touch Display
Remote User InterfaceYes
TouchscreenYes
Headphone JackYes
Ethernet GbEYes
USB PortYes
SFP CageYes, 2 + 1
Rack Height2RU
Dimension Width19.0" (483mm)
Dimension Height3.5" (89mm)
Dimension Depth7.5" (191mm)
Net Weight6.5 lbs. (2.9 kg)
Shipping Weight8.5 lbs (3.9 kg)
Power Consumption40 Watts typical
Power SupplyExternal 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Additional OptionsAvailable API's: Get Available Presets; Get Preset Information; Get Active Preset; Apply Preset; Set Mute/Unmute Clusters; Set Solo Cluster; Set Solo Channel; Source Select

Looking for software updates? Click here.

Reporting an issue? Click here.

Features

Signal Input SFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC x SDI Inputs, OPT-AES (829080): Enables decoding and monitoring of 4 AES inputs on BNC x AES3 Input, OPT-ANALOG (829093): 8 Analog Channels on DB-25 - INCLUDED AS STANDARD x Analog Input, Optional Hardware Proccesing Card: OPT-DOLBY (829077) Enables decoding and monitoring of Dolby D, DD+, and E Streams x Dolby Processing, Software Processing Options: OPT-MADI (829092) Enables decoding and monitoring of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors x MADI Input, SFP-SDI-Fiber (829084): 3G/HD/SD-SDI video SFP optical input: LC (fiber) connectors; Single-Mode receiver, Medium Haul, non-MSA, no output; with software activation key x Fiber Input, SFP-2110 (829086): SMTPE 2110 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP. x SMPTE 2110 Input, OPT-DANTE (829078): Enables decoding and monitoring of Dante input streams. x Dante Input, Option: OPT-RAVENNA (829079) or OPT-DANTE (829078) Enables decoding and monitoring of AES67 Compliant Dante input streams. x AES67 Input, OPT-RAVENNA (829079): Enables decoding and monitoring of Ravenna input streams. x Ravenna Input, SFP-2022 (829088): SMPTE 2022-6 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP. x SMPTE 2022 Input
Signal Output SFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC x SDI Outputs, 1 AES output pair on BNC of mix to speakers x AES3 Output, 2 on XLR of mix to speakers x Analog Output, Software Processing Options: OPT-MADI (829092) Enables loop-through output of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors x MADI Output
Audio Specifications
Speakers Yes
Power Output RMS Each Side: 15W Continuous/30W Peak
Peak Acoustic Output @ 2 feet 104 dB SPL @ 2 ft
AES Input Sampling Rate 48 kHZ
Analog Input Impedance 40k Ohms balanced
Frequency Response 60 Hz - 16 kHz (+/-5 dB); (-10 dB @ 50 Hz, 20 kHz)
Hum and Noise Better than -75 dB below full output
Meter Dynamics Simultaneous VU & PPM
Meter Scale Simultaneous VU & PPM
Video Specifications
Diagonal Display Size 4.3" (109 mm)
Display Resolution (HxV) 480H x 272V
Display Type LCD Touchscreen
Number of screens 1 Graphics
Features
Level Meters On-Screen for up to 16 Channels
Audio Channels (max) 16
Audio Mixing Yes
Dolby Metadata Available with OPT-DOLBY processing option
Loudness Measurement Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
Presets Yes
Interfacing
Ethernet GbE Yes
Front Panel Controls Volume Encoder; Balance Encoder; On Screen Touch Display
Headphone Jack Yes
Remote User Interface Yes
SFP Cage Yes, 2 + 1
Touchscreen Yes
USB Port Yes
Physical
Dimension Depth 7.5" (191mm)
Rack Height 2RU
Dimension Height 3.5" (89mm)
Dimension Width 19.0" (483mm)
Net Weight 6.5 lbs. (2.9 kg)
Power Consumption 40 Watts typical
Power Supply External 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Shipping Weight 8.5 lbs (3.9 kg)
Other
Additional Options Available API's: Get Available Presets; Get Preset Information; Get Active Preset; Apply Preset; Set Mute/Unmute Clusters; Set Solo Cluster; Set Solo Channel; Source Select
