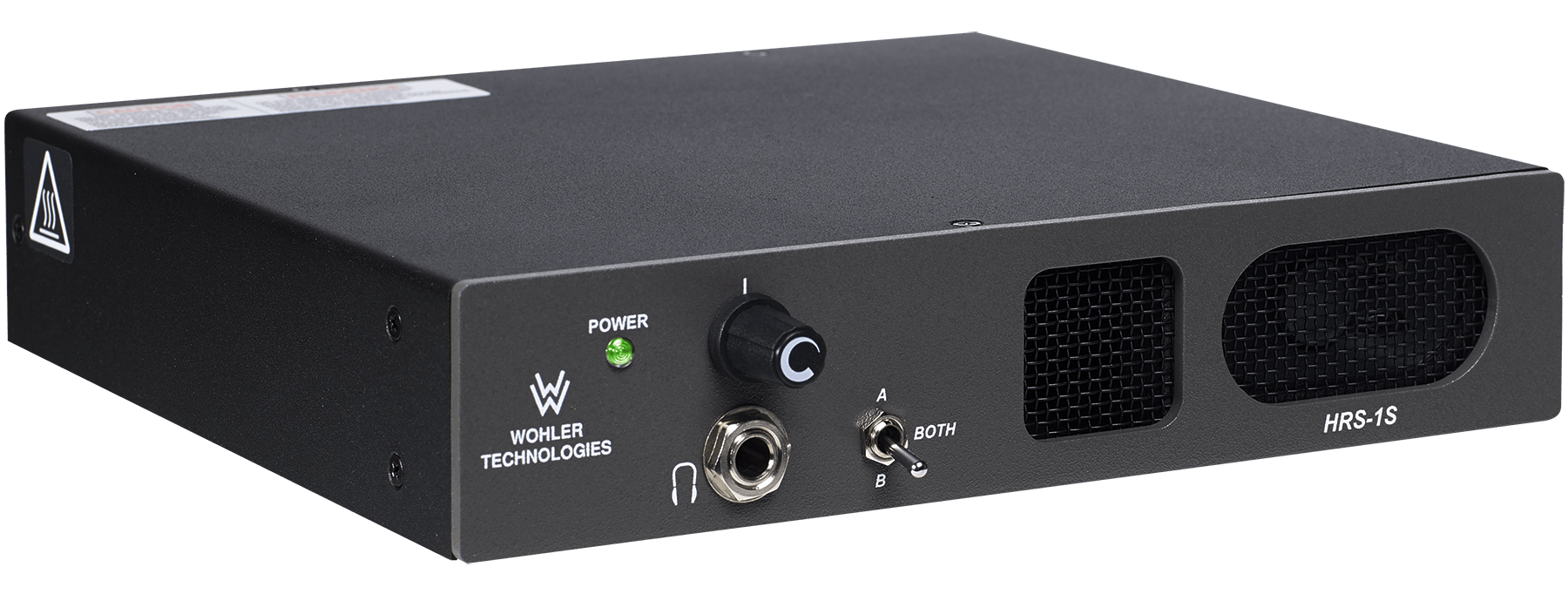

HRS-1S

SKU: 8100-0310

Self-Powered Speaker System, 2 Channel, 2 XLR Inputs. A, B, or A+B Summing Selection. With RE-1 mounting kit.

Request a Quote
Audio Monitor Analog Headphone Socket Speakers Made In USA

Description

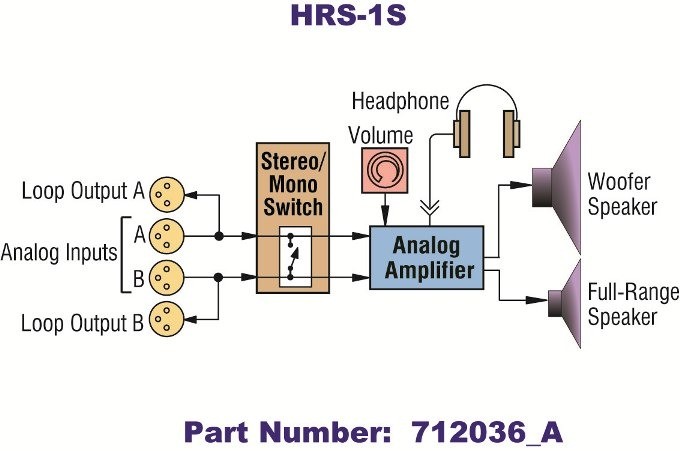

The HRS-1S provides self-powered, full-fidelity audio monitoring of 2 analog channels in the smallest space possible (half-width 1 RU). This unit contains two high performance transducers driven by two power amplifiers: one amplifier/driver combination handles midrange and high frequency information, while the second handles summed low frequency information below the 500 Hz crossover point.



The unique design allows this unit to fit almost anywhere, and provides optimally focused sound for operators in an ultra near field (1 to 3 ft.) working environment. This provides for a higher SPL for the operator while reducing overall ambient sound and adjacent bay crosstalk.

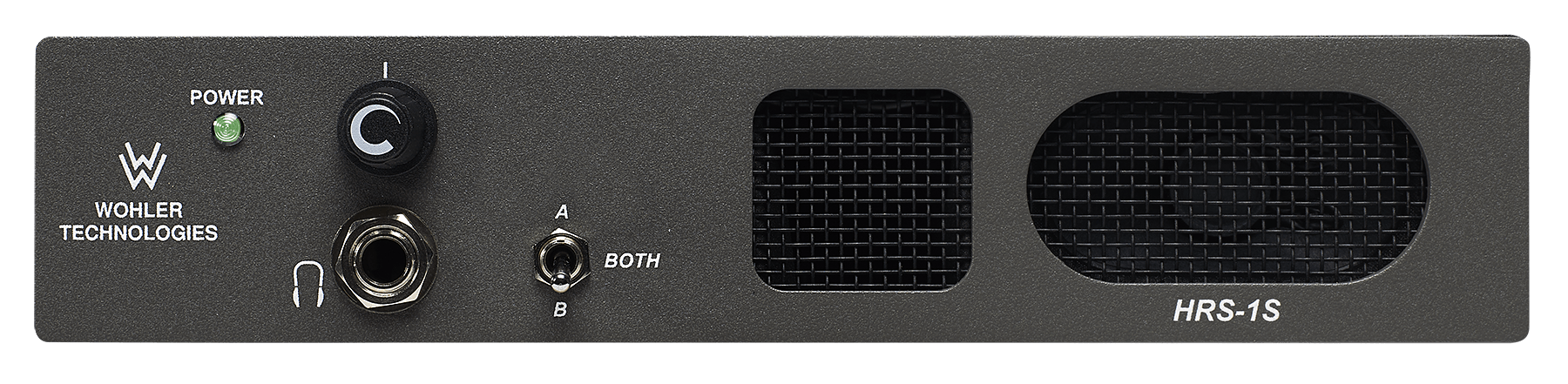

Extended HF response reveals potential problems with audio whine or hiss. Electronic rather than acoustic cancellation of bass frequencies provides positive audible detection of out-of-phase (reversed polarity) audio feeds. A headphone jack is provided on the front panel, usage automatically mutes the speakers. Output limiter circuits are incorporated to protect the speakers, and extensive magnetic shielding allows placement immediately adjacent to video monitors with no color impurities.

Features and Benefits



FEATURES:

  • Premium quality subwoofer and midrange speaker
  • High quality AMP Series internal amplifier

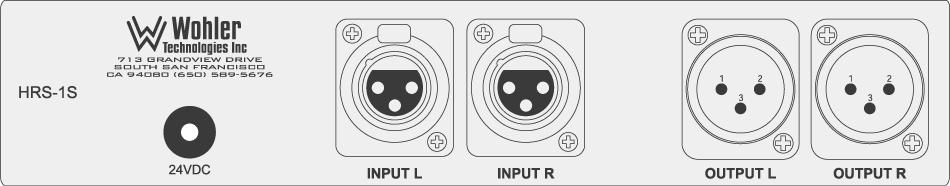

  • 2 balanced analog Inputs with loop-through (1 stereo)
  • 95dB SPL at 2 feet (0.6m)
  • Premium quality drivers and power amplifiers
  • Headphone jack mutes speakers

BENEFITS:

  • Thorough magnetic shielding for placement next to sensitive equipment.
  • Extended frequency response and low distortion
  • Electronic cancellation of bass frequencies provides audible indication of phase/polarity problems.
  • Incredibly compact, fits almost anywhere, 1/2 rack wide (8.5”), 1RU high.
  • Quick and simple installation
  • Focused sound reduces adjacent bay crosstalk

Options

No options available.

A-V Specs

Spkr Power OutputRMS Each Side: 5W Continuous/10W Peak;RMS Bass: 10W Continuous/20W Peak
Peak Acoustic Output @ 2 feet95 dB SPL @ 2 ft
AES Input Sampling Rate48 kHZ
Analog Input Impedance40 kOhms balanced
Frequency Response80 Hz - 16 kHz (+/-7 dB); (-10 dB @ 50 Hz, 22 kHz)
Hum and NoiseBetter than -68 dB below full output

Physical Specs

Rack Height1RU
Power Consumption35 Watts
Power SupplyExternal 24VDC/3A to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Dimension Width8.5" (218mm)
Dimension Height1.75" (45mm)
Dimension Depth7.5" (191mm)
Net Weight7.0 lbs (3.2 kg)
Shipping Weight7.0 lbs (3.2 kg)
Shipping Dimensions17 × 14 × 6 in (LxWxH)

Support

Looking for software updates? Click here.

Reporting an issue? Click here.

Features

Signal Input x
Signal Output x
Audio Specifications
Spkr Power Output RMS Each Side: 5W Continuous/10W Peak;RMS Bass: 10W Continuous/20W Peak
Peak Acoustic Output @ 2 feet 95 dB SPL @ 2 ft
AES Input Sampling Rate 48 kHZ
Analog Input Impedance 40 kOhms balanced
Frequency Response 80 Hz - 16 kHz (+/-7 dB); (-10 dB @ 50 Hz, 22 kHz)
Hum and Noise Better than -68 dB below full output
Video Specifications
Features
Interfacing
Physical
Dimension Depth 7.5" (191mm)
Rack Height 1RU
Dimension Height 1.75" (45mm)
Dimension Width 8.5" (218mm)
Net Weight 7.0 lbs (3.2 kg)
Power Consumption 35 Watts
Power Supply External 24VDC/3A to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Shipping Weight 7.0 lbs (3.2 kg)
