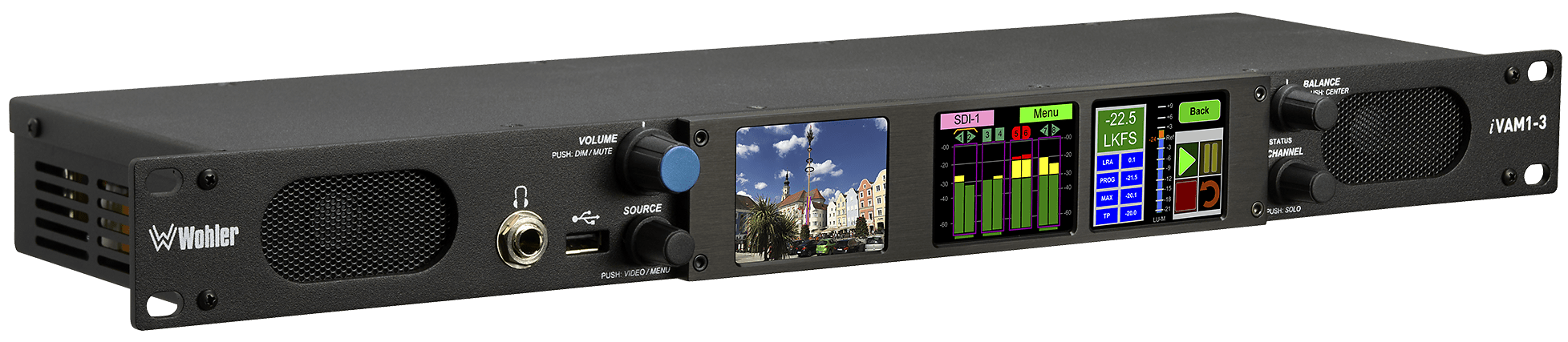

iVAM1-3 SDI, AES & Analog LCD monitor

Order Number 8121-0100

3G SDI, AES3 & Analog Video/Audio LCD Monitor with Optional Signal Upgrades for ST-2110, ST-2022, & MADI & AES3. 1RU. Touch-capable. Video, meters & loudness measurement.

Audio Monitor Video Monitor 3G/HD/SD-SDI Analog AES3 MADI64 (option) ST-2110 (option) ST-2022 (option) Fiber Optic (option) Level Meters Loudness Measurement Remote User Interface Touchscreen Panel Interface USB Socket Headphone Socket Speakers API SFP Socket Made In USA

An LCD Monitor that provides Value for Money!

The all new iVAM1-3 represents a well featured, easy to use, competitively priced 16 channel video and audio monitor which comes standard with 3G-SDI and Analog inputs and includes Loudness measurement and phase status.  License other signal formats and processing options, including AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.

Flexible. Adaptable. Future Proof.

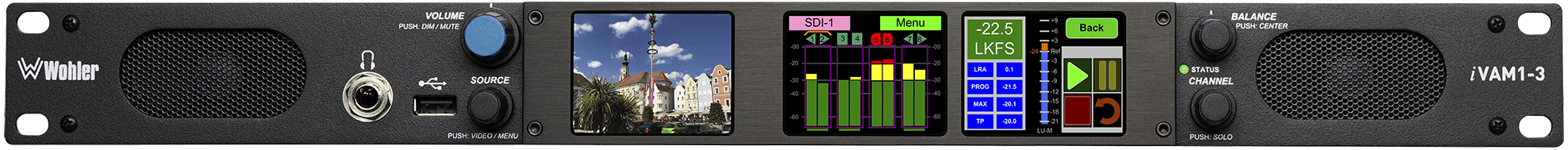

iVAM1-3 is designed to be easy to operate, providing access to both video and meters, as well as loudness and other data.  The unit comes standard with Analog and 3G-SDI but has options for additional signals, including ST-2110, ST-2022, AES3, Dante, Ravenna & MADI64.  The touch screen front panels make the unit easy to use, easy to operate, and easy to configure for your particular purpose.  Four rotary knobs supplement the touch controls and provide fast and easy access to volume, balance, signal source or presets, and channel selection. A front mounted USB port is provided for software updates to support new and emerging technologies. All iAM Series monitors are built with an onboard web server.

The iVAM1-3 is the perfect solution for any application that requires a compact 1U unit and superior performance characteristics for the purpose of monitoring an evolving range of professional signals.

FEATURES & BENEFITS:

  • Video or audio monitoring (up to 16 channels) from multiple sources
  • Up to 64 presets
  • Optional Output Routing enables the flexibility to route input signals to various outputs
  • 2 x 3G SDI Inputs on BNC; 1 x 3G SDI Output of selected source on BNC
  • Optional I/O for SMPTE 2110 or SMPTE 2022 via SFP, AES3 on HD-15 (incl selected audio source converted to AES3 out), & MADI via BNC (looped out)
  • HDMI Output of the monitored video source is included as standard
  • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
  • Option Cards for AoIP or an additional 8 channels of analog inputs and outputs
  • Software upgrades via USB or network.
  • APIs included for remote control

Want a 2U unit with larger screens and bigger sound?  See our iVAM2-2.



Signal Licensing Options (software only, no hardware)
OPT-AES 829080 Enable Monitoring of 4 AES3 Input Pairs.
OPT-MADI 829092 Enable Monitoring of 1 x MADI64 input via BNC with 1 looped output
Option Cards for Signal I/O and/or Processing (includes hardware)
OPT-DANTE (iVAM) 829171 Enable hitless (redundant) 2022-7 monitoring from up to a 64ch Dante Input as well as 2110-30. Hardware card with activation key.
OPT-RAVENNA 64 (iVAM) 829172 Enable hitless (redundant) 2022-7 monitoring from up to a 64ch Ravenna / AES67 Input as well as 2110-30. Hardware card with activation key.
OPT-ANLG/TOS (iVAM) 829170 Enable monitoring of 8 analog channels on DB-25. Hardware card with software activation key. Includes Optical TOSLINK input.
Small form-factor pluggable (SFP) Options
SFP-2110 w/Ember+
SFP-2110 w/NMOS
829086
829086-1
SMPTE 2110 receiver, Multi-Mode 850 NM, LC (fiber) Connectors. SFP Module with software activation key.
SFP-2022-6 829088 SMPTE 2022-6 receiver, Multi-Mode 850 NM, LC (fiber) Connectors. SFP Module with software activation key. Use emSET to configure SFP.
SFP-2110 w/Ember+ + 2022-6
SFP-2110 w/NMOS + 2022-6
829087
829087-1
SMPTE 2110 or 2022-6 receiver, Multi-Mode 850 NM, LC (fiber) Connectors. SFP Module with software activation key. Use emSET to configure SFP.
SFP-SDI 829089 3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. SFP Module with sfw activation key. Only purchase if 3rd SDI I/P is required.
SFP-SDI-Fiber 829084 3G/HD-SD-SDI/ASI video SFP optical input; LC (fiber) Connectors. Single-Mode Receiver, Medium Haul, Non-MSA, no output; SFP with software activation key
SFP-MADI-MM-Fiber 829081 MADI optical fiber receiver; Multi-Mode, LC (fiber) Connectors. SFP Module with software activation key.
SFP-MADI-SM-Fiber 829082 MADI optical fiber receiver; Single-Mode, LC (fiber) Connectors. SFP Module with software activation key.

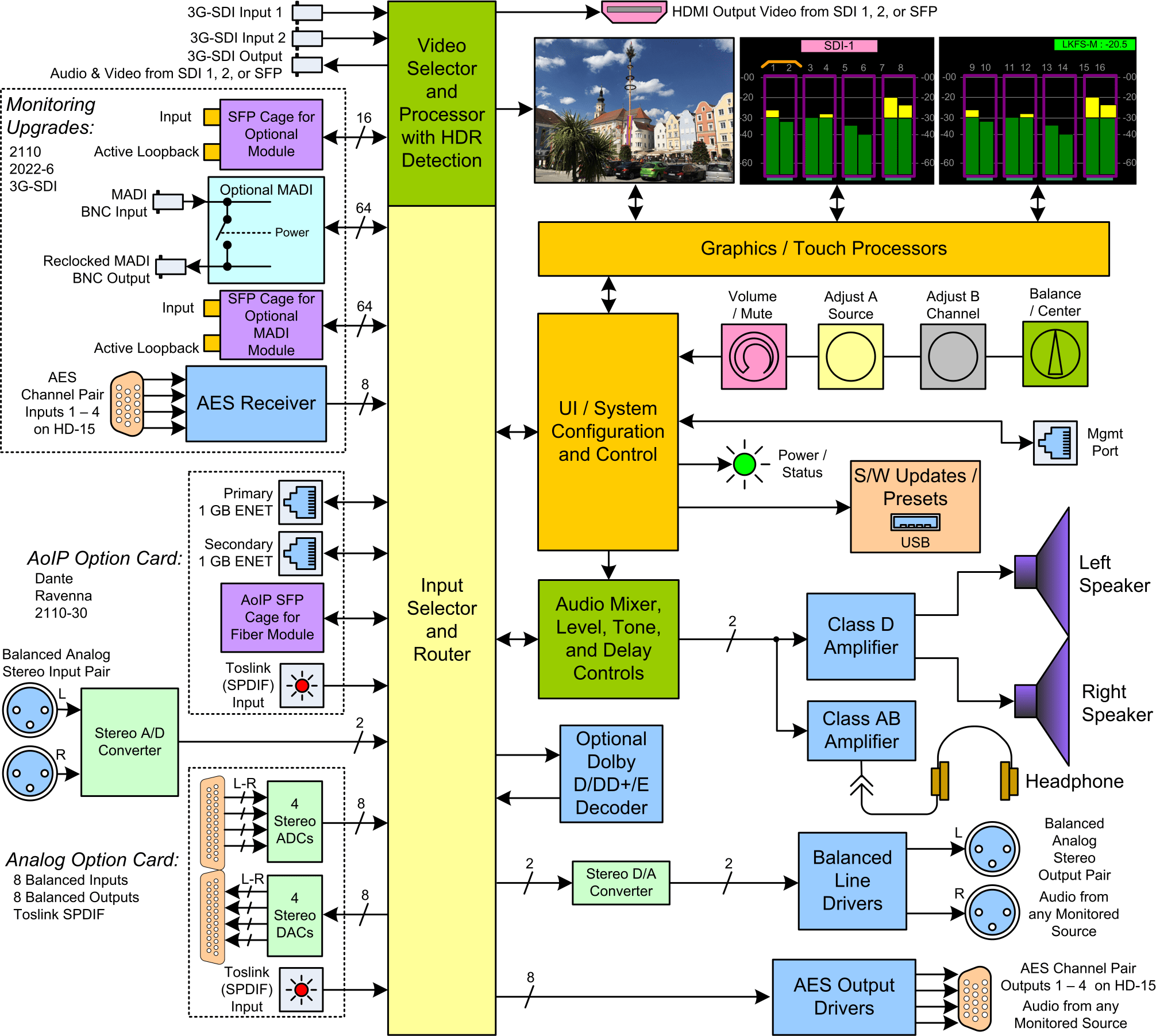

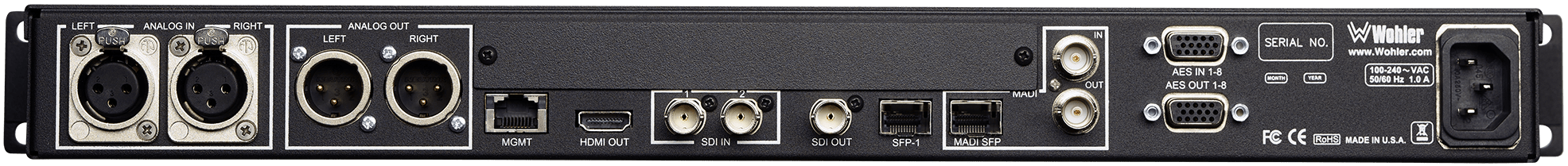

SDI Inputs2 x 3G/HD/SD-SDI inputs on BNC
SDI Outputs1 x Selected Audio/Video source on BNC
SMPTE 2110 InputSFP-2110 (829086): SMTPE 2110 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP.
SMPTE 2022 InputSFP-2022 (829088): SMPTE 2022-6 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP.
AES3 InputOPT-AES (829080): Enables decoding and monitoring of 4 AES input pairs on HD-15
AES3 OutputOPT-AES (829080): 4 AES output pairs on HD-15 from any source
Analog Input2 Analog inputs on XLR
Analog Output2 on XLR of mix to speakers
MADI InputSoftware Processing Options: OPT-MADI (829092) Enables decoding and monitoring of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
MADI OutputSoftware Processing Options: OPT-MADI (829092) Enables loop-through output of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
Fiber InputSFP-SDI-Fiber (829084): 3G/HD/SD-SDI video SFP optical input: LC (fiber) connectors; Single-Mode receiver, Medium Haul, non-MSA, no output; with software activation key
HDMI OutputYes. From SDI 1, 2 or SFP
SpeakersYes
Power OutputRMS Each Side: 5W Continuous/12W Peak
Peak Acoustic Output @ 2 feet90 dB SPL @ 2ft
AES Input Sampling Rate48 kHZ
Analog Input Impedance40k Ohms balanced
Frequency Response150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
Hum and NoiseBetter than -68 dB below full output
Meter DynamicsSimultaneous VU & PPM
Meter ScaleSimultaneous VU & PPM
Diagonal Display Size2.4" (60 mm)
Display Resolution (HxV)320Hx240V
Display TypeCapacitive LCD Touchscreen x 3
Number of screens3 (1 Video/Graphics, 2 Graphics Only)
Viewing Angle160 (H) x 160 (V)
Level MetersOn-Screen for up to 16 Channels
Audio Channels (max)16
PhaseYes
PresetsYes
Front Panel ControlsVolume Encoder; Balance Encoder; Source Select Encoder; Channel Select Encoder; Touch-capable screen
Remote User InterfaceYes
TouchscreenYes
Headphone JackYes
Ethernet GbEYes
USB PortYes
SFP CageYes, 1 x SDI SFP, 1 x MADI SFP
Rack Height1RU
Power Consumption65 Watts typical
Power SupplyInternal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved.
Additional OptionsAvailable API's: Get Available Presets; Get Preset Information; Get Active Preset; Apply Preset; Set Mute/Unmute Clusters; Set Solo Cluster; Set Solo Channel; Source Select
Dimension Width19.0" (483mm)
Dimension Height1.75" (45mm)
Dimension Depth5.5" (140mm)
Net Weight7.5 lbs. (3.4 kg)
Shipping Dimensions23 × 12 × 6 in (LxWxH)

Looking for software updates? Click here.

Reporting an issue? Click here.

Features

Signal Input 2 x 3G/HD/SD-SDI inputs on BNC x SDI Inputs, OPT-AES (829080): Enables decoding and monitoring of 4 AES input pairs on HD-15 x AES3 Input, 2 Analog inputs on XLR x Analog Input, Software Processing Options: OPT-MADI (829092) Enables decoding and monitoring of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors x MADI Input, SFP-SDI-Fiber (829084): 3G/HD/SD-SDI video SFP optical input: LC (fiber) connectors; Single-Mode receiver, Medium Haul, non-MSA, no output; with software activation key x Fiber Input, SFP-2110 (829086): SMTPE 2110 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP. x SMPTE 2110 Input, SFP-2022 (829088): SMPTE 2022-6 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP. x SMPTE 2022 Input
Signal Output 1 x Selected Audio/Video source on BNC x SDI Outputs, OPT-AES (829080): 4 AES output pairs on HD-15 from any source x AES3 Output, 2 on XLR of mix to speakers x Analog Output, Yes. From SDI 1, 2 or SFP x HDMI Output, Software Processing Options: OPT-MADI (829092) Enables loop-through output of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors x MADI Output
Audio Specifications
Speakers Yes
Power Output RMS Each Side: 5W Continuous/12W Peak
Peak Acoustic Output @ 2 feet 90 dB SPL @ 2ft
AES Input Sampling Rate 48 kHZ
Analog Input Impedance 40k Ohms balanced
Frequency Response 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
Hum and Noise Better than -68 dB below full output
Meter Dynamics Simultaneous VU & PPM
Meter Scale Simultaneous VU & PPM
Video Specifications
Diagonal Display Size 2.4" (60 mm)
Display Resolution (HxV) 320Hx240V
Display Type Capacitive LCD Touchscreen x 3
Number of screens 3 (1 Video/Graphics, 2 Graphics Only)
Viewing Angle 160 (H) x 160 (V)
Features
Level Meters On-Screen for up to 16 Channels
Audio Channels (max) 16
Phase Yes
Presets Yes
Interfacing
Ethernet GbE Yes
Front Panel Controls Volume Encoder; Balance Encoder; Source Select Encoder; Channel Select Encoder; Touch-capable screen
Headphone Jack Yes
Remote User Interface Yes
SFP Cage Yes, 1 x SDI SFP, 1 x MADI SFP
Touchscreen Yes
USB Port Yes
Physical
Dimension Depth 5.5" (140mm)
Rack Height 1RU
Dimension Height 1.75" (45mm)
Dimension Width 19.0" (483mm)
Net Weight 7.5 lbs. (3.4 kg)
Power Consumption 65 Watts typical
Power Supply Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved.
Shipping Weight 7.6 lbs (3.4 kg)
Other
Additional Options Available API's: Get Available Presets; Get Preset Information; Get Active Preset; Apply Preset; Set Mute/Unmute Clusters; Set Solo Cluster; Set Solo Channel; Source Select
