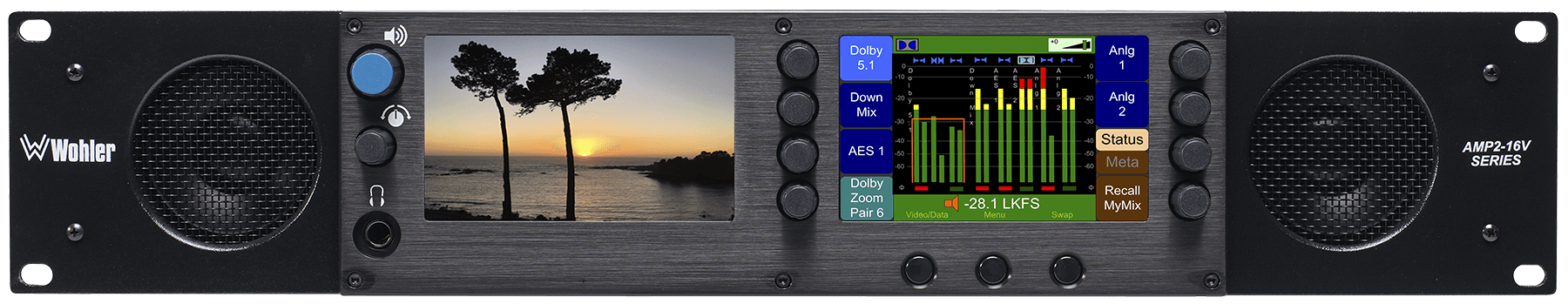

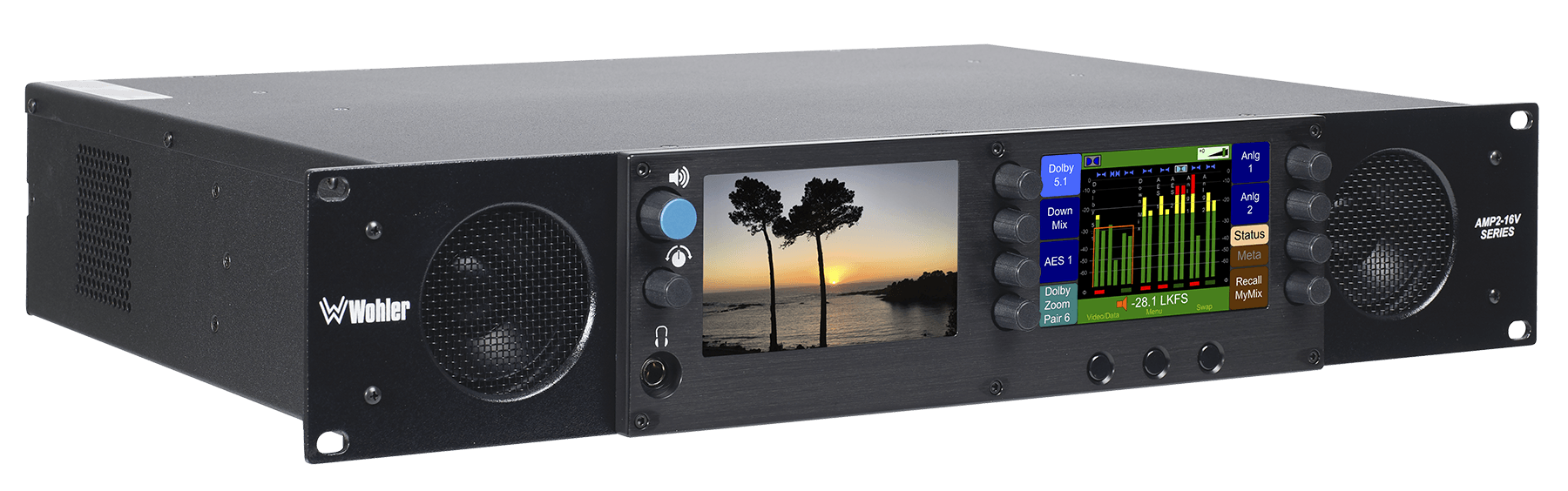

AMP2-E16V-M

The World’s Finest Audio/Video Monitor™. Modular upgradability. Includes Dolby D/E/DD+ & 1 x 3G/HD/SD-SDI module. 2RU.

Audio Monitor Video Monitor 3G/HD/SD-SDI Analog (option) AES3 Fiber Optic (option) Level Meters Phase Configuration Presets Dolby Audio Decoding Loudness Measurement Audio Mixing Headphone Socket Speakers Made In USA

Description

The leading choice of broadcasters worldwide, Wohler’s AMP2-16V could be the last audio monitor you will ever need.  The open architecture design, superb quality, upgradeability and ease of use is why broadcasters consistently choose the AMP2-16V Series monitors for their most demanding applications.



Since we invented the in-rack audio monitor, we have not stopped improving it – and the world’s best selling and most powerful monitor now offers an even broader set of critical audio management tools.  Monitor and analyze all of your audio and video feeds from one compact, convenient and easy to use workstation.  It’s the best we’ve ever designed and built.

Features and Benefits



BENEFITS:

  • Full 16 channels of simultaneous, mixed-format audio metering and management
  • Customize two large high resolution LCD screens to display application specific audio/video data
  • 32 presets enable complete reconfiguration of the entire unit with a single button press
  • Added support for SMPTE2020 metadata handling, audio delay and loudness monitoring
  • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
  • Mix, sum and route program audio live without the need for separate audio console
  • Save and copy system presets to other units via Ethernet/Serial connection to PC

FEATURES:

  • Monitor, mix, route and fully manage SDI embedded audio, AES, analog or even TOSLINK sources
  • Ability for re-embedded audio in SDI output
  • Dual LCD screens with auto-detecting 3G/HD/SD-SDI video
  • 16 Hot Keys enable one touch access to critical functions
  • Fully-customizable level meters including scale, color, range, thresholds, and more
  • Single screen view of 16 channel meters/clusters, phase indication, loudness, Dolby D, E, and DD+ presence and hot key assignments
  • Menu lockout function and redundant power supplies for secure transmission chain operation (optional)
  • “Super-Pair” feature offers additional channel pair (17, 18) to monitor additional two intercom or PL intercom channels

Options

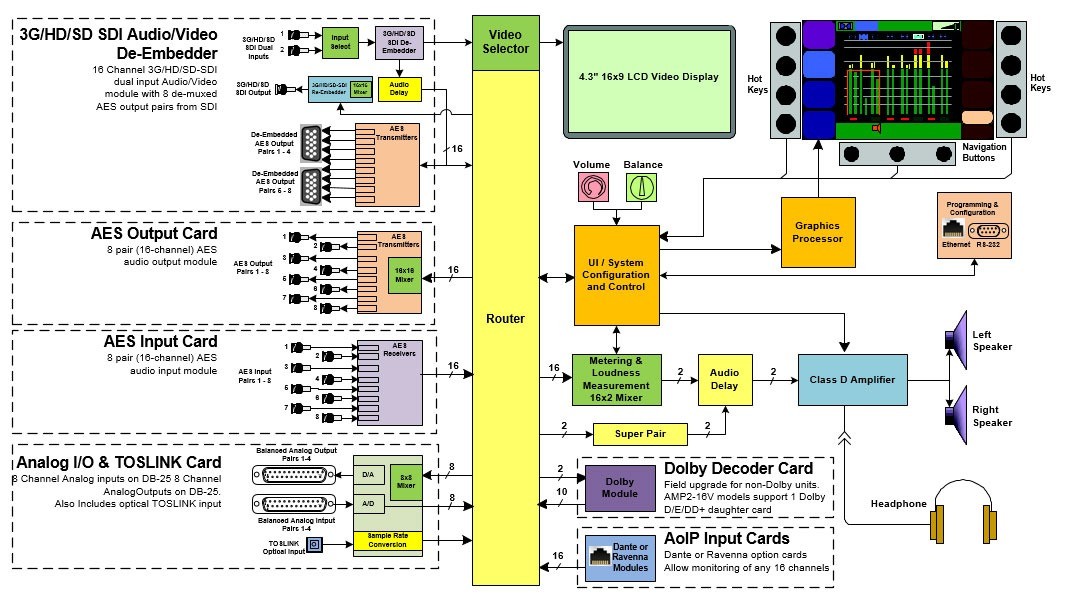

Option Cards for Signal I/O and/or Processing (includes hardware)
3G-SDI Input Card 829024 16 Channel 3G/HD/SD-SDI Dual Input Audio/Video Module with 8 De-Muxed AES Output Pairs from SDI
AES Input Card 829001 8 Pair (16-channel) AES Audio Input Module.
AES Output Card 829002 8 Pair (16-channel) AES Audio Output Module.
Analog w/TOSLINK Input Card 829021 8 channel Analog Inputs on DB-25. 8 Channel Analog Outputs on DB-25. Also Includes Optical TOSLINK Input.
Other Options for the AMP2-16V Series
Redundant PSU 829140 Redundant Power Supply for AMP2-16V Series.
DC Power 829068 24 DC Power for the AMP2-16V Series. Can replace main or be used as redundant supply.

A-V Specs

Spkr Power OutputRMS Each Side: 15W Continuous/30W Peak
Peak Acoustic Output @ 2 feet104 dB SPL @ 2 ft
Frequency Response60 Hz - 16 kHz (+/-5 dB); (-10 dB @ 50 Hz, 20 kHz)
Hum and NoiseBetter than -75 dB below full output
Meter DynamicsConfigurable up to simultaneous VU & PPM
Number of screens1
Diagonal Display Size4.3 Inch
Display Resolution (HxV)800 x 480

Physical Specs

Rack Height2RU
Power Consumption250 Watts Max
Power SupplyInternal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
Dimension Width19.0" (483mm)
Dimension Height3.5" (89mm)
Dimension Depth14.5" (369mm)
Net Weight21.0 lbs (9.6 kg)
Shipping Weight21.0 lbs (9.6 kg)
Shipping Dimensions24.0 × 19.5 × 7.5 in (LxWxH)

Support

Looking for software updates? Click here.

Reporting an issue? Click here.

Features

Signal Input x , x
Signal Output x , x
Audio Specifications
Spkr Power Output RMS Each Side: 15W Continuous/30W Peak
Peak Acoustic Output @ 2 feet 104 dB SPL @ 2 ft
Frequency Response 60 Hz - 16 kHz (+/-5 dB); (-10 dB @ 50 Hz, 20 kHz)
Hum and Noise Better than -75 dB below full output
Meter Dynamics Configurable up to simultaneous VU & PPM
Video Specifications
Diagonal Display Size 4.3 Inch
Display Resolution (HxV) 800 x 480
Number of screens 1
Features
Interfacing
Physical
Dimension Depth 14.5" (369mm)
Rack Height 2RU
Dimension Height 3.5" (89mm)
Dimension Width 19.0" (483mm)
Net Weight 21.0 lbs (9.6 kg)
Power Consumption 250 Watts Max
Power Supply Internal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
Shipping Weight 21.0 lbs (9.6 kg)
Other
Processing
