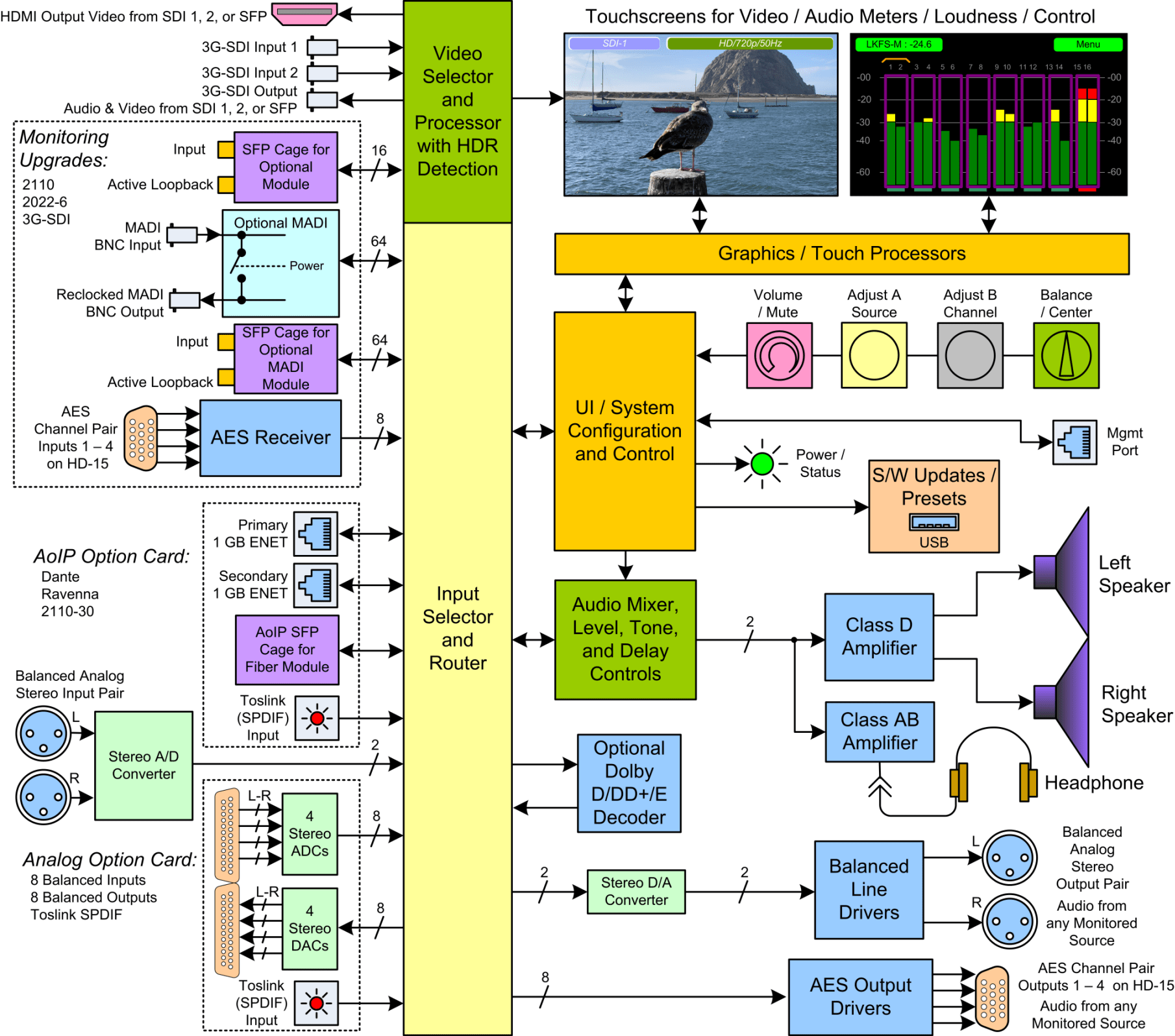

  • iVAM2-2 SDI & 2110 video-audio monitor block diagram
  • iVAM2-2 SDI & 2110 video-audio monitor isometric image

iVAM2-2 SDI & 2110 Video-Audio monitor

Order Number 8121-0200

SDI & 2110 Video-Audio Monitor with SDI & Analog plus optional upgrades for 2110, 2022, MADI, AES3, Dante & Ravenna. 2U. Video, meters & loudness.

Audio Monitor Video Monitor 3G/HD/SD-SDI Analog AES3 MADI64 (option) ST-2110 (option) ST-2022 (option) Fiber Optic (option) Level Meters Loudness Measurement Remote User Interface Touchscreen Panel Interface USB Socket Headphone Socket Speakers API SFP Socket Made In USA

An SDI & 2110 Video Audio Monitor LCD Monitor that provides Value for Money!

The all new iVAM2-2 represents a well featured and competitively priced video and audio monitor.  With fast and easy simultaneous monitoring of audio and video, this unit comes standard with 3G-SDI and Analog inputs.  License other signal formats as and when needed, either initially or after purchase.

Flexible. Adaptable. Future Proof.

iVAM2-2 is designed to be easy to operate, providing access to both video and meters, as well as loudness and other data.  The unit comes standard with Analog and 3G-SDI but has options for additional signals, including ST-2110, ST-2022, AES3, Dante, Ravenna & MADI64.  The touch screen front panels make the unit easy to use, easy to operate, and easy to configure for your particular purpose.  Four rotary knobs supplement the touch controls and provide fast and easy access to volume, balance, signal source and channel selection. A front mounted USB port is provided for software updates to support new and emerging technologies. All iAM Series monitors are built with an onboard web server.

The iVAM2-2 is the perfect solution for any application that requires a compact unit and superior performance characteristics for the purpose of monitoring an evolving range of professional signals.

FEATURES & BENEFITS:

  • SDI & 2110 video-audio monitor with options for Audio over IP, MADI and 2022.
  • Video or audio monitoring (up to 16 channels) from multiple sources
  • Up to 64 presets
  • 2 x 3G SDI Inputs on BNC; 1 x 3G SDI Output of selected source on BNC
  • Optional I/O for SMPTE 2110 or SMPTE 2022 via SFP, AES3 on HD-15 (incl selected audio source converted to AES3 out), & MADI via BNC (looped out)
  • HDMI Output of the monitored video source is included as standard
  • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
  • Option Cards for AoIP or an additional 8 channels of analog inputs and outputs
  • Software upgrades via USB or network.
  • APIs included for remote control

Only have 1U in space?  See our iVAM1-1.

Click Here to view our short How-To video that goes through basic operations.



Signal & Processing Options (software only, no hardware)
OPT-AES 829080 Enable Monitoring of 4 AES3 Input Pairs.
OPT-MADI 829092 Enable Monitoring of 1 x MADI64 input via BNC with 1 looped output.
OPT-OUTPUT-ROUTING 829159 Enables the flexibility to route input signals to various outputs.
Option Cards for Signal I/O and/or Processing (includes hardware)
OPT-DANTE (iVAM) 829171 Enable monitoring from up to a 64ch Dante Input. Hardware card with activation key.
OPT-RAVENNA 64 (iVAM) 829172 Enable monitoring from up to a 64ch Ravenna / AES67 Input. Hardware card with activation key.
OPT-ANLG/TOS (iVAM) 829170 Enable monitoring of 8 analog channels on DB-25. Hardware card with software activation key. Includes Optical TOSLINK input.
Small form-factor pluggable (SFP) Options
SFP-2110 w/Ember+
SFP-2110 w/NMOS
829086
829086-1
SMPTE 2110 receiver, Multi-Mode 850 NM, LC (fiber) Connectors. SFP Module with software activation key.
SFP-2022-6 829088 SMPTE 2022-6 receiver, Multi-Mode 850 NM, LC (fiber) Connectors. SFP Module with software activation key. Use emSET to configure SFP.
SFP-2110 w/Ember+ + 2022-6
SFP-2110 w/NMOS + 2022-6
829087
829087-1
SMPTE 2110 or 2022-6 receiver, Multi-Mode 850 NM, LC (fiber) Connectors. SFP Module with software activation key. Use emSET to configure SFP.
SFP-SDI 829089 3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. SFP Module with sfw activation key. Only purchase if 3rd SDI I/P is required.
SFP-SDI-Fiber 829084 3G/HD-SD-SDI/ASI video SFP optical input; LC (fiber) Connectors. Single-Mode Receiver, Medium Haul, Non-MSA, no output; SFP with software activation key
SFP-MADI-MM-Fiber 829081 MADI optical fiber receiver; Multi-Mode, LC (fiber) Connectors. SFP Module with software activation key.
SFP-MADI-SM-Fiber 829082 MADI optical fiber receiver; Single-Mode, LC (fiber) Connectors. SFP Module with software activation key.



SDI Inputs2 x 3G/HD/SD-SDI inputs on BNC
SDI Outputs1 x Selected Audio/Video source on BNC
SMPTE 2110 InputSFP-2110 (829086): SMTPE 2110 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP.
SMPTE 2022 InputSFP-2022 (829088): SMPTE 2022-6 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP.
AES3 InputOPT-AES (829080): Enables decoding and monitoring of 4 AES input pairs on HD-15
AES3 OutputOPT-AES (829080): 4 AES output pairs on HD-15 from any source
Analog Input2 Analog inputs on XLR
Analog Output2 on XLR of mix to speakers
MADI InputSoftware Processing Options: OPT-MADI (829092) Enables decoding and monitoring of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
MADI OutputSoftware Processing Options: OPT-MADI (829092) Enables loop-through output of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
Fiber InputSFP-SDI-Fiber (829084): 3G/HD/SD-SDI video SFP optical input: LC (fiber) connectors; Single-Mode receiver, Medium Haul, non-MSA, no output; with software activation key
HDMI OutputYes. From SDI 1, 2 or SFP
SpeakersYes
Power OutputRMS Each Side: 15W Continuous/30W Peak
Peak Acoustic Output @ 2 feet104 dB SPL @ 2ft
AES Input Sampling Rate48 kHZ
Analog Input Impedance40k Ohms balanced
Frequency Response150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
Hum and NoiseBetter than -75 dB below full output
Meter DynamicsSimultaneous VU & PPM
Meter ScaleSimultaneous VU & PPM
Diagonal Display Size4.3" (109 mm) LCD Capacitive Touchscreen x 2
Display Resolution (HxV)480Hx272V
Display TypeCapacitive LCD Touchscreen
Number of screens2 (1 Video/Graphics, 1 Graphics Only)
Viewing Angle160 (H) x 160 (V)
Level MetersOn-Screen for up to 16 Channels
Audio Channels (max)16
PhaseYes
PresetsYes
Front Panel ControlsVolume Encoder; Balance Encoder; Source Select Encoder; Channel Select Encoder; Touch-capable screen
Remote User InterfaceYes
TouchscreenYes
Headphone JackYes
Ethernet GbEYes
USB PortYes
SFP CageYes, 1 x SDI SFP, 1 x MADI SFP
Rack Height2RU
Power Consumption60 Watts typical
Power SupplyInternal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved.
Additional OptionsAvailable API's: Get Available Presets; Get Preset Information; Get Active Preset; Apply Preset; Set Mute/Unmute Clusters; Set Solo Cluster; Set Solo Channel; Source Select
Dimension Width19.0" (483mm)
Dimension Height3.5" (90mm)
Dimension Depth5.5" (140mm)
Net Weight12.0 lbs. (5.5 kg)
Shipping Dimensions23 × 12 × 7.5 in (LxWxH)

Looking for software updates? Click here.

Reporting an issue? Click here.

Features

Signal Input 2 x 3G/HD/SD-SDI inputs on BNC x SDI Inputs, OPT-AES (829080): Enables decoding and monitoring of 4 AES input pairs on HD-15 x AES3 Input, 2 Analog inputs on XLR x Analog Input, Software Processing Options: OPT-MADI (829092) Enables decoding and monitoring of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors x MADI Input, SFP-SDI-Fiber (829084): 3G/HD/SD-SDI video SFP optical input: LC (fiber) connectors; Single-Mode receiver, Medium Haul, non-MSA, no output; with software activation key x Fiber Input, SFP-2110 (829086): SMTPE 2110 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP. x SMPTE 2110 Input, SFP-2022 (829088): SMPTE 2022-6 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP. x SMPTE 2022 Input
Signal Output 1 x Selected Audio/Video source on BNC x SDI Outputs, OPT-AES (829080): 4 AES output pairs on HD-15 from any source x AES3 Output, 2 on XLR of mix to speakers x Analog Output, Yes. From SDI 1, 2 or SFP x HDMI Output, Software Processing Options: OPT-MADI (829092) Enables loop-through output of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors x MADI Output
Audio Specifications
Speakers Yes
Power Output RMS Each Side: 15W Continuous/30W Peak
Peak Acoustic Output @ 2 feet 104 dB SPL @ 2ft
AES Input Sampling Rate 48 kHZ
Analog Input Impedance 40k Ohms balanced
Frequency Response 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
Hum and Noise Better than -75 dB below full output
Meter Dynamics Simultaneous VU & PPM
Meter Scale Simultaneous VU & PPM
Video Specifications
Diagonal Display Size 4.3" (109 mm) LCD Capacitive Touchscreen x 2
Display Resolution (HxV) 480Hx272V
Display Type Capacitive LCD Touchscreen
Number of screens 2 (1 Video/Graphics, 1 Graphics Only)
Viewing Angle 160 (H) x 160 (V)
Features
Level Meters On-Screen for up to 16 Channels
Audio Channels (max) 16
Phase Yes
Presets Yes
Interfacing
Ethernet GbE Yes
Front Panel Controls Volume Encoder; Balance Encoder; Source Select Encoder; Channel Select Encoder; Touch-capable screen
Headphone Jack Yes
Remote User Interface Yes
SFP Cage Yes, 1 x SDI SFP, 1 x MADI SFP
Touchscreen Yes
USB Port Yes
Physical
Dimension Depth 5.5" (140mm)
Rack Height 2RU
Dimension Height 3.5" (90mm)
Dimension Width 19.0" (483mm)
Net Weight 12.0 lbs. (5.5 kg)
Power Consumption 60 Watts typical
Power Supply Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved.
Shipping Weight 12.0 lbs (5.5 kg)
Other
Additional Options Available API's: Get Available Presets; Get Preset Information; Get Active Preset; Apply Preset; Set Mute/Unmute Clusters; Set Solo Cluster; Set Solo Channel; Source Select
