eAM1-MIX-8-12G
12G-SDI & Analog Audio Monitoring & Mixer

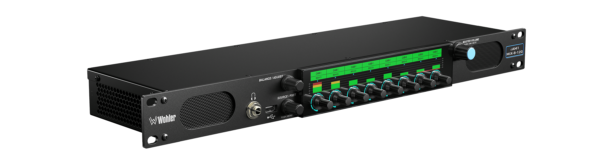

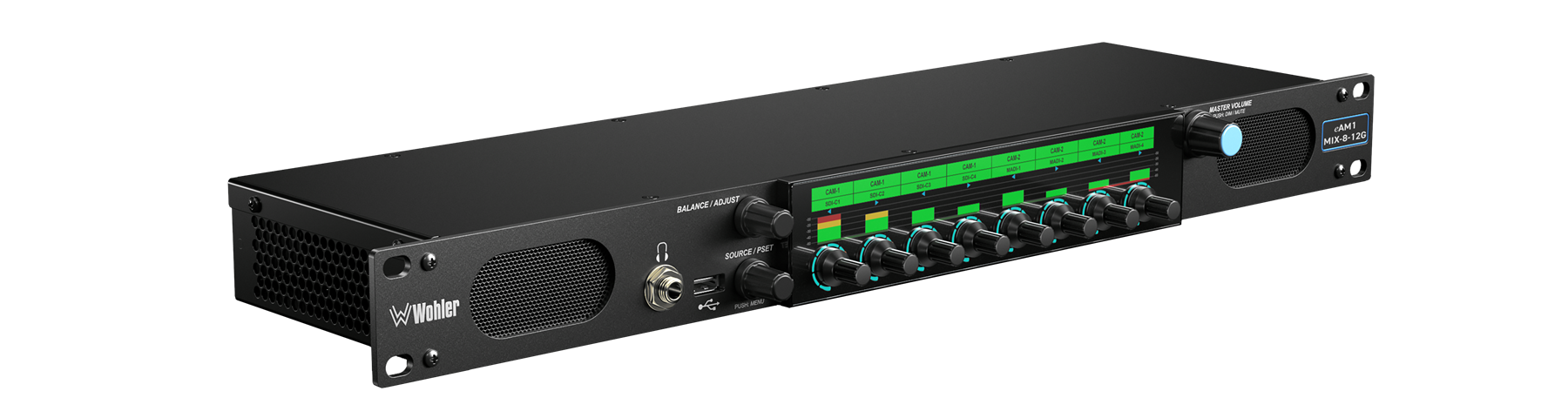

Photo 1 of 3What it does
The eAM1-MIX-8-12G provides convenient LCD touch controls complemented with rotary encoders for summing, mute and solo channels in 8 mono or stereo cluster configurations for 12G SDI audio monitoring operations. This latest version of our successful eSeries has been upgraded with the capability to monitor 12G SDI signals. As part of our eSeries product line, it is a well featured and competitively priced audio monitor and mixer. The eAM1-MIX-8-12G can be configured to operate in either single channel (8 channel) or pair mode (16 channel). 12G Monitoring on a budget. Standard features include 12G-SDI and a pair of Analog inputs and outputs. Built in web server for remote configuration. Network Capable with Remote access options: The unit includes built-in support for audio-only remote monitoring provided by our MAVRIC software applications suite. All eSeries monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.
Datasheets, manuals & software
Datasheet
Capabilities
- Loudness
- Hybrid SDI/IP
- 24/7 operation
Why it's trusted

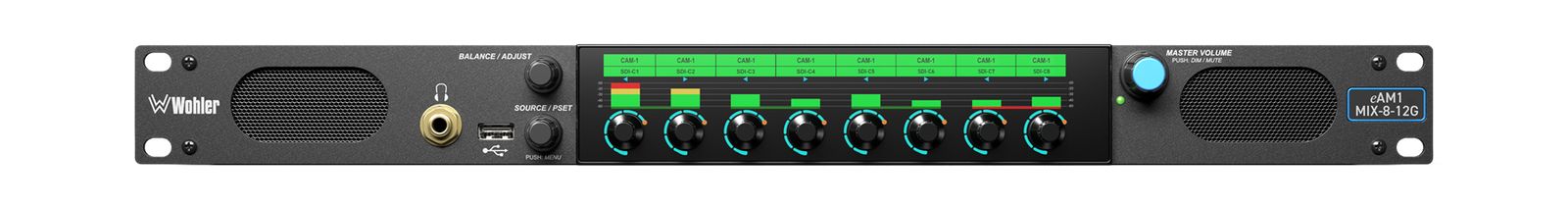

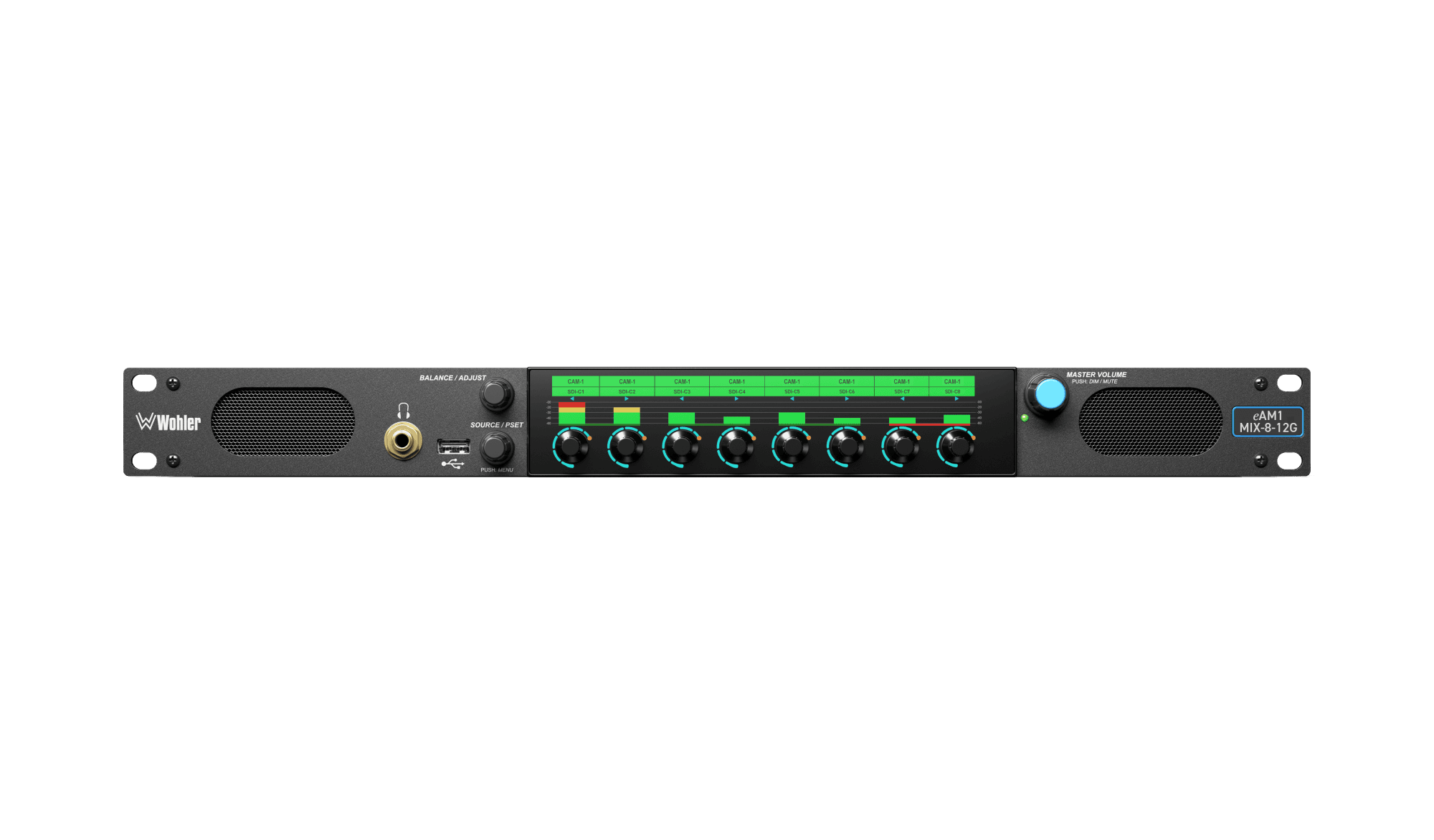

Touch LCD screen complemented with rotary encoder knobs for physical audio channel control
Master volume control that also provides a master mute/unmute
Channel names can be displayed for each input or pulled from a router
Standard I/O

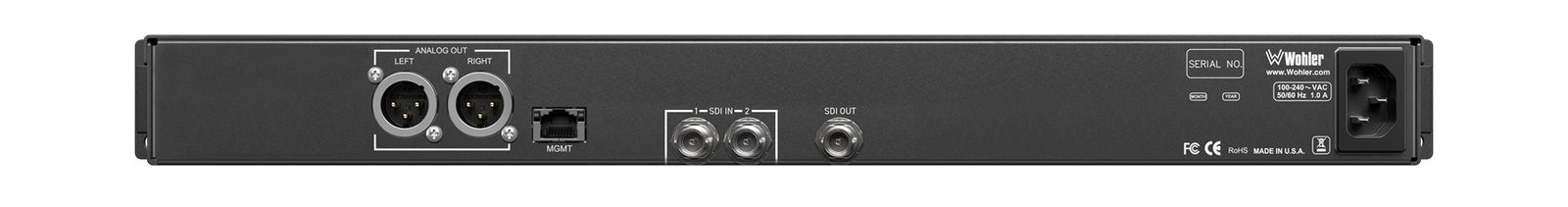

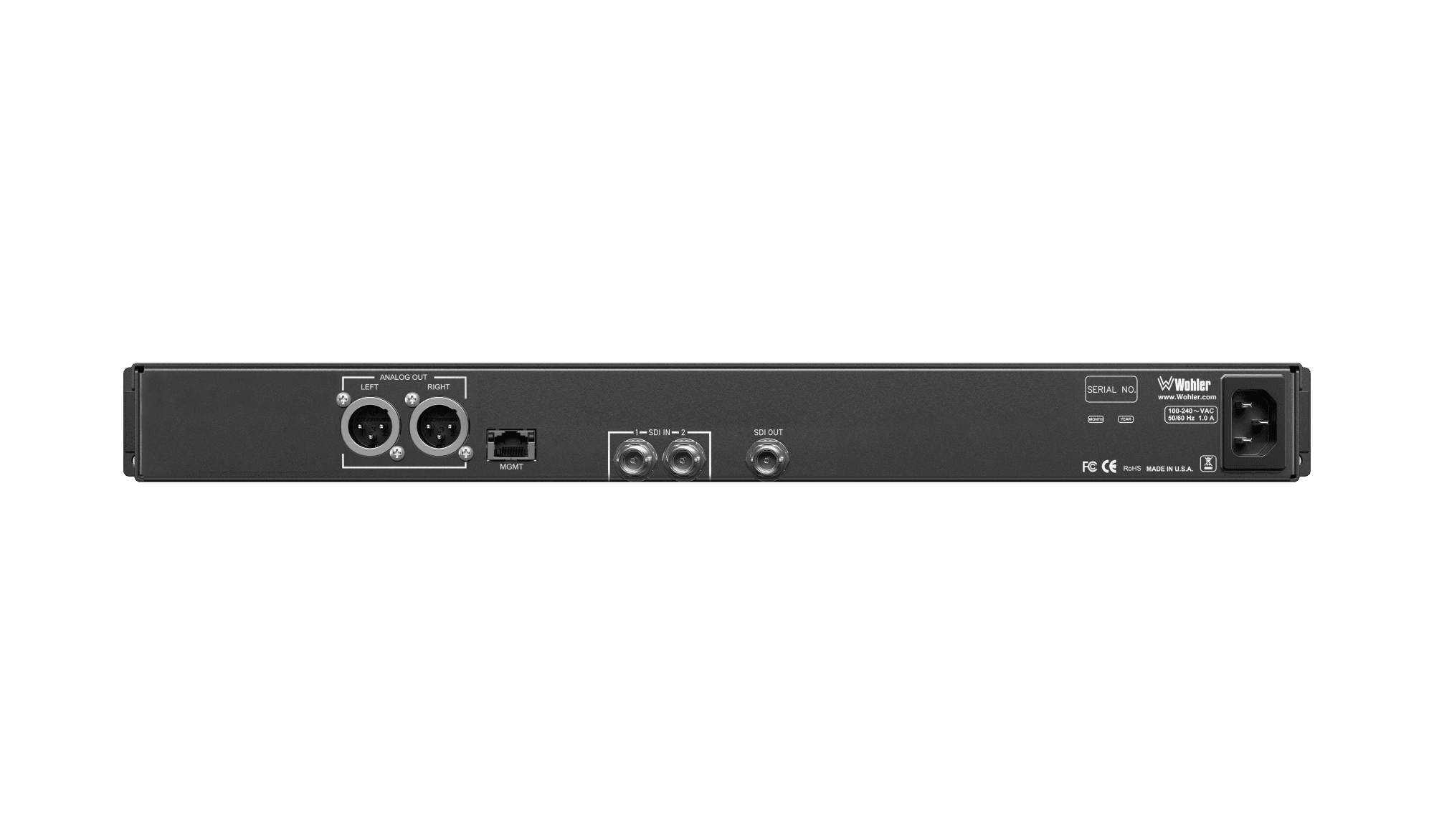

2 x 12G-SDI Inputs on BNC; 1 x 12G-SDI Output on BNC + 1 pair Analog out on XLR
Store and retrieve up to 64 presets
Built-in speakers, headphone jack, USB and Ethernet ports with APIs for remote management
Software upgradeable individually via USB or multiple units on the same network
Built-in Audio-only remote monitoring probe. Requires MAVRIC remote monitoring account
Specifications
- Dimensions (W x H x D)
- 1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
- Shipping Weight / Net Weight
- 8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)
- Power Consumption / Supply
- 65W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
- Display Type / Resolution
- 7” (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
- Viewing Angle
- 160° (H) x 160° (V)
- Audio Channels
- 8 or 16
- Hum and Noise
- Better than -68 dB below full output
- Peak Acoustic Output
- 90 dB SPL @ 2 feet
- Speaker Power Output
- 5W RMS per side, 12W Peak
- Upgrades
- Via USB or Web GUI
- APIs
- Provide easy integration with 3rd party control systems
Ready for more?
Talk to our team about specifications, availability and pricing — or how eAM1-MIX-8-12G fits into your monitoring workflow. Need a demo? Just let us know. We are here to help and will respond as soon as possible.
