SKU: 8300-0100

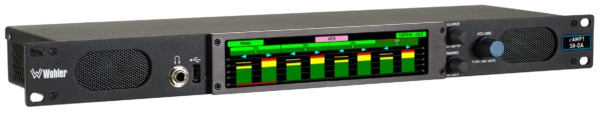

eAMP1-S8-DA

8 channel, baseband only, shallow depth, AES3 & analog audio monitor with a 7” wide touchscreen.
Data Sheet

Data Sheet

Manual

Manual

Ask a Question

Ask a Question

Support

Support

Software Update

Software Update

Request a Quote

fields marked with an * are required

eAMP1-S8-DA

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

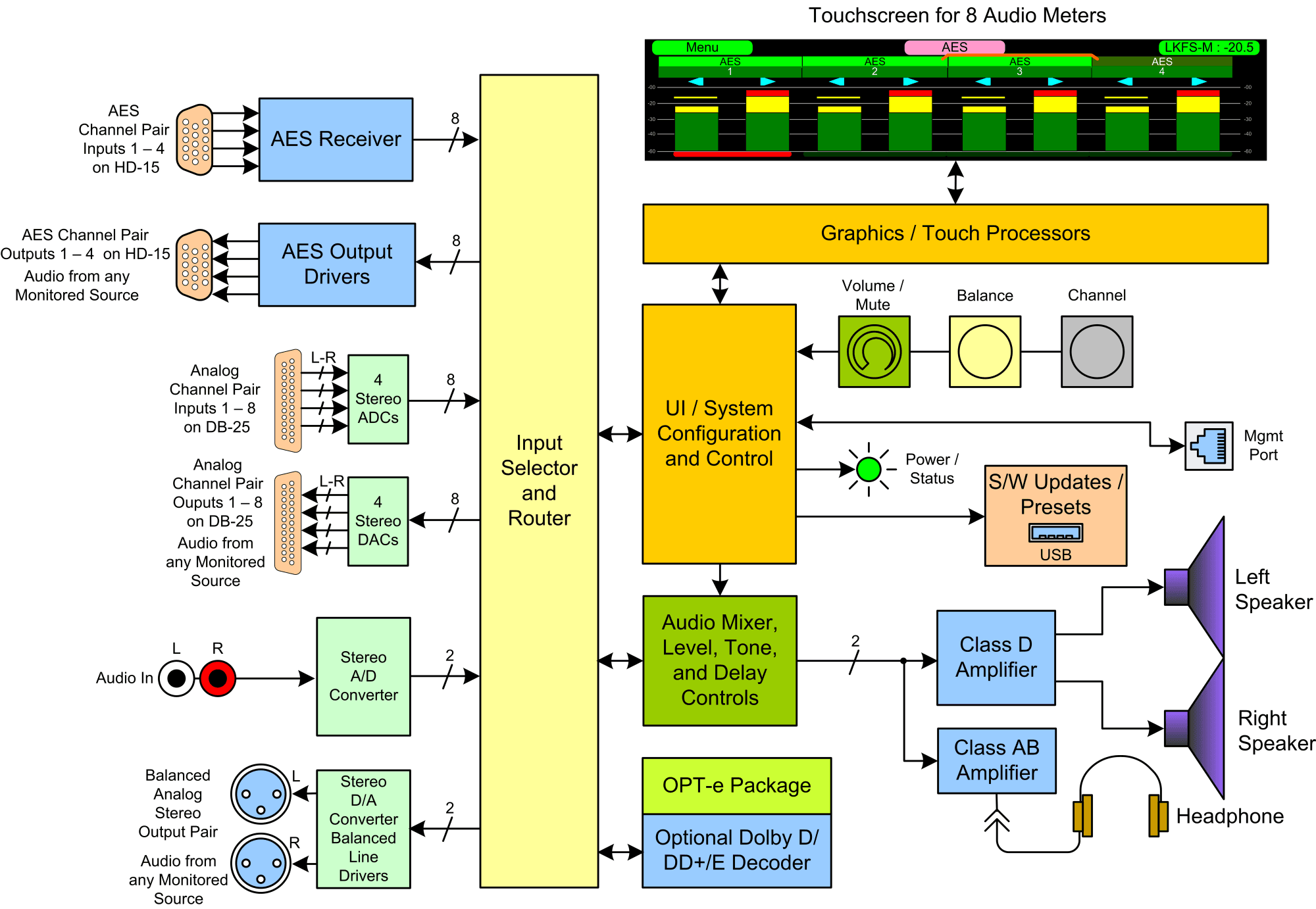

    The eAMP1-S8-DA offers fast and intuitive confidence monitoring of AES3 and analog audio sources.  Whether in the studio or on the road, this unit provides simultaneous selection and summing of the selected source. It features adjustable volume and balance controls, clear display of levels, and phase indications.

    Flexible & Adaptable

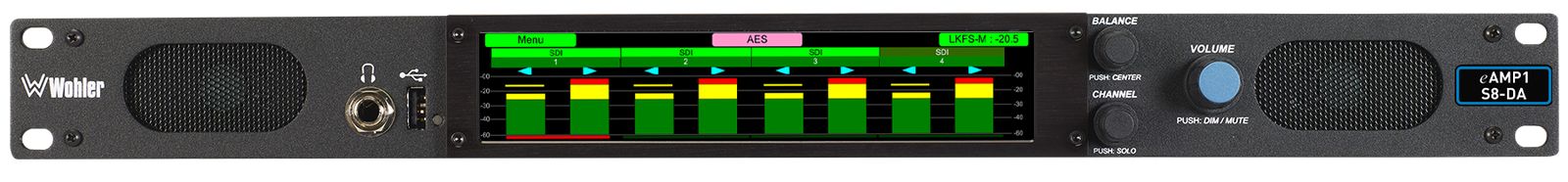

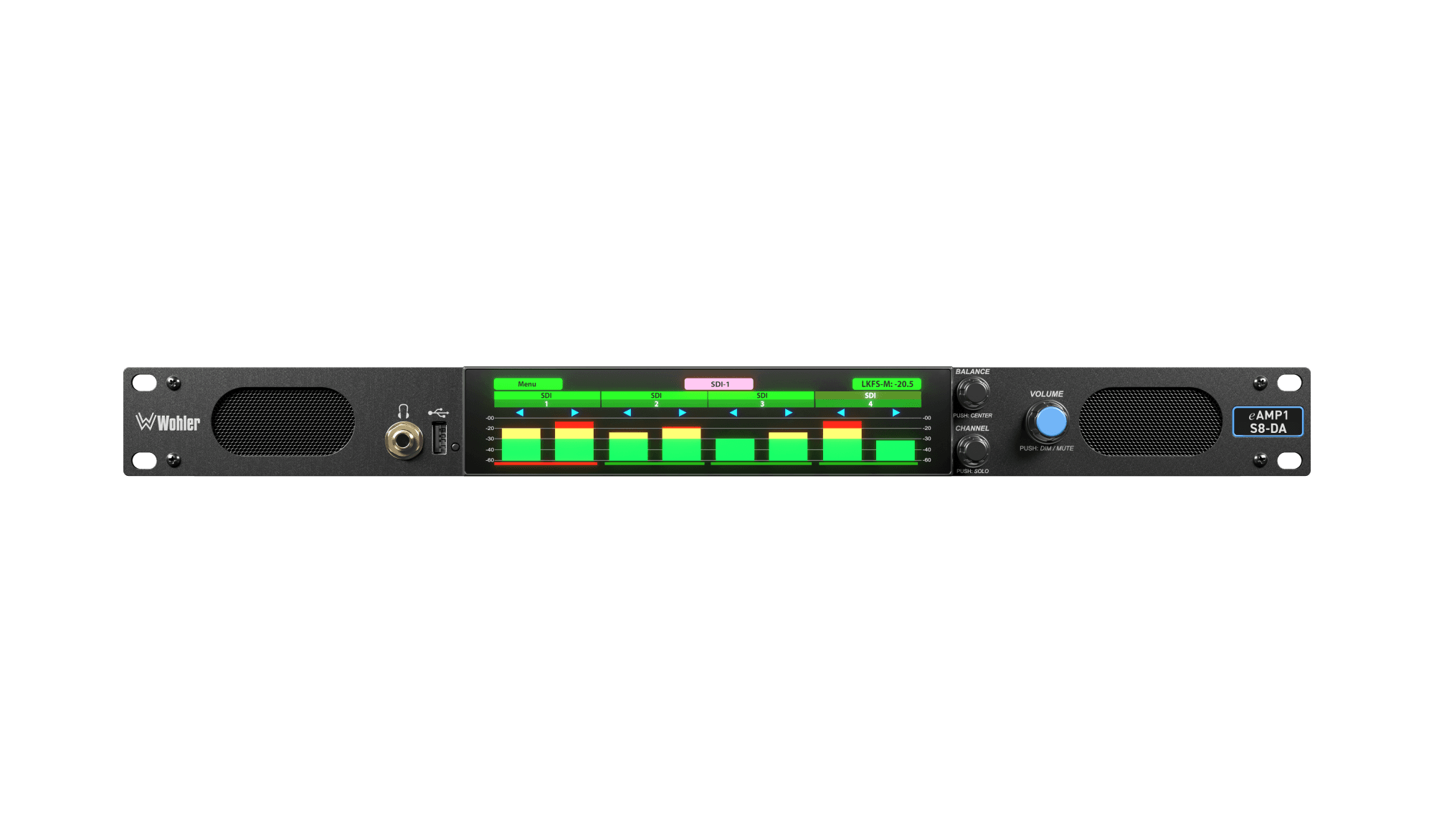

    The e AMP1-S8-DA is designed to be much easier to operate than the retired S8’s and include a wide 7” LCD touchscreen display providing fast access to input sources, meters and menus, all augmented by hardware controls. And while we are putting our best price forward with a basic monitoring package that includes AES3 and Analog inputs (no IP options), a software upgrade package that includes loudness, presets, web meters/monitoring/configuration and customized output routing is available to bring its functionality in line with the more recent iSeries offerings in our price list.  Dolby D, DD+ and E decoding are also optional add-ons

    Features & Benefits

    • Low cost and energy efficient
    • Simultaneous level metering of 8 de-embedded audio channels from AES3 or Analog sources
    • Quick, intuitive push-button or touch selection of any channels or pairs to sum, mute or solo
    • Monitor through built-in speakers, headphones or analog outputs with Optional muting for internal speakers
    • Stereo phase indicators
    • Adjustable Volume and Balance

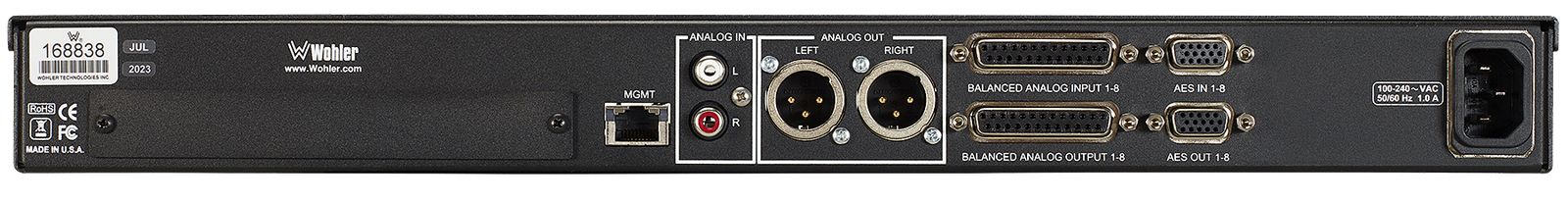

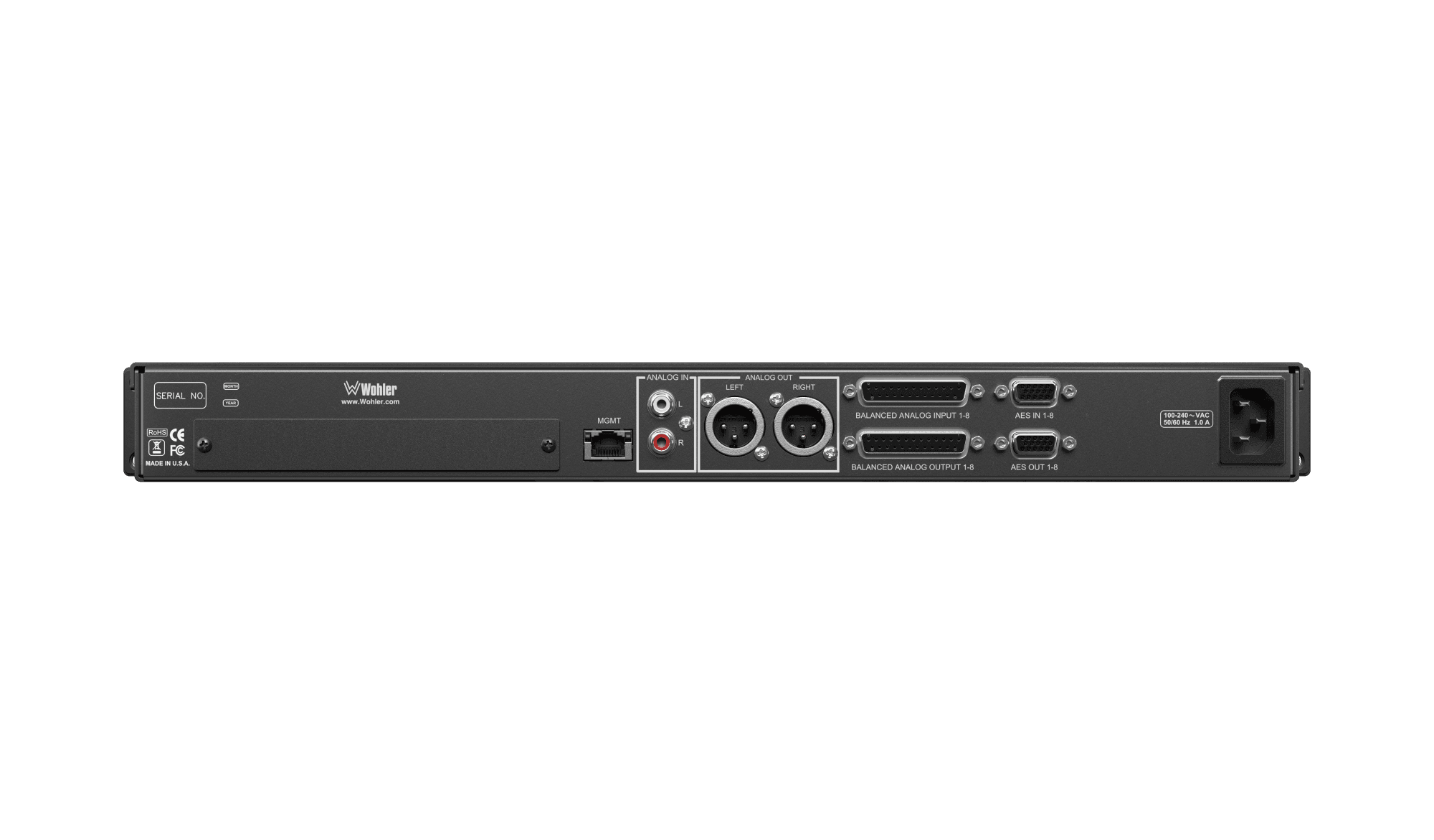

    • Balanced stereo analog outputs on XLR-Ms. Fixed level or volume/balance controlled.
    • Automatic frame rate detection and selection
    • Selectable line level or front panel volume control and outputs
    • Shallow chassis depth for easy installation in OB vehicles and consoles
    • OPT DOLBY adds decoding of *Dolby D, DD+ and E (requires OPT-e package)
    • APIs provide easy integration with 3rd party systems (requires OPT- e package)

    Upgrade Options

    OPT-e package 829186 Adds Loudness monitoring, Presets, & Web metering/monitoring/configuration
    OPT-e Output Routing 829188 Enables the flexibility to route input signals (AES & Analog only) to various outputs. Software activation key.
    OPT-DOLBY 829174 Allows decoding and monitoring of Dolby® D, DD+ & E. Includes Dolby Zoom & metadata. *This option requires OPT-e package

    Specifications

    Dimensions (W x H x D) 1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
    Shipping Weight / Net Weight 5.8 lbs. (2.6 kg) / 3.3 lbs. (1.5 kg)
    Power Consumption / Supply 19W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    Display Type / Resolution 7” (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
    Viewing Angle 160 (H) x 160 (V)
    Audio Channels 8 Max
    Hum and Noise Better than -68 dB below full output
    Peak Acoustic Output 90 dB SPL @ 2 feet
    Speaker Power Output 5W RMS per side, 12W Peak
    Upgrades Via USB or GUI web interface
