SKU: 8300-0110

eAMP1-S8-MDA

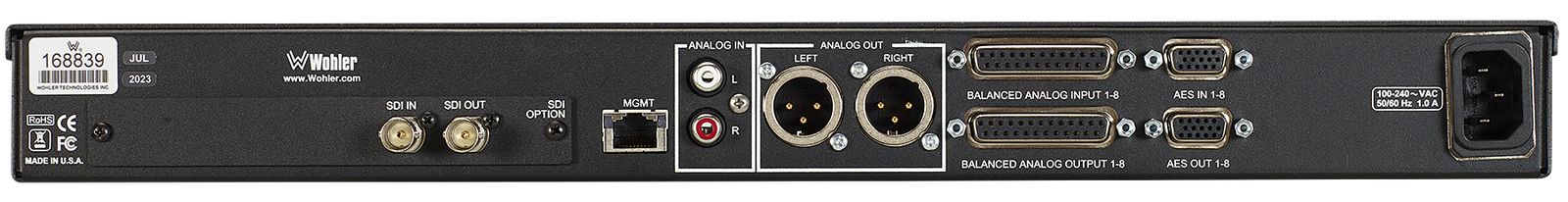

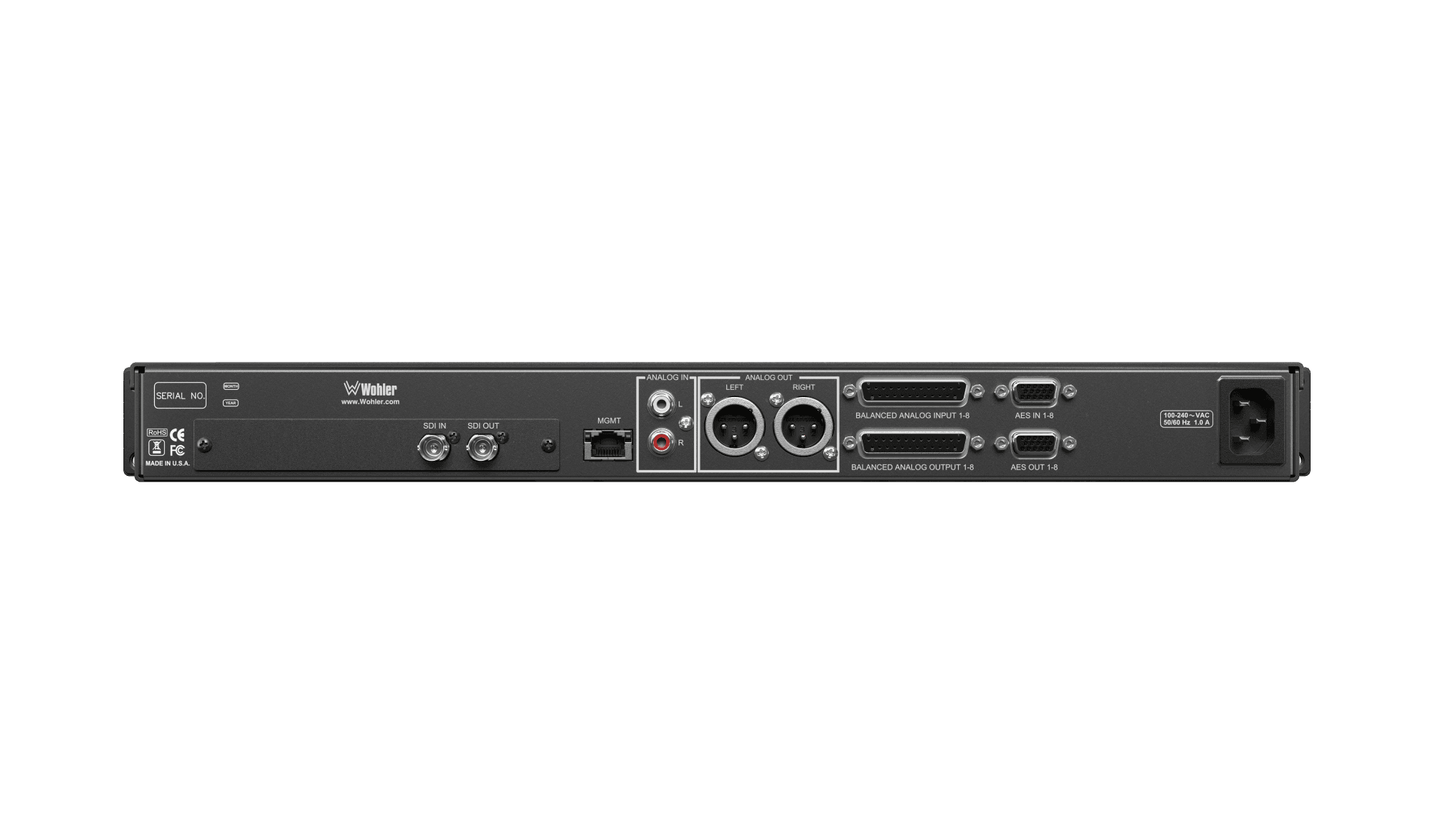

8 channel, baseband only, shallow depth, dual 3G-SDI input, AES3 & analog audio monitor with a 7” wide touchscreen.
Data Sheet

Data Sheet

Manual

Manual

Ask a Question

Ask a Question

Support

Support

Software Update

Software Update


Request a Quote

fields marked with an * are required

eAMP1-S8-MDA

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

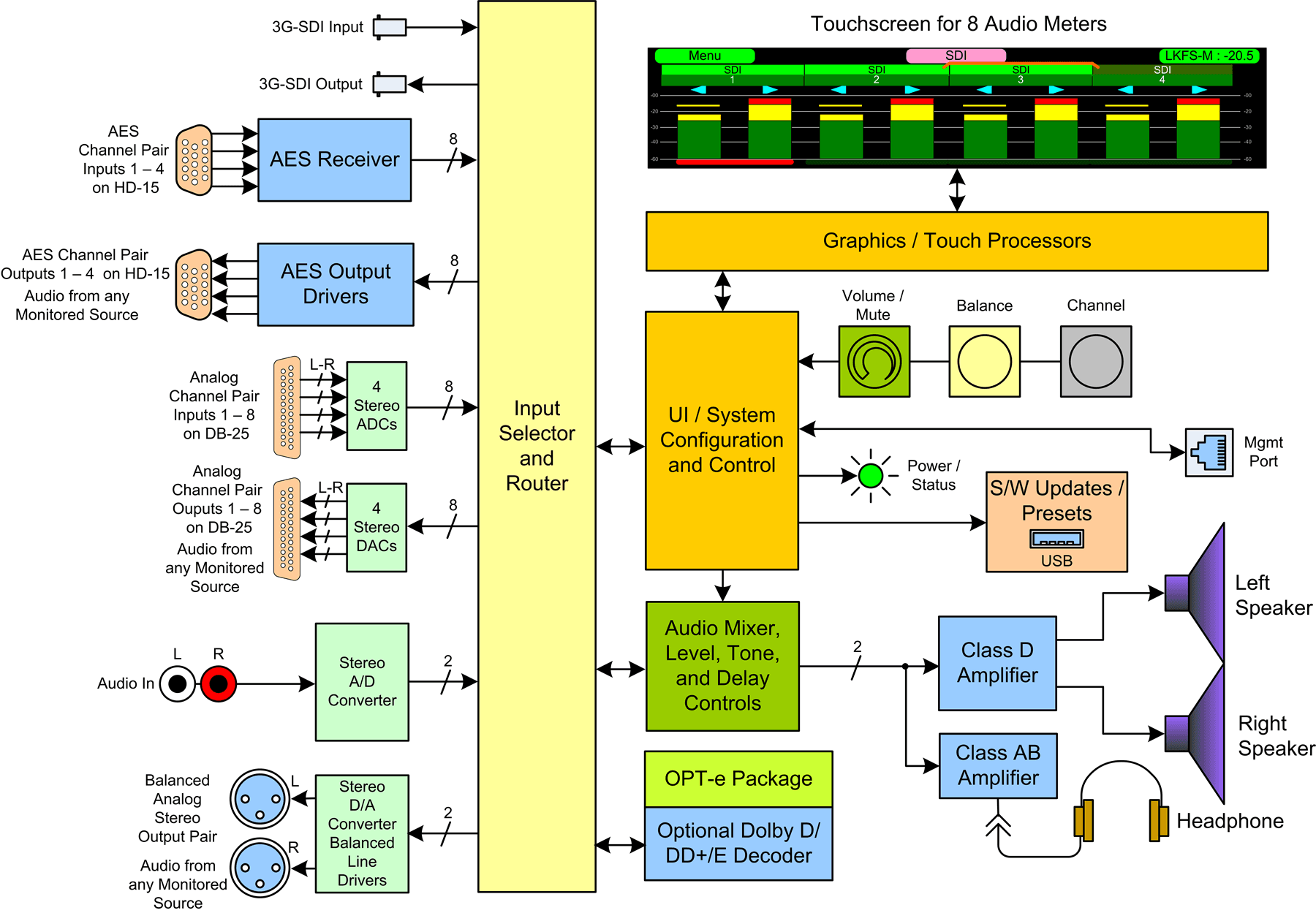

    The eAMP1-S8-MDA offers fast and intuitive confidence monitoring of 3G/HD/SD-SDI, AES3 and analog audio sources.  Whether in the studio or on the road, this unit provides simultaneous selection and summing of the selected source. It features adjustable volume and balance controls, clear display of levels, and phase indications.

    Flexible & Adaptable

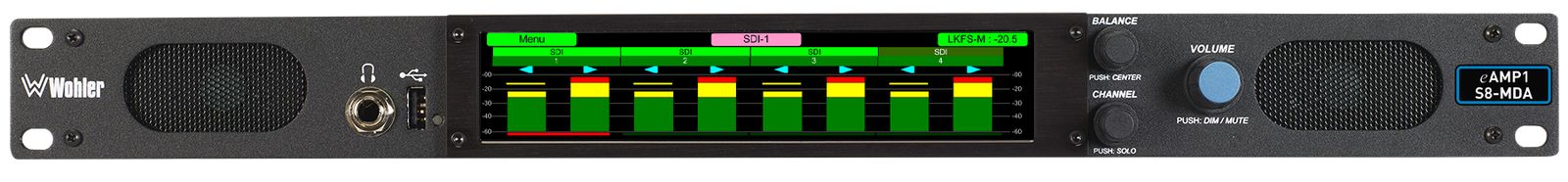

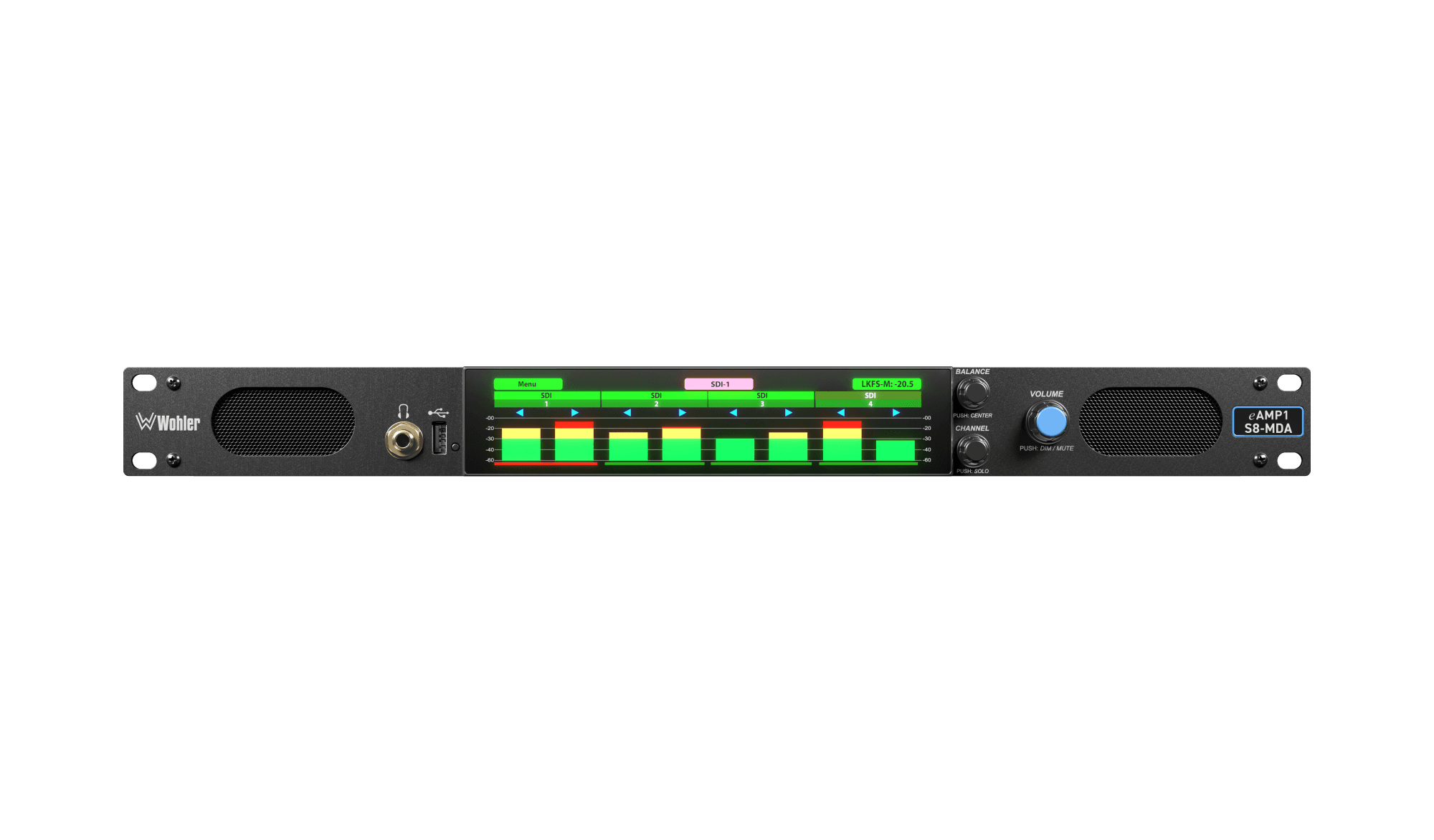

    The e AMP1-S8-MDA is designed to be much easier to operate than the retired S8’s and include a wide 7” LCD touchscreen display providing fast access to input sources, meters and menus, all augmented by hardware controls. And while we are putting our best price forward with a basic monitoring package that includes 3G/HD/SD-SDI, AES and Analog inputs (no IP options), a software upgrade package that includes loudness, presets, web meters/monitoring/configuration and customized output routing is available to bring its functionality in line with the more recent iSeries offerings in our price list.  Dolby D, DD+ and E decoding are also optional add-ons
