SKU: 8300-0500

eVAM1-1

New
Budget Priced 16 channel, single screen, 3G-SDI, AES3 & Analog Audio & Video Monitor.
Data Sheet

Data Sheet

Manual

Manual

Ask a Question

Ask a Question

Support

Support

Request a Quote

fields marked with an * are required

eVAM1-1

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

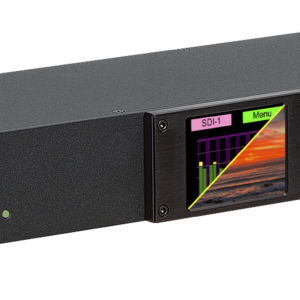

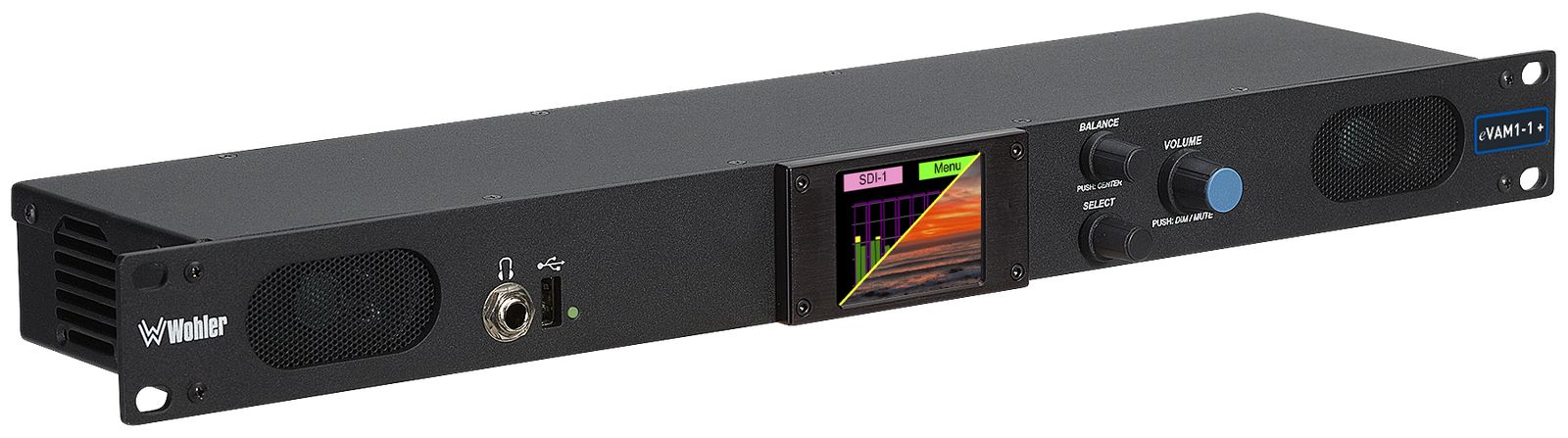

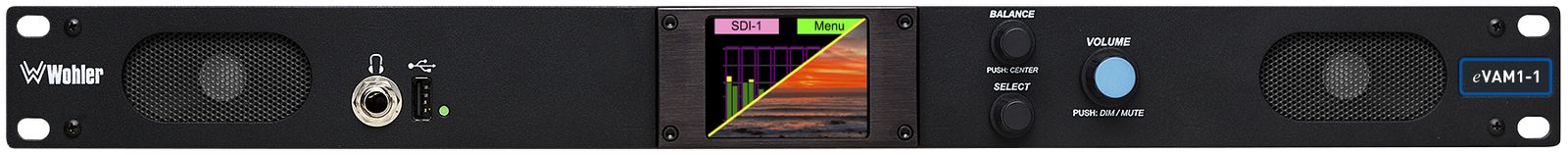

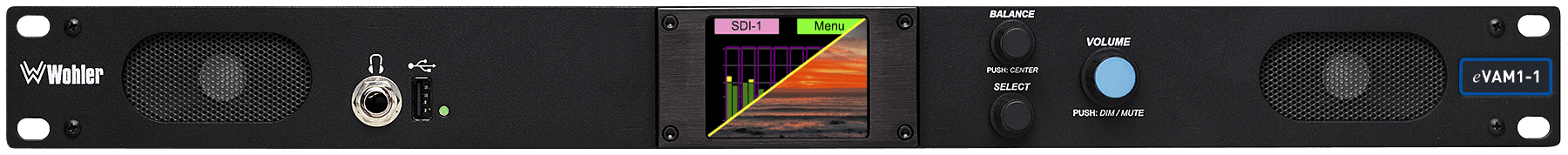

    The new eVAM1-1 is a well featured, easy to use, competitively priced baseband only, 16 channel video and audio monitor which ships standard with 3G-SDI (2 inputs), AES3 (1 pair) & Analog Inputs & Outputs (2 selectable pairs on XLR or RCA).  With touch screen operation included as well as 8 presets, the eVAM1-1 is the perfect solution for any application that requires a compact product for monitoring of baseband signals.



    Features & Benefits

    • Video and audio monitoring (up to 16 channels) from multiple sources

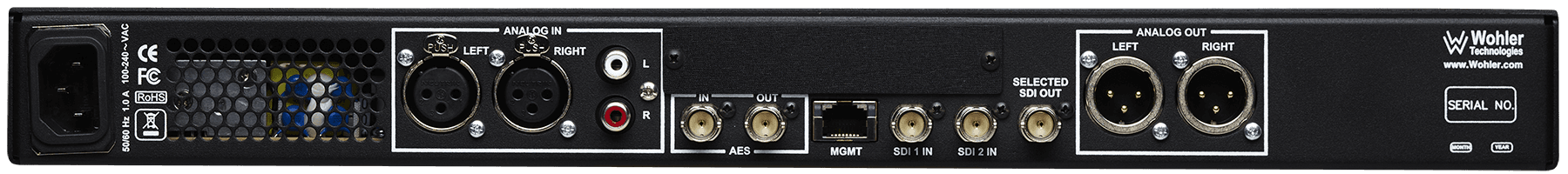

    • 2 x 3G-SDI Inputs on BNCs with selected output on BNC, 1 pr AES3 In/out on BNC, 1pr balanced Analog I/O on XLR + 1 pr unbalanced Analog inputs on RCA
    • Quick, intuitive push-button or touch selection of any channels or pairs to sum, mute or solo
    • Monitor through built-in speakers, headphones or analog outputs with optional muting for internal speakers
    • 8 presets
    • Stereo phase indicators
    • Adjustable Volume and Balance
    • Automatic frame rate detection and selection
    • Selectable line level or front panel volume control and outputs
    • Shallow chassis depth for easy installation in OB vehicles and consoles
    • Software upgradeable via USB or network
    • Remote GUI for preset creation and web meters
    • APIs for remote management

    Specifications

    Dimensions (W x H x D) 1RU in standard 19” rack: 19” x 1.75” x 4.8” (483 mm x 45 mm x 120 mm). Shipping dims: 23”x 6”x 12”
    Shipping Weight / Net Weight 6.0 lbs. (2.7 kg) / 3.3 lbs. (1.5 kg)
    Power Consumption / Supply 15W Typical, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    Display Type / Resolution
    		 2.4″ (60mm) LCD Capacitive Touchscreen, 320H x 240V6 Max
    Viewing Angle
    		 160 (H) x 160 (V)
    Audio Channels 16 Max
    Hum and Noise Better than -68 dB below full output
    Peak Acoustic Output 90 dB SPL @ 2 feet
    Speaker Power Output 5W RMS per side, 12W Peak
    Upgrades Front panel USB for software updates
    APIs Provide easy integration with 3rd party control systems
