iAM1-MIX8-12G
8 Channel 12G-SDI & Analog Audio Monitor and Mixer
Photo 1 of 3What it does

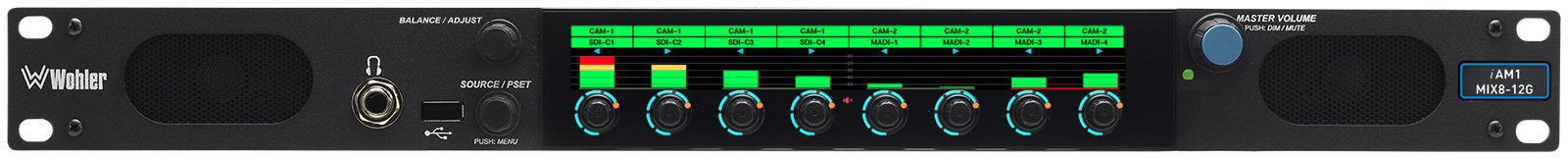

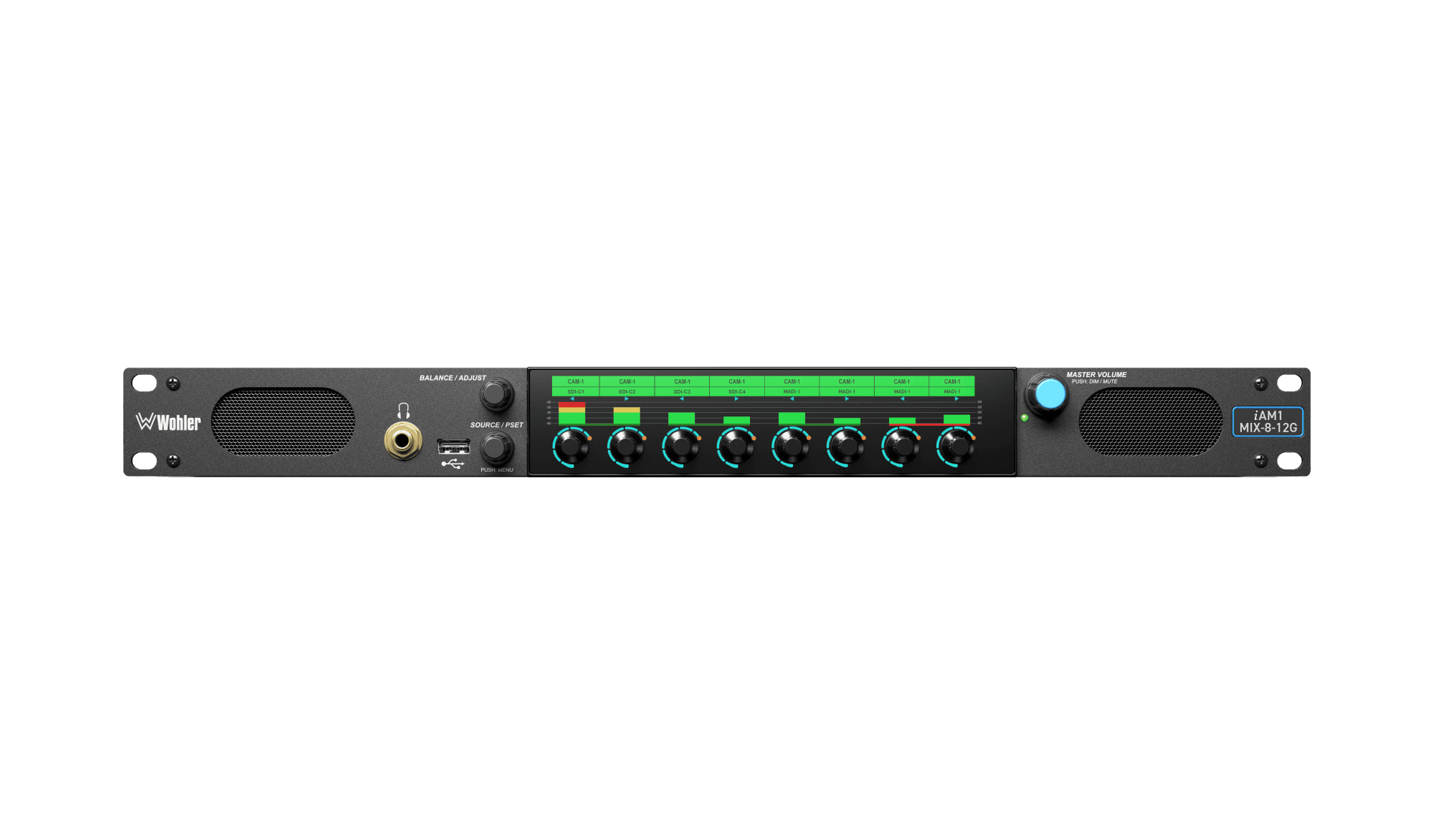

The iAM1-MIX8-12G is a design that emphasizes individual mechanical controls for sum, mute and solo operations. This latest re-design of our successful MIX series has been enhanced with upgraded screen graphics and includes a touch screen, while retaining the individual channel rotary encoders. As part of our iSeries product line, it is a well featured and competitively priced IP ready audio monitor and mixer. The iAM-MIX8 can be configured to operate in either single channel (8 channel) or pair mode (16 channel). Flexible. Adaptable. Future Proof. Standard features include 12G-SDI and a pair of Analog inputs and outputs. Upgrade/license other signal formats and processing options, as and when needed, either initially or after purchase. Options for additional signals, include DanteTM or RavennaTM (with hitless 2022-7 support), SMPTE-2110, SMPTE-2022-6, AES3, and MADI. Network Capable with Remote access options: The unit includes built-in support for remote monitoring provided by our MAVRIC software applications suite. All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.
Datasheets, manuals & software
Datasheet
Software update
Capabilities
- IP-ready
- Hybrid SDI/IP
- 24/7 operation
Why it's trusted
Fast selection and summing of up to 8 channels or 8 pairs (16 channels),
Master volume control that also provides a master mute/unmute
Channel names can be displayed for each input or pulled from a router

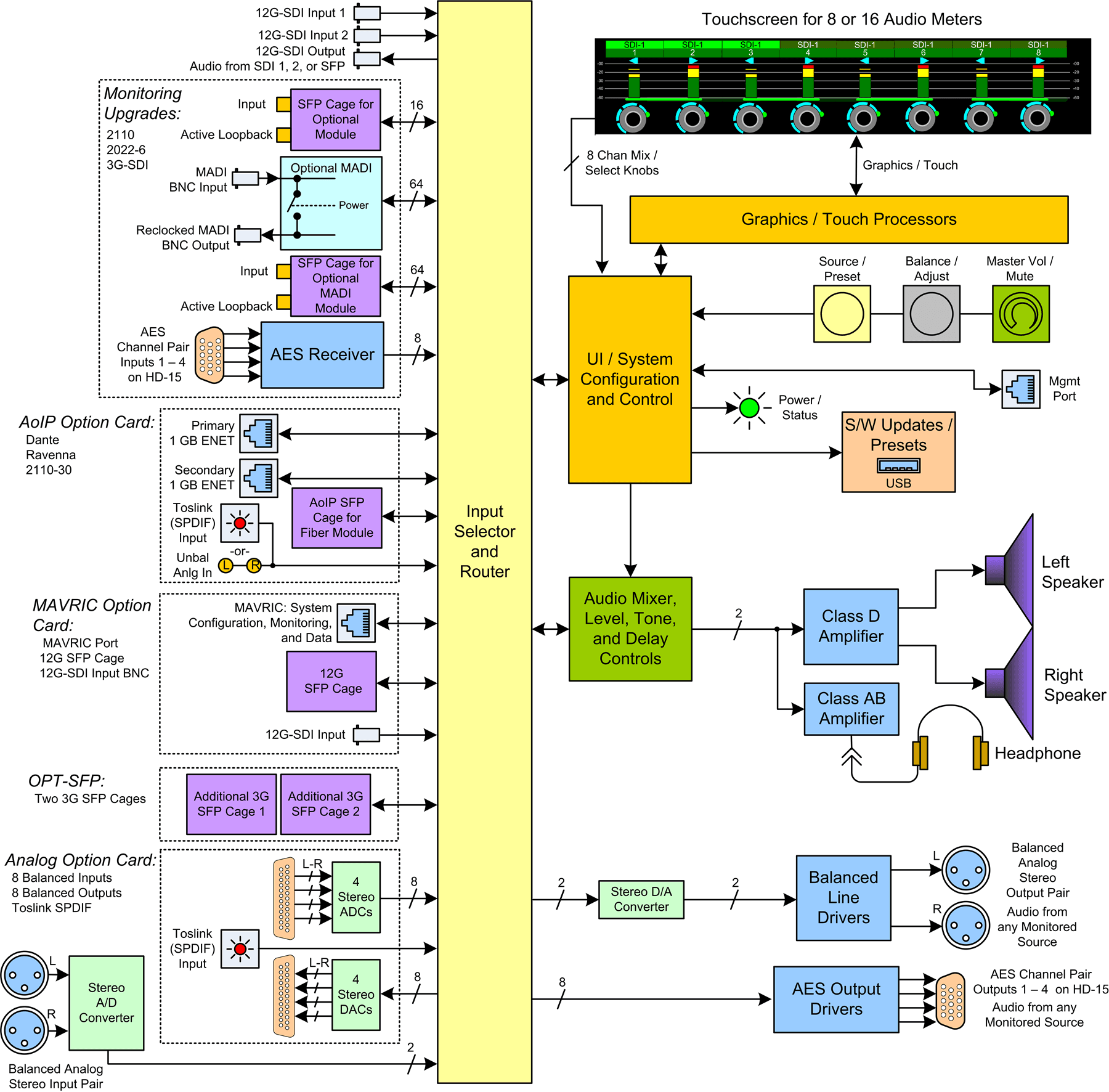

Standard I/O

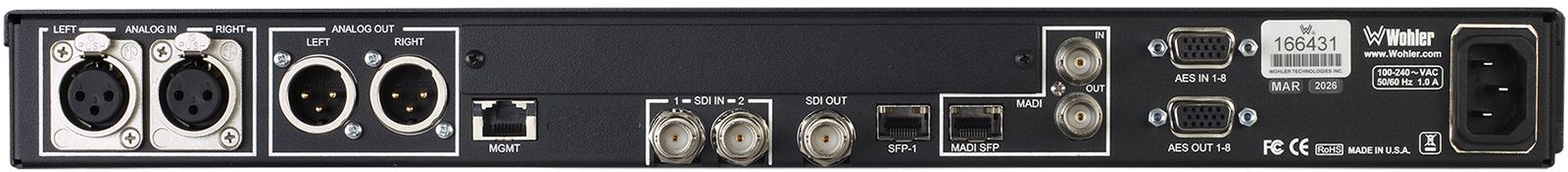

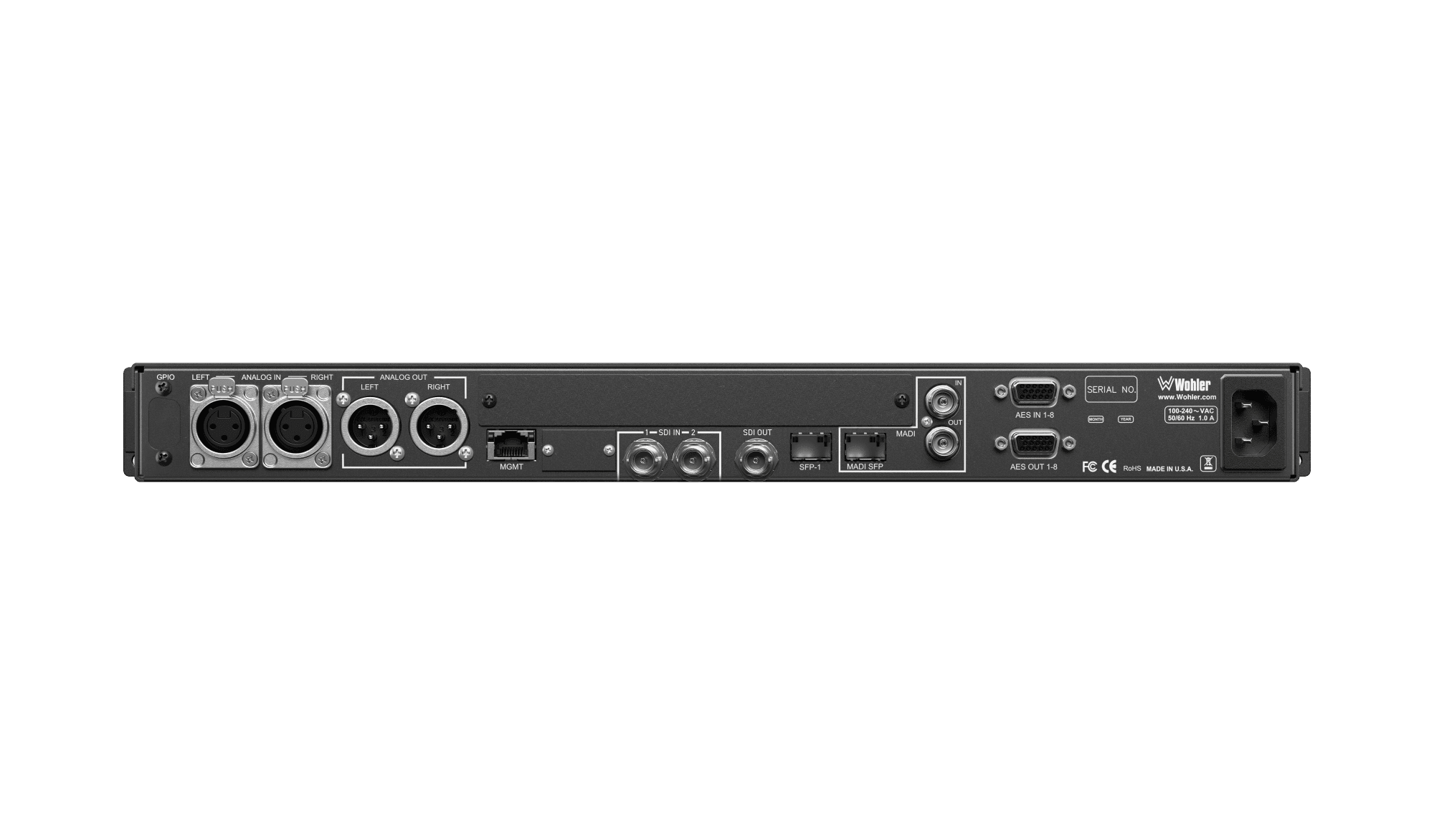

2 x 12G-SDI Inputs on BNC; 1 x 3G-SDI Output on BNC + 1 pair Analog I/O on XLR.
HDMI output of the monitored video source included.
Optional I/O
for AES3 on HD-15, (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
Option cards
Choose between AoIP, an additional 8 channels of analog inputs and outputs, 2 additional SFP cages, or a 12G/MAVRIC option card.
Store and retrieve up to 64 presets
Optional Output routing enables the flexibility to route input signals to various outputs
Built-in speakers, headphone jack, USB and Ethernet ports.
APIs for remote management and easy integration with 3rd party control systems.
Specifications
- Dimensions (W x H x D)
- 1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
- Shipping Weight / Net Weight
- 8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)
- Power Consumption / Supply
- 65W Typical, 18VDC, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
- Display Type / Resolution
- 7” (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
- Viewing Angle
- 160° (H) x 160° (V)
- Audio Channels
- 8 or 16
- Hum & Noise
- Better than -68 dB below full output
- Peak Acoustic Output
- 90 dB SPL @ 2 feet
- Speaker Power Output
- 5W RMS per side, 12W Peak
- Presets
- Up to 64 programmable/nameable. Can be copied from unit to unit via USB or GUI software and Ethernet
- Upgrades
- Via USB or GUI.
- Router Integrations
- Units support Evertz, Grass Valley & Tallyman protocols for automated display of channel labels
- APIs
- Get Available Presets; Get Preset Information; Get Active Preset; Apply Preset; Set Mute/Unmute Channel; Set Solo Channel; Source Select
What you can add
Option cards, licences and upgrades for this product. Most can be added after purchase.
OPT-OUTPUT ROUTING
829159Enables the flexibility to route input signals to various outputs.
View productOPT-AES
829080Enables monitoring of 4 x AES Input Pairs with 4 x AES Output Pairs. Software activation key.
View productOPT-MADI
829092Enables decoding and monitoring of 1 x MADI64 input via BNC with a looped output. Software activation key.
View productOPT-DANTE
829171 829171-1Enable monitoring from up to 64 ch of DanteTM input streams, including primary and secondary RJ-45 for hitless/2022-7 support (for Dante and 2110-30 signals) and a Gigabit SFP cage allowing multi-mode and single-mode network SFP’s for AoIP signals. Order 829171 for Optical TOSLINK input or 829171-1 for 2 unbalanced Analog inputs.
View productOPT-RAVENNA 64 (1U)
829172 829172-1This AoIP option card enables monitoring from up to 64ch of RavennaTM / AES67 input streams, including primary and secondary RJ-45 for hitless / 2022-7 support (for Ravenna and 2110-30 signals) and a Gigabit SFP cage allowing multi-mode and single-mode network SFP’s for AoIP signals. Order 829172 for Optical TOSLINK input or 829172-1 for 2 unbalanced Analog inputs.
OPT-ANLG/TOS
829170Enable monitoring of 8 analog channels on DB-25. Hardware card with software activation key. Includes Optical TOSLINK input.
View productOPT-SFP CARD
829179Adds two additional 3G inputs to 3G products, or two 12G inputs to 12G products.
View productSFP-SDI
8290893G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. Only purchase if 3rd SDI input is required.
View productSFP-SDI-Fiber
82908412G/3G/HD/SD-SDI single mode Optical LC (fiber) video receiver. Only required if 12G-SDI input is needed via Fiber OR an additional 3G input is required. 12G only applicable for 12G capable units, such as iVAM1-12G, iVAM2-12G.
View productSFP-2022-6
829088SMPTE 2022-6 receiver. Multi-Mode 850 NM, LC (fiber) Connectors. Use MN-SET to configure SFP.
View productSFP-2110 w/NMOS or Ember+
829086-1SMPTE 2110 receiver. Multi-Mode 850 NM, LC (fiber) Connectors. Use MN-SET to configure SFP. User selectable between NMOS and Ember+. Unless specified, NMOS will be delivered as standard.
View productSFP-2110 w/NMOS or Ember + 2022-6
829087-1SMPTE 2110 or 2022-6 Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use MN-SET to configure SFP. User selectable between NMOS and Ember+. Unless specified, NMOS will be delivered as standard.
View productSFP-MADI-Fiber (MM or SM)
829081 829082MADI optical fiber transceiver; Multimode or Singlemode, LC (fiber) Connectors. Use 829081 for Multimode (MM). Use 829082 for Singlemode (SM).
View product
