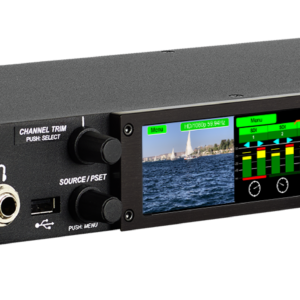

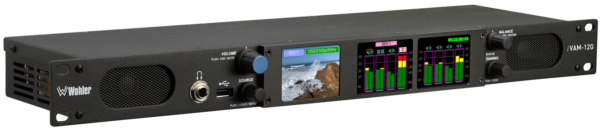

iVAM1-12G

16 channel, triple screen, 12G-SDI & Analog Audio & Video Monitor with optional 2022-7 support, plus options to license additional input signals.
Data Sheet

Data Sheet

Manual

Manual

Ask a Question

Ask a Question

Support

Support

Software Update

Software Update

Request a Quote

fields marked with an * are required

iVAM1-12G

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

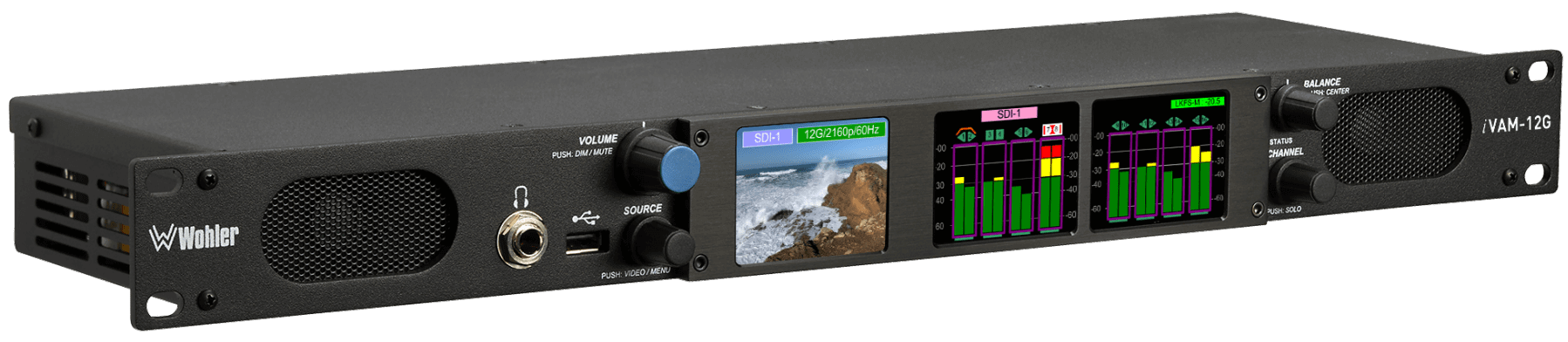

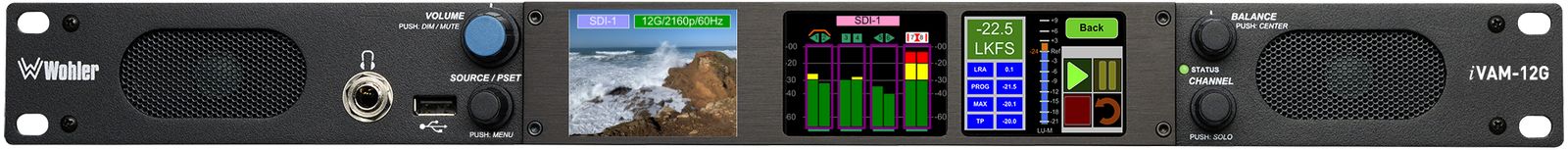

    The iVAM1-12G is a premium 12G-SDI version of our iVAM series.  It is similar to our iVAM1-3, but with 12G standard SDI inputs instead of 3G-SDI.  Live the iVAM1-3, it is a well featured IP ready 16 channel audio and video monitor.  Other standard features include loudness monitoring, meters, phase indication, HDR detection and presets. Like other touch-capable iSeries products, the iVAM1-12G is designed to be easy to operate, providing fast access to meters, menus and presets.

    Flexible. Adaptable. Future Proof.

    Standard features include 12G-SDI and a pair of Analog inputs and outputs. Upgrade/license other signal formats and processing options, as and when needed, either initially or after purchase. Options for additional signals, include DanteTM or RavennaTM (with hitless 2022-7 support), SMPTE-2110, SMPTE-2022-7, AES3, and MADI.

    Network Capable with Remote access options:

    The unit includes built-in support for remote monitoring provided by our MAVRIC software applications suite.  All iSeries monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.

    Features & Benefits

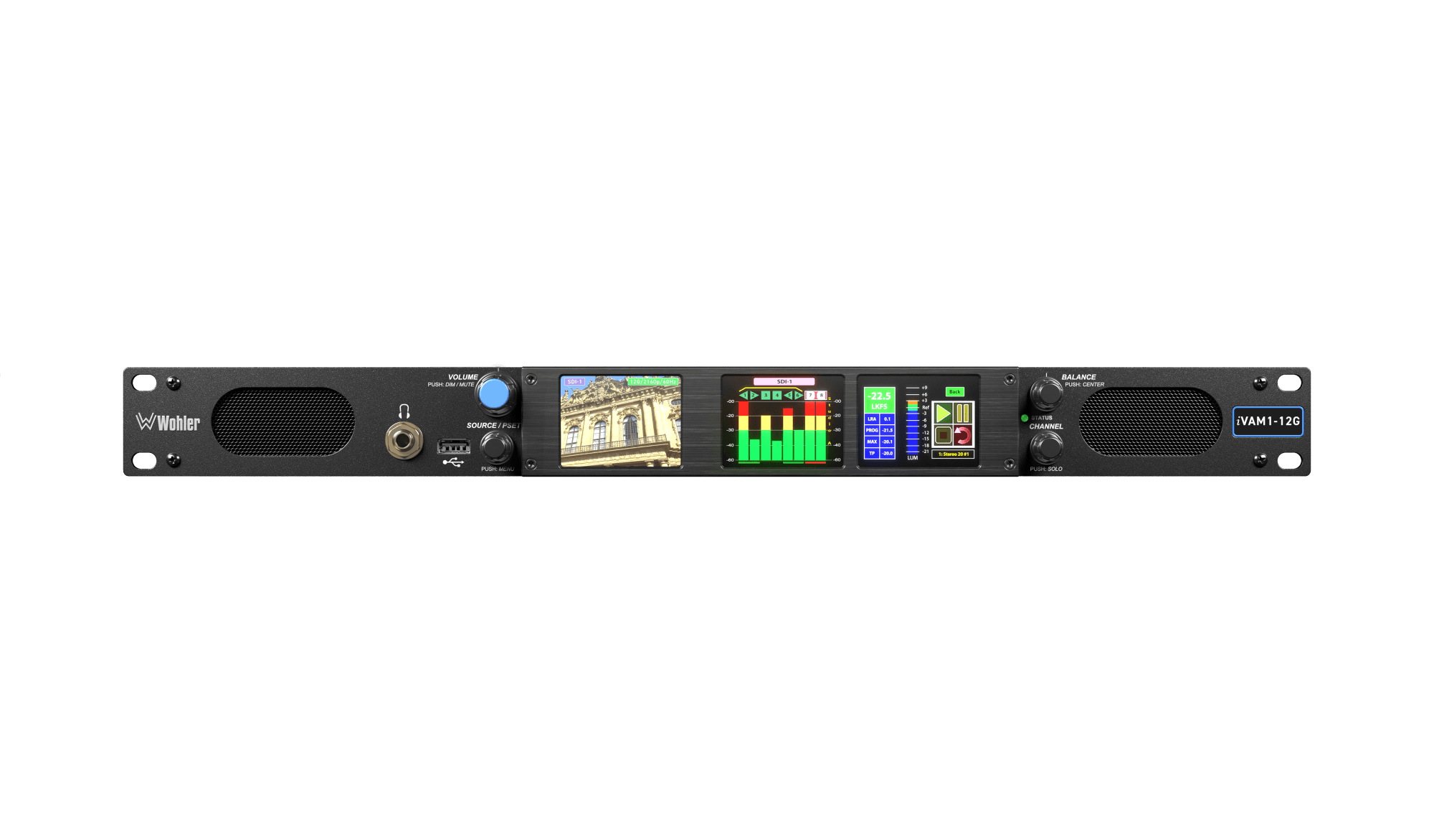

    • Audio & Video monitoring (up to 16 channels) from multiple sources.

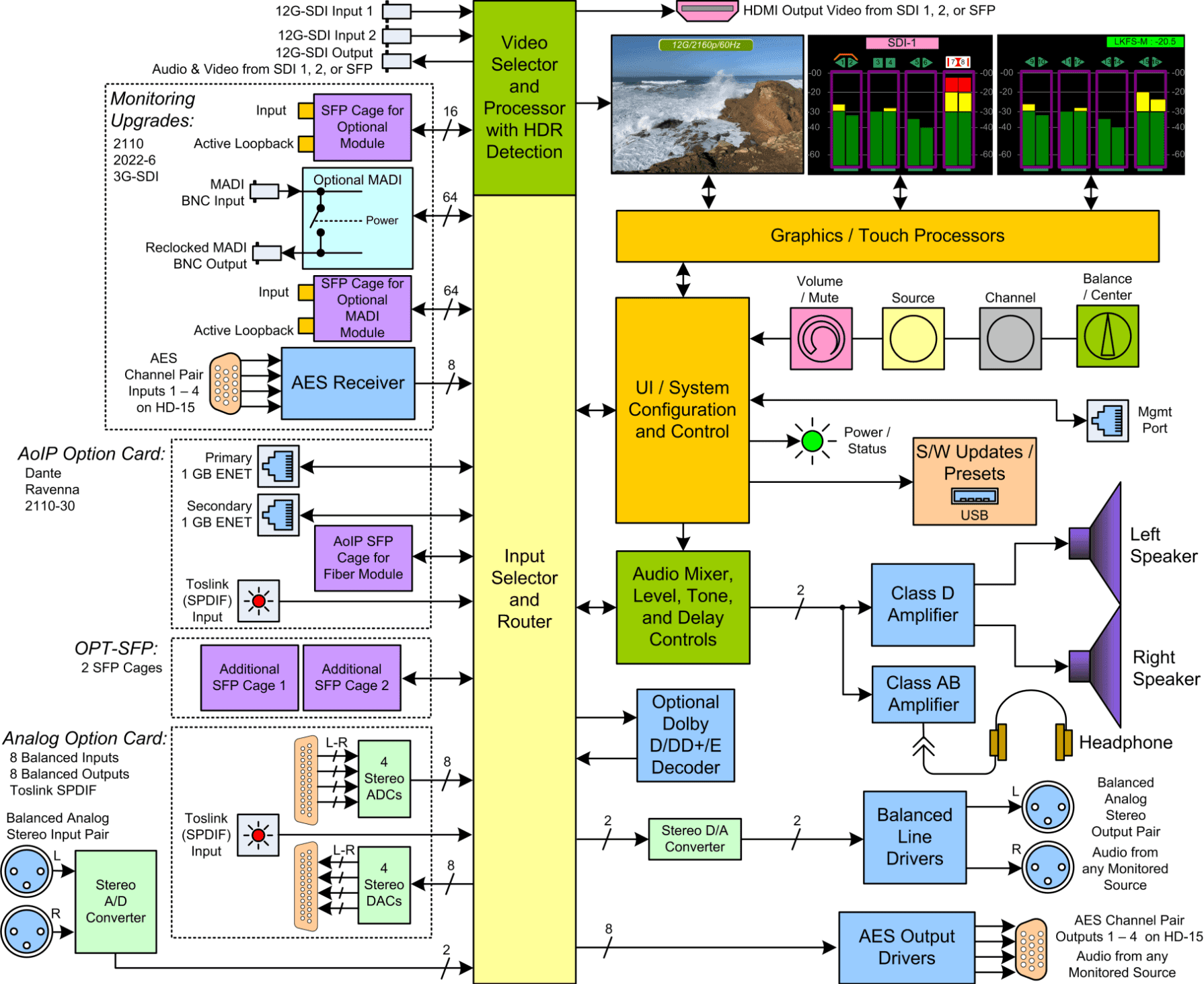

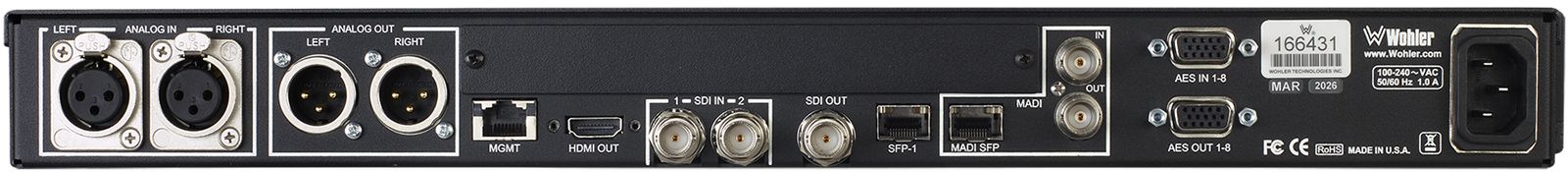

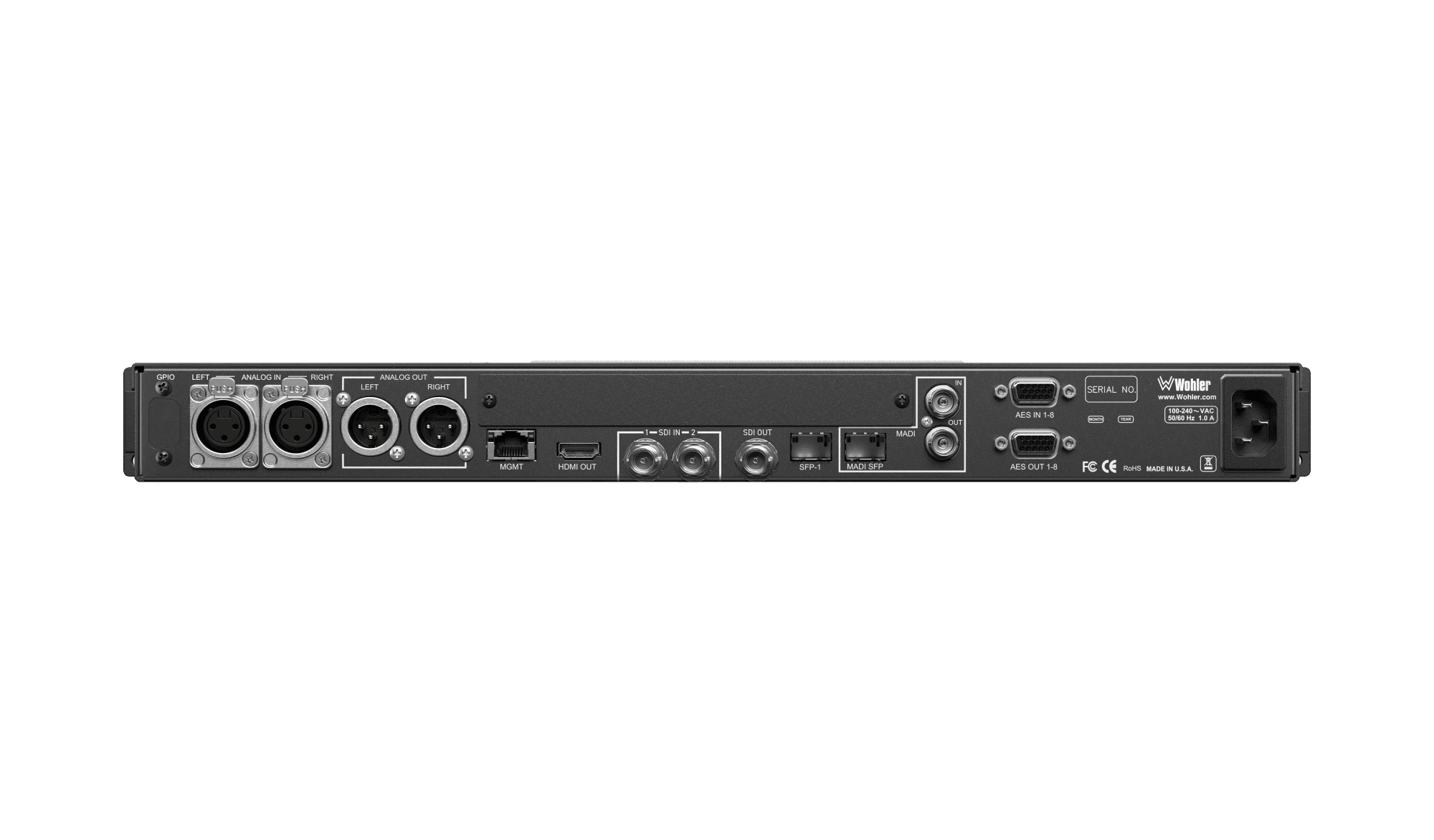

    • Standard I/O: 2 x 12G-SDI Inputs on BNC; 1 x 12G-SDI Output on BNC + 1 pair Analog in/out on XLR
    • HDMI output of the monitored video source included
    • Optional I/O: for AES3 on HD-15, (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
    • Option cards: Choose between AoIP, an additional 8 channels of analog inputs and outputs, 2 additional SFP cages, or a 12G/MAVRIC option card.
    • Store and retrieve up to 64 presets
    • Optional Output routing enables the flexibility to route input signals to various outputs
    • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
    • Built-in speakers, headphone jack, USB and Ethernet ports with API’s for remote management
    • Software upgradeable individually via USB or multiple units on the same network
    • Built-in Audio-only remote monitoring probe. Requires MAVRIC subscription

    Upgrade Options

    Processing Options (software only)
    OPT-DOLBY 829174 Enable monitoring of Dolby D, DD+ or E streams. Software activation key. Functions on SDI via BNC, or any of the following OPT/SFP’s: OPT-AES, SFP-SDI-Fiber, SFP-2022-6, SFP-2110, and SFP-2110+2022-6
    OPT-OUTPUT ROUTING 829159 Enables the flexibility to route input signals to various outputs.
    Signal Licensing Options (software only, no hardware)
    OPT-AES 829080 Enables monitoring of 4 x AES Input Pairs with 4 x AES Output Pairs.  Software activation key.
    OPT-MADI 829092 Enables decoding and monitoring of 1 x MADI64 input via BNC with a looped output.  Software activation key.
    Option Cards (1 Option Card only per Unit)
    OPT-DANTE 829171

    829171-1

    		 Enable monitoring from up to 64 ch of DanteTM input streams, including primary and secondary RJ-45 for hitless/2022-7 support (for Dante and 2110-30 signals) and a Gigabit SFP cage allowing multi-mode and single-mode network SFP’s for AoIP signals. Order 829171 for Optical TOSLINK input or 829171-1 for 2 unbalanced Analog inputs.
    OPT-RAVENNA 64 829172

    829172-1

    		 This AoIP option card enables monitoring from up to 64ch of RavennaTM / AES67 input streams, including primary and secondary RJ-45 for hitless / 2022-7 support (for Ravenna and 2110-30 signals) and a Gigabit SFP cage allowing multi-mode and single-mode network SFP’s for AoIP signals. Order 829171 for Optical TOSLINK input or 829171-1 for 2 unbalanced Analog inputs.
    OPT-ANLG/TOS 829170 Enable monitoring of 8 analog channels on DB-25. Hardware card with software activation key. Includes Optical TOSLINK input.
    OPT-SFP CARD 829179 Adds two additional 3G inputs to 3G products, or two 12G inputs to 12G products.
    OPT-RMOC-12G 829189(1U)

    829190(2U)

    		 Will enable 12G inputs on any 3G iSeries Monitor! Includes single BNC and SFP slot for 12G/3G SDI or ST2110 input. Separate SFP Purchase required.  Also Enables MAVRIC functionality, capable of monitoring 16 channels of audio plus a single video input (iVAM Series only for video input), selectable from a choice of sources connected directly to the card, or inputs connected to the in-rack monitor.
    Small form-factor pluggable (SFP) Options with software activation key
    SFP-SDI 829089 3G/HD/SD-SDI single video receiver with active loopback. HD-BNC Connectors. Only purchase if 3rd SDI input is required.
    SFP-SDI-Fiber 829084 12G/3G/HD/SD-SDI single mode Optical LC (fiber) video receiver.  Only required if 12G-SDI input is needed via Fiber OR an additional 3G input is required.  12G only applicable for 12G capable units, such as iVAM1-12G, iVAM2-12G.
    SFP-2022-6 829088 SMPTE 2022-6 receiver. Multi-Mode 850 NM, LC (fiber) Connectors. Use MN-SET to configure SFP.
    SFP-2110 w/NMOS or Ember+ 829086-1 SMPTE 2110 receiver.  Multi-Mode 850 NM, LC (fiber) Connectors. Use MN-SET to configure SFP. User selectable between NMOS and Ember+.  Unless specified, NMOS will be delivered as standard.
    SFP-2110 w/NMOS or Ember + 2022-6 829087-1 SMPTE 2110 or 2022-6 Receiver, Multi-Mode 850 NM, LC (fiber) Connectors. Use MN-SET to configure SFP. User selectable between NMOS and Ember+.  Unless specified, NMOS will be delivered as standard.
    SFP-MADI-Fiber (MM or SM) 829081

    829082

    		 MADI optical fiber transceiver; Multimode or Singlemode, LC (fiber) Connectors. Use 829081 for Multimode (MM). Use 829082 for Singlemode (SM).

    Specifications

    Dimensions (W x H x D) 1RU in standard 19” rack: 19” x 1.75” x 5.5” (483 mm x 45 mm x 140 mm). Shipping dims: 23”x 6”x 12”
    Shipping Weight / Net Weight 8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)
    Power Consumption / Supply 65W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
    Display Type / Resolution 3 x 2.4” (60 mm) LCD Capacitive Touchscreen; 320H x 240V
    Viewing Angle 160° (H) x 160° (V)
    Audio Channels 16 Max
    Hum and Noise Better than -68 dB below full output
    Peak Acoustic Output 90 dB SPL @ 2 feet
    Speaker Power Output 5W RMS per side, 12W Peak
    Upgrades Via USB or GUI web interface
    APIs Provide easy integration with 3rd party control systems
