• iAM-12G-SDI audio & video monitor with Dolby ATMOS Isometric

OPT-MADI/ANLG/TOS (12G)

Order Number 829168

Enables monitoring of 8 Analog channels on DB-25, an Optical TOSLINK Input, monitoring of 1 x MADI64 input via BNC, and an SFP Cage that accepts MADI Optical inputs.

Audio Monitor Analog MADI64 Dante (option) Ravenna (option) Fiber Optic (option) Made In USA

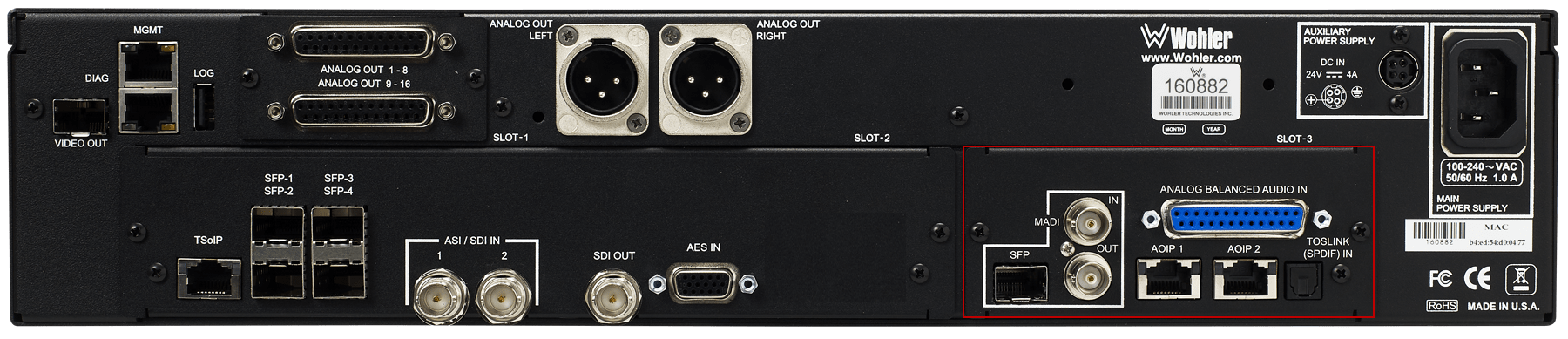

This card enables monitoring of 8 Analog channels on DB-25, an Optical TOSLINK Input, monitoring of 1 x MADI64 input via BNC, and an SFP Cage that accepts MADI Optical inputs.

The option card can be installed in the i-Series products listed below:

This card can also be updated / upgraded to add Dante64 or Ravenna64 / AES67 processing options.

Analog Input8 Channels on DB-25; Optical TOSLINK input
MADI Input1 x MADI64 input via BNC; SFP Cage available for optimical MADI Fiber input
MADI Output1 looped MADI64 output on BNC
Shipping DimensionsN/A (LxWxH)

Looking for software updates? Click here.

Reporting an issue? Click here.

Features

Signal Input 8 Channels on DB-25; Optical TOSLINK input x Analog Input, 1 x MADI64 input via BNC; SFP Cage available for optimical MADI Fiber input x MADI Input
Signal Output 1 looped MADI64 output on BNC x MADI Output
Audio Specifications
Video Specifications
Features
Interfacing
Physical
Shipping Weight 2.0 lbs (0.9 kg)
Other
Processing
