SKU: 16 x 1 SDI Audio/Video Switcher

PRESTO (Last, 4 Available)

16 x 1 SDI Audio/Video Switcher
Data Sheet

Data Sheet

Manual

Manual

Ask a Question

Ask a Question

Support

Support


Sold Out

Sorry this product is sold out / Out of Stock

$ 1200

Request a Quote

fields marked with an * are required

PRESTO (Last, 4 Available)

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

    Important Note:

    From time-to-time Wohler offers units here that have been unboxed, demonstrated or that we quite simply just want to get off of our factory shelves – either way the result is an incredible deal for you. All units are in excellent condition, are fully factory tested and come covered by our one-year full warranty for your complete peace of mind.

    • Sales are on a CASH-IN-ADVANCE or CREDIT CARD basis.
    • Each item carries a full one-year manufacturer’s warranty.
    • At these prices all sales are final, we can’t accept any returns.
    • All quantities are while supplies last.

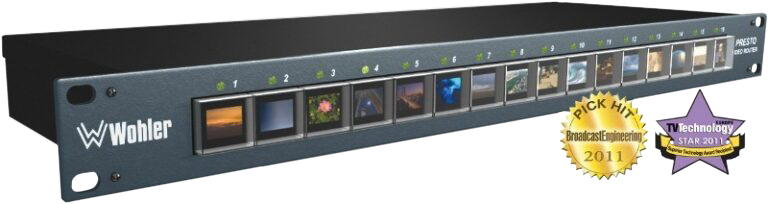

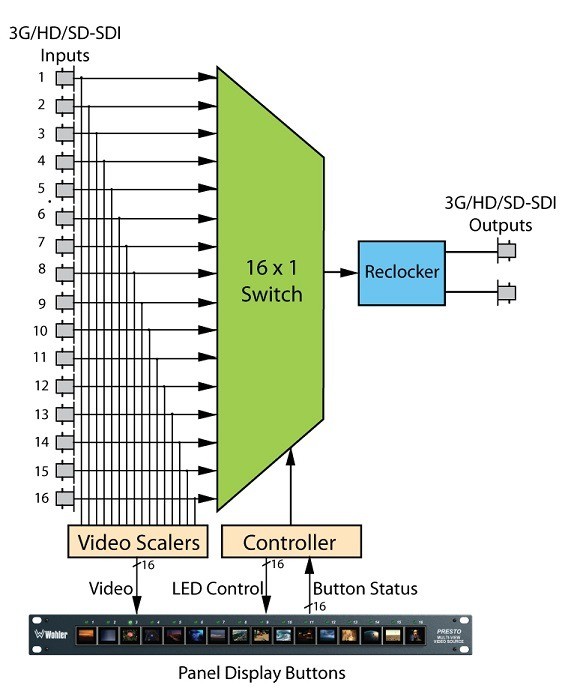

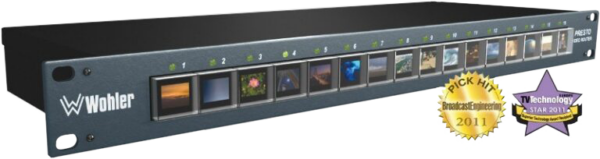

    Presto is a simple, intuitive, yet high performance solution for organizing, managing and monitoring multiple SDI video streams in broadcast applications. It accepts up to sixteen 3G/HD/SD-SDI inputs and displays video on screens that are themselves buttons. Pressing one button switches that input, both video and associated audio, to a pair of re-clocked outputs for routing and/or monitoring on a larger device.

    In busy multi-program environments, Presto’s prime advantage is its simplicity and size. No other product on the market packs as many screens in 1RU and is as simple to use. Since each button is a mini video screen, you will never worry about switching to the wrong source again.



    Features & Benefits

    FEATURES:

    • Accepts sixteen 3G/HD/SD-SDI signals in a compact 1RU frame
    • LED indicators clearly identify currently selected source
    • High quality OLED screens enable easy identifi cation of content
    • Rear panel inputs to activate front panel dimming and/or lockout

    BENEFITS:

    • Quickly preview and verify video content prior to selection
    • Instant and intuitive switching of any source to a pair of re-clocked outputs
    • Affordable confi dence monitoring for multi-channel video server environments



    Option

    A-V Specs

    Display Type  OLED 30,000 hours
    Number of screens  16
    Diagonal Display Size  0.61″ x 0.46″ (15.5mm x 11.6mm)
    Display Resolution (HxV)  64 RGB x 48
    Viewing Angle  180 degrees



    Physical Specs

    Rack Height  1RU
    Power Supply  Power to the unit is 5V DC, 3.0 A. External power supply connects to power source (100 to 240 VAC +/- 10%, 50/60 Hz)
    Dimension Width  19.0″ (483mm)
    Dimension Height  1.75″ (44.5mm)
    Dimension Depth  7″ (178mm)
    Net Weight  5.0 lbs (2.3 kg)
    Shipping Weight  5.0 lbs (2.3 kg)
    Shipping Dimensions  N/A (LxWxH)
