MPEG-3270 (End of Life)

$8,995.00 $2,698.00

Order Number 8005-0030-EOL

Cost-effective solution for real-time MPEG TS, SDI, and HDMI monitoring to enable delivery of excellent Quality of Service (QoS)

2 in stock

Audio Monitor Video Monitor 3G/HD/SD-SDI HDMI MPEG-2/-4 Level Meters Dolby Audio Decoding Headphone Socket Speakers Made In USA
[box]From time to time Wohler offers units here that have been unboxed, demonstrated or that we quite simply just want to get off of our factory shelves – either way the result is an incredible deal for you. All units are in excellent condition, are fully factory tested and come covered by our one year full warranty for your complete peace of mind.

  • Sales are on a CASH-IN-ADVANCE or CREDIT CARD basis.
  • Each item carries a full one year manufacturer’s warranty.
  • At these prices all sales are final, we can’t accept any returns.
  • All quantities are while supplies last.
[/box]

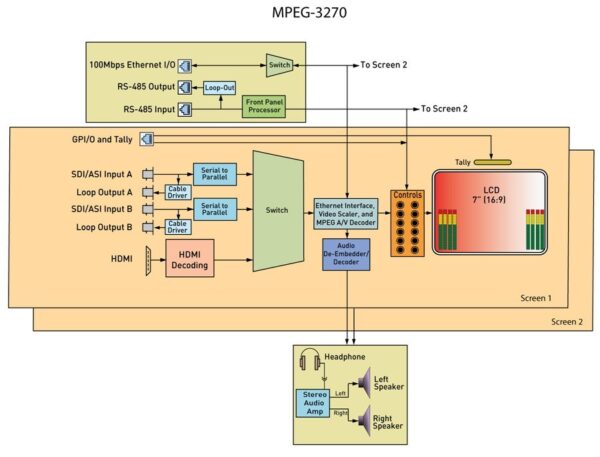

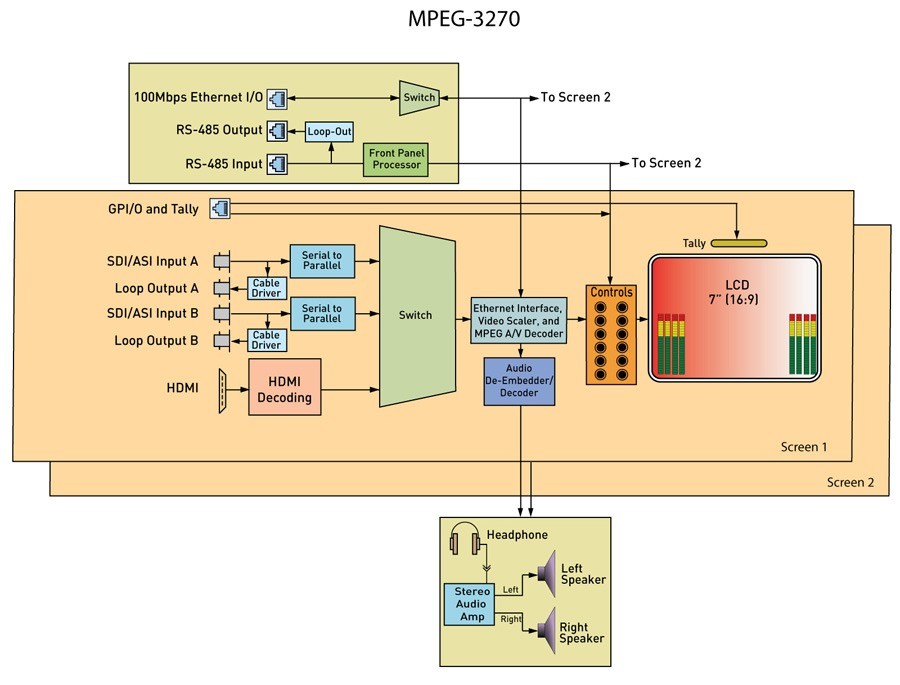

The MPEG series decodes and displays MPEG-2 and MPEG-4 signals via Ethernet IP or BNC ASI inputs while giving users the ability to browse PAT, PMT, EIT and NIT data tabels for each selected stream. In addition to MPEG IPTV and ASI inputs the MPEG series monitors also feature dual 3G/HD/SD-SDI inputs with loop-through output, HDMI input, and audio monitoring with on-screen level meters.

Only the MPEG series decodes and monitors MPEG transport streams carrying MPEG-2, MPEG-4/H.264 encoded video plus all associated data tables for complete confidence monitoring in places it was previously impractical or very costly to do so. The MPEG series brings confidence monitoring to a new level without codec limitations or the costly upgrades usually associated with MPEG monitoring equipment.

FEATURES & BENEFITS:

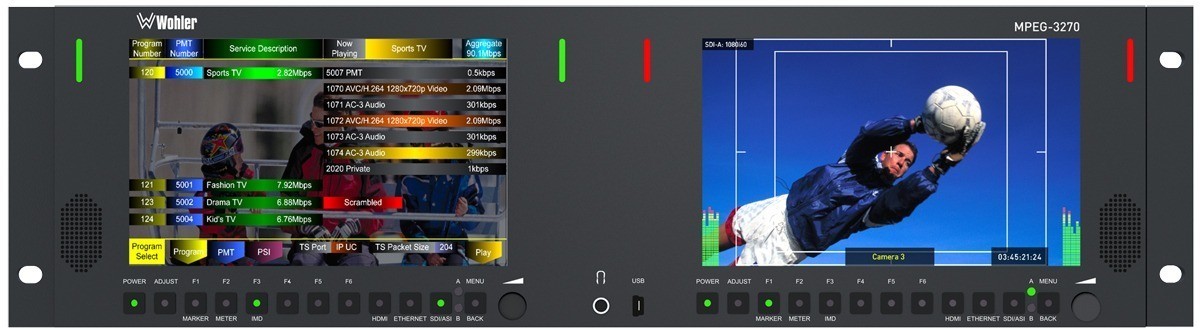

  • Stand-alone multi-format confidence monitoring station (Dual ASI, 3G/HD/SD-SDI with loop-through, Single IP and HDMI inputs on all screens)
  • Automatically identifies and decodes selected MPEG-2 4:2:0 and H.264/MPEG-4 4:2:0 video, audio, and metadata
  • Status Indicators offer a quick go/no go indication of MPEG parameters, including: PAT, CAT, NIT, SDT, EIT, TDT, SIT and Sync
  • Dolby® Digital and Digital+ Decode (Optional)
  • Multiple audio decode of up to 12 groups to support multiple language tracks
  • In-picture level metering for up to 16-channels of audio
  • Level meters can display both average & PPM (Peak) levels with selectable meter scales
  • Tally and on-screen labelling for quick and easy signal identification
  • In-picture Centre, Area, and Safe Title Markers
  • Supports frame rates up to 1080p60 on both baseband and compressed inputs
  • Easy to use interface with color coding for different elements
  • Low power consumption
  • Monitor embedded audio through local speakers and 3.5 mm headphone output
  • Future proof design through easy software upgrades via USB for additional features
    and functions

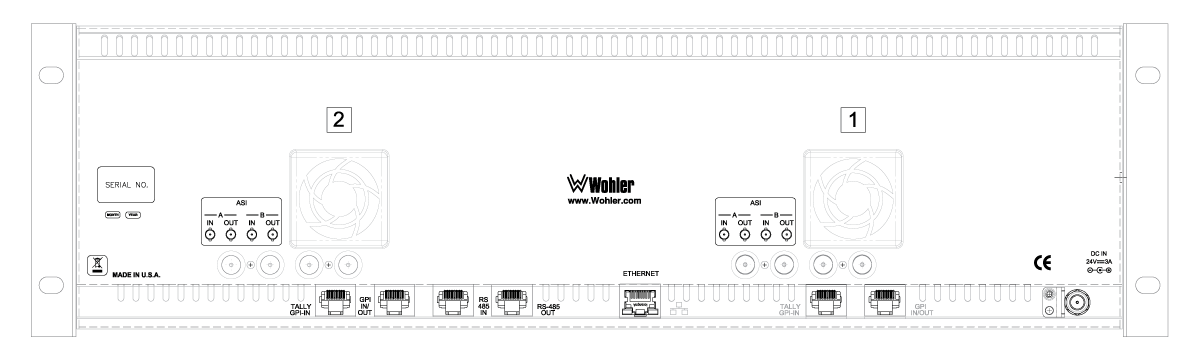

2 Auto-Sensing 3G/HD/SD-SDI Inputs on BNC per screen
SDI Outputs2 Active Loop Thru 3G/HD/SD-SDI Outputs on BNC per screen
MPEG2 Auto-Sensing MPEG2 TSoASI Inputs on BNC per screen
HDMI Input1 HDMI (HDCP Not Supported) per screen
GPIO1 RJ-45: Tally and GPI/O
MPEG TSoIP Input2 Active Loop Thru MPEG2 TSoIP Outputs per screen
SpeakersYes
Color Depth16.7 million
Contrast1,000:1
Diagonal Display Size7"
Display Resolution (HxV)800 x 480
Display TypeActive color matrix amorphous LCD TFT screen; LED Backlight
Luminance400 cd/m^2
Native Aspect16:9 native 4:3 selectable
Number of screens2
Pixel Response<18 ms off-on-off (black to white to black)
Viewing Angle160 degrees horizontal x 160 degrees vertical
Level Meters16 Channel Vertical
Audio Channels (max)16
Headphone JackYes
Rack Height3RU
Power SupplyPower to the unit connects to mains power (100 to 240 VAC ± 10%, 50/60Hz); AC Power cord supplied
Dimension Width19.0" (483mm)
Dimension Height5.25" (143mm)
Dimension Depth2.2" (56mm)
Net Weight4.7 lbs (2.1 kg)
Shipping Weight5.9 lbs (2.7 kg)
CategoryArray
Shipping Dimensions24 × 17 × 8 in (LxWxH)

Looking for software updates? Click here.

Reporting an issue? Click here.

Features

Signal Input 2 Auto-Sensing 3G/HD/SD-SDI Inputs on BNC per screen x SDI Inputs, 1 HDMI (HDCP Not Supported) per screen x HDMI Input, 2 Auto-Sensing MPEG2 TSoASI Inputs on BNC per screen x MPEG, 2 Active Loop Thru MPEG2 TSoIP Outputs per screen x MPEG TSoIP Input, 1 RJ-45: Tally and GPI/O x GPIO
Signal Output 2 Active Loop Thru 3G/HD/SD-SDI Outputs on BNC per screen x SDI Outputs
Audio Specifications
Speakers Yes
Video Specifications
Color Depth 16.7 million
Contrast 1,000:1
Diagonal Display Size 7"
Display Resolution (HxV) 800 x 480
Display Type Active color matrix amorphous LCD TFT screen; LED Backlight
Luminance 400 cd/m^2
Native Aspect 16:9 native 4:3 selectable
Number of screens 2
Pixel Response <18 ms off-on-off (black to white to black)
Viewing Angle 160 degrees horizontal x 160 degrees vertical
Features
Level Meters 16 Channel Vertical
Audio Channels (max) 16
Interfacing
Headphone Jack Yes
Physical
Dimension Depth 2.2" (56mm)
Rack Height 3RU
Dimension Height 5.25" (143mm)
Dimension Width 19.0" (483mm)
Net Weight 4.7 lbs (2.1 kg)
Power Supply Power to the unit connects to mains power (100 to 240 VAC ± 10%, 50/60Hz); AC Power cord supplied
Shipping Weight 5.9 lbs (2.7 kg)
