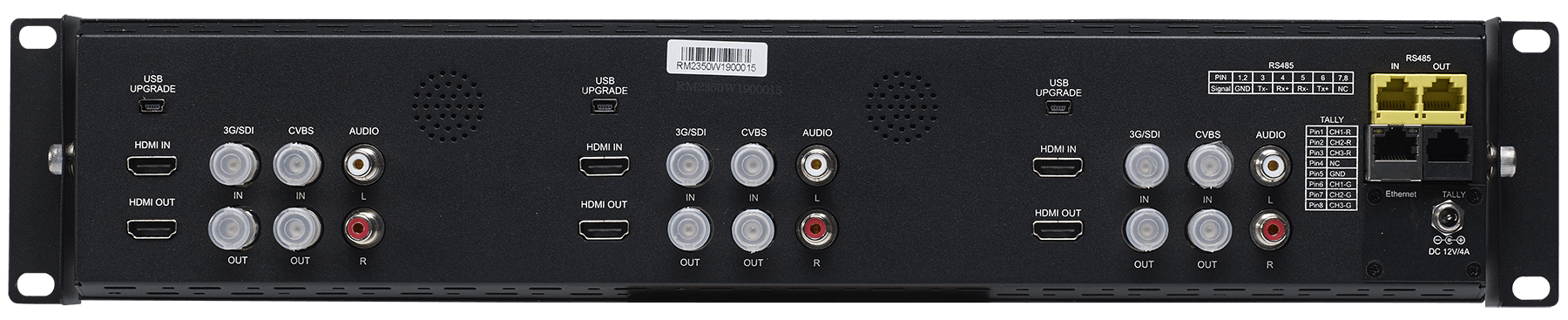

• RM-2350W-3G Rear Panel

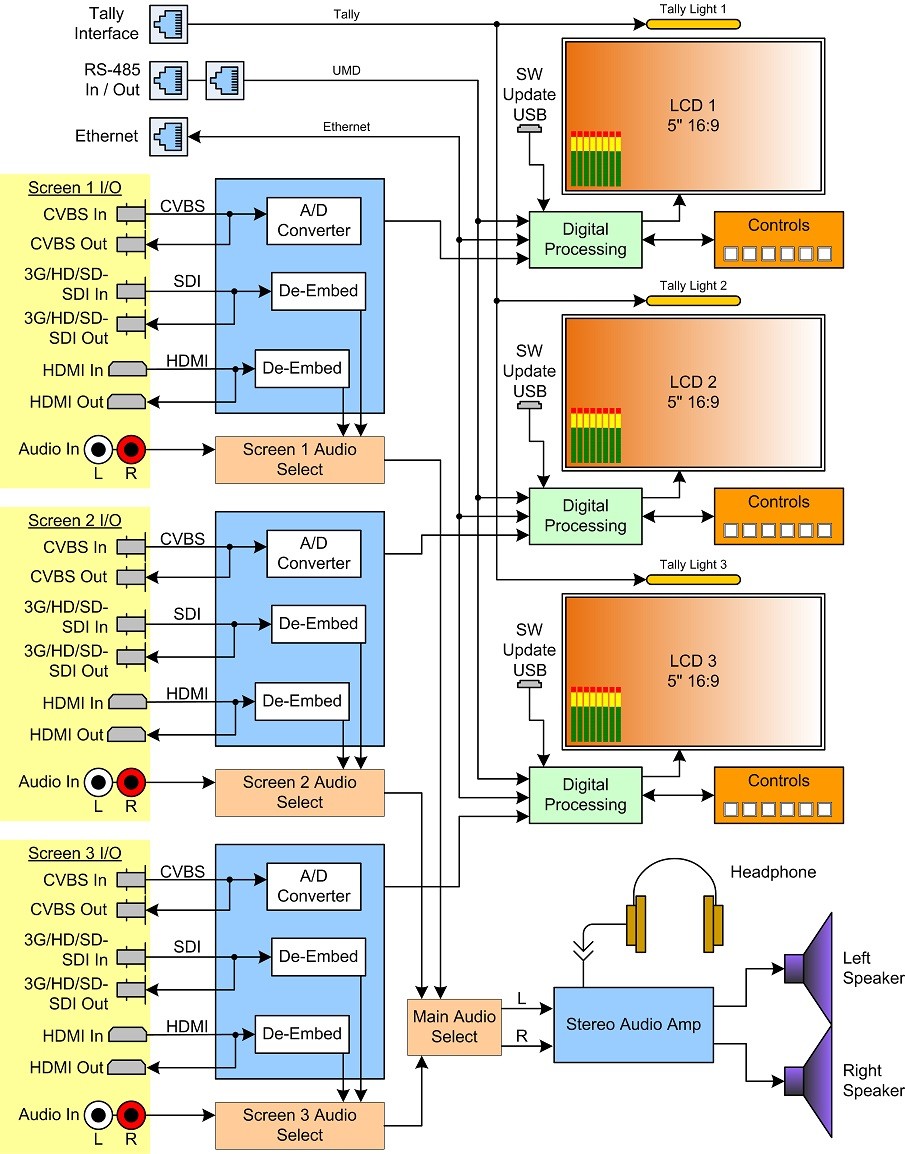

  • RM-2350W-3G Block Diagram

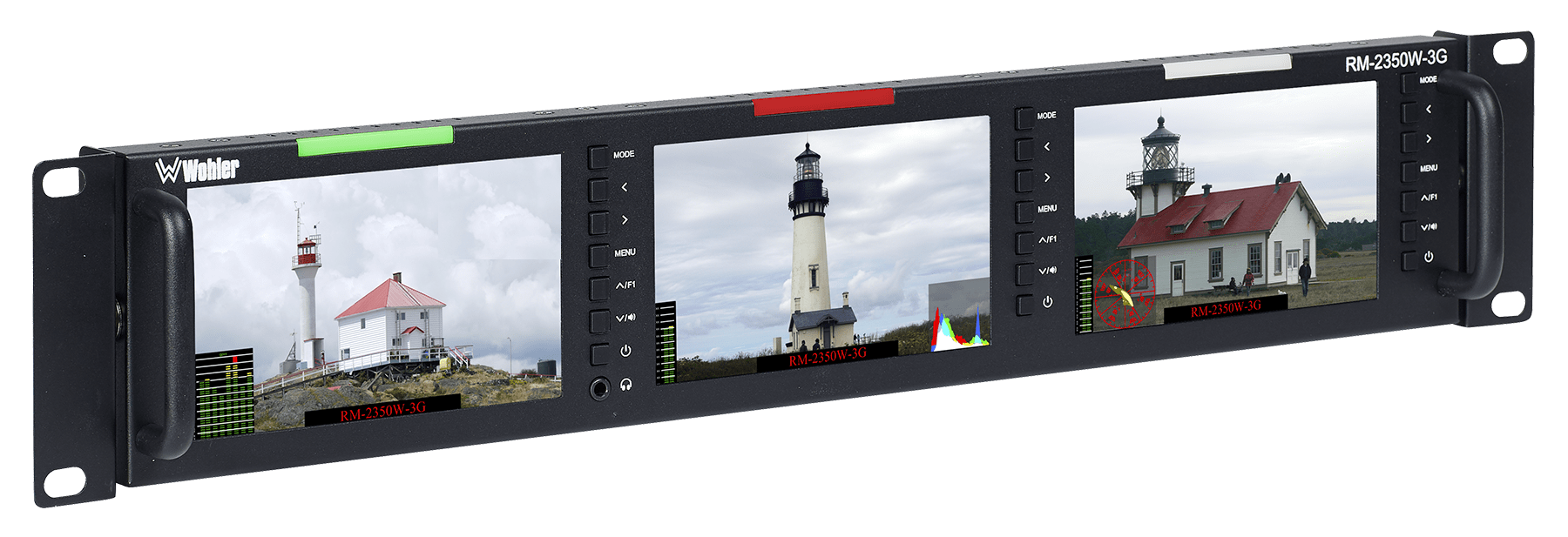

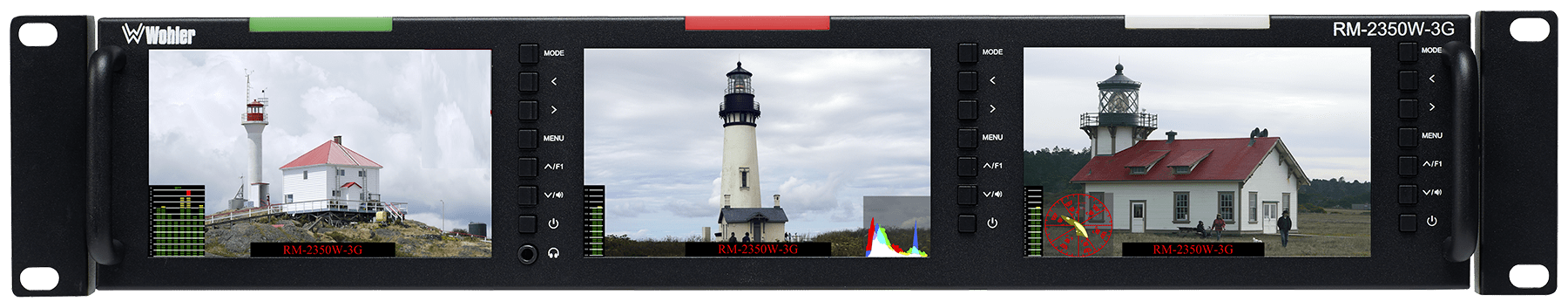

RM-2350W-3G Triple 5.0 Inch 2U Video Monitor

Order Number 8002-0350

Triple 5.0 Inch Widescreen LCD Video Monitor with Dual Input 3G-SDI, CVBS & HDMI I/O, 2U. Speakers, meters, scopes, markers, tally, picture controls, IMD.

Audio Monitor Video Monitor 3G/HD/SD-SDI Analog HDMI Level Meters Measurement Tools Headphone Socket Speakers Broadcast Studio Remote Production Pro A/V

TRIPLE 2U RACKMOUNT VIDEO MONITOR WITH 3G-SDI, HDMI & COMPOSITE I/O

The RM Series is a fully featured range of slim, LCD rack-mounted video monitors.  Therefore, that makes them ideal for mobile trucks, news and control rooms, production, post-production and video surveillance applications. These tilting monitors ship with on-screen level meters, multiple scopes (vectorscope, histogram), safe area and aspect ratio markers as standard features.  They also ship with a variety of picture controls and assistive video features such as zoom, image flip, and focus assist.  IMD labels, tally, and built-in color bars are also included.  In conclusion, the RM-2350W-3G is a Triple 2U Video Monitor that meets a variety of needs and specifications.

This unit supports standard frame rates and resolutions up through 3G-SDI, HDMI and Composite.  Each input has a looped output. Select up to 16 audio channels for visual monitoring.  Speakers are included too, while a 3.5mm headphone socket provides optional private monitoring.

Finally, each of the high-resolution LCD screens displays high-definition or standard-definition video in a range of aspect ratios. Select from multiple parameters from the menu to customize the information overlays on each screen.

Looking for 4 screens, but don’t need speakers?  We also have a quad-screen unit.

Do you need a bigger screen?  Please see our dual screen 7″/3U or our dual screen 10″ unit/4U offering.

FEATURES & BENEFITS:

  • Triple 2U Video Monitor
  • On-screen level meters up to 16 channels provide confidence audio monitoring
  • On-screen vectorscope and histogram displays
  • Ratio and Safe Area markers
  • Tally and on-screen labeling provide quick and easy signal identification
  • Image controls allow video image enhancement for each screen, individually
  • Built-in color bars
  • Intuitive on-screen menus
  • Headphone output
  • Client/Server GUI network control, ideal for configuring difficult to reach wall-mounted monitors

Links for external purchase:

View our product announcement.

SDI Inputs1 x 3G/HD/SD-SDI on BNC (per screen)
SDI Outputs1 per screen, on BNC (loop out)
Analog Input2 (1 left, 1 right) per screen, on RCA
CVBS Input1 per screen, on BNC
CVBS Output1 per screen, on BNC (loop out)
HDMI Input1 per screen, on HDMI type A
HDMI Output1 per screen, on HDMI type A (loop out)
Data Ports

2 RS-485 on RJ-45 for dynamic controls; 1 RJ-45 for tally control; 1 Ethernet connector; 1 USB Mini-B for software updates.

SpeakersYes
Meter DynamicsVU
Meter ScaleVU
Contrast500:1
Diagonal Display Size5"
Display Modes480i / 576i / 480p (HDMI) / 576p (HDMI) / 1080i (60/59.94/50) / 720p (60/59.94/50/30/29/25/24/23.98) / 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
Display Resolution (HxV)800×480 pixels
Display TypeIPS-LCD with LED Backlight
Luminance500cd/m²
Native Aspect16:9
Number of screens3
Pixel Response10 ms
Viewing Angle70°/70°(L/R); 50°/70°(U/D)
Level MetersOn-Screen for up to 16 channels
Audio Channels (max)16
Video WaveformYes
Tally Controls1 x on RJ-45
UMD2 x RS485 (in & out) on RJ-45
Front Panel ControlsPower; Menu; Sound Select/Mute, Volume Up/Down; User-Assignable Function Key.
Headphone JackYes, 3.5mm
Ethernet GbE1 x 10/100M on RJ45
USB PortYes, Mini-B for software updates
Rack Height2RU
Power Consumption10 Watts (3 Amps Max)
Power SupplyExternal 12VDC/3A, CE & UL approved.
Additional OptionsRack Mounted Mechanical Design with Vertical Tilt
Dimension Width19.0" (483mm)
Dimension Height3.5" (89mm)
Dimension Depth1.7" (44mm)
Net Weight7.0 lbs (3.2 kg)
Shipping Dimensions24.0 × 10.0 × 6.0 in (LxWxH)

Looking for software updates? Click here.

Reporting an issue? Click here.

Features

Signal Input 1 x 3G/HD/SD-SDI on BNC (per screen) x SDI Inputs, 2 (1 left, 1 right) per screen, on RCA x Analog Input, 1 per screen, on HDMI type A x HDMI Input, 1 per screen, on BNC x CVBS Input
Signal Output 1 per screen, on BNC (loop out) x SDI Outputs, 1 per screen, on BNC (loop out) x CVBS Output, 1 per screen, on HDMI type A (loop out) x HDMI Output
Data Ports

2 RS-485 on RJ-45 for dynamic controls; 1 RJ-45 for tally control; 1 Ethernet connector; 1 USB Mini-B for software updates.

Audio Specifications
Speakers Yes
Meter Dynamics VU
Meter Scale VU
Video Specifications
Contrast 500:1
Diagonal Display Size 5"
Display Modes 480i / 576i / 480p (HDMI) / 576p (HDMI) / 1080i (60/59.94/50) / 720p (60/59.94/50/30/29/25/24/23.98) / 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
Display Resolution (HxV) 800×480 pixels
Display Type IPS-LCD with LED Backlight
Luminance 500cd/m²
Native Aspect 16:9
Number of screens 3
Pixel Response 10 ms
Viewing Angle 70°/70°(L/R); 50°/70°(U/D)
Features
Level Meters On-Screen for up to 16 channels
Audio Channels (max) 16
Tally Controls 1 x on RJ-45
UMD 2 x RS485 (in & out) on RJ-45
Video Waveform Yes
Interfacing
Ethernet GbE 1 x 10/100M on RJ45
Front Panel Controls Power; Menu; Sound Select/Mute, Volume Up/Down; User-Assignable Function Key.
Headphone Jack Yes, 3.5mm
USB Port Yes, Mini-B for software updates
Physical
Dimension Depth 1.7" (44mm)
Rack Height 2RU
Dimension Height 3.5" (89mm)
Dimension Width 19.0" (483mm)
Net Weight 7.0 lbs (3.2 kg)
Power Consumption 10 Watts (3 Amps Max)
Power Supply External 12VDC/3A, CE & UL approved.
Shipping Weight 7.0 lbs (3.2 kg)
