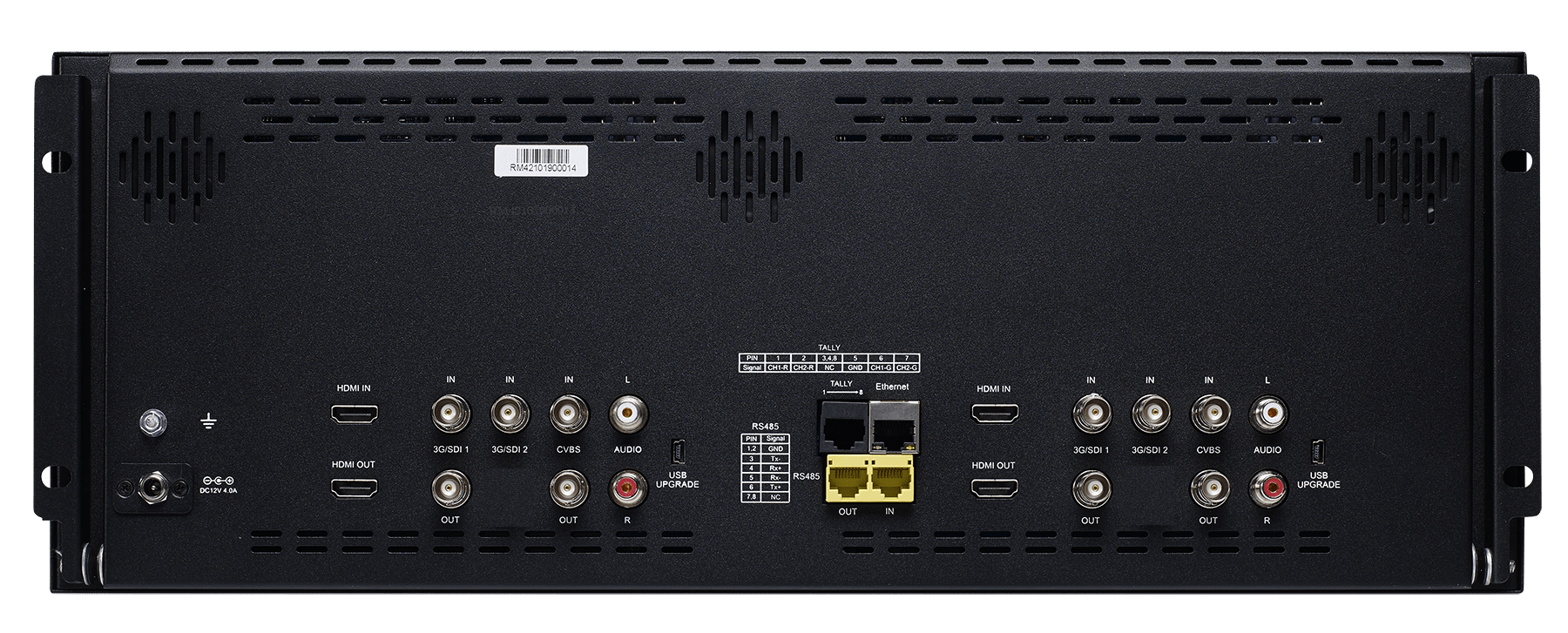

• RM-4210W-3G2 Rear Panel

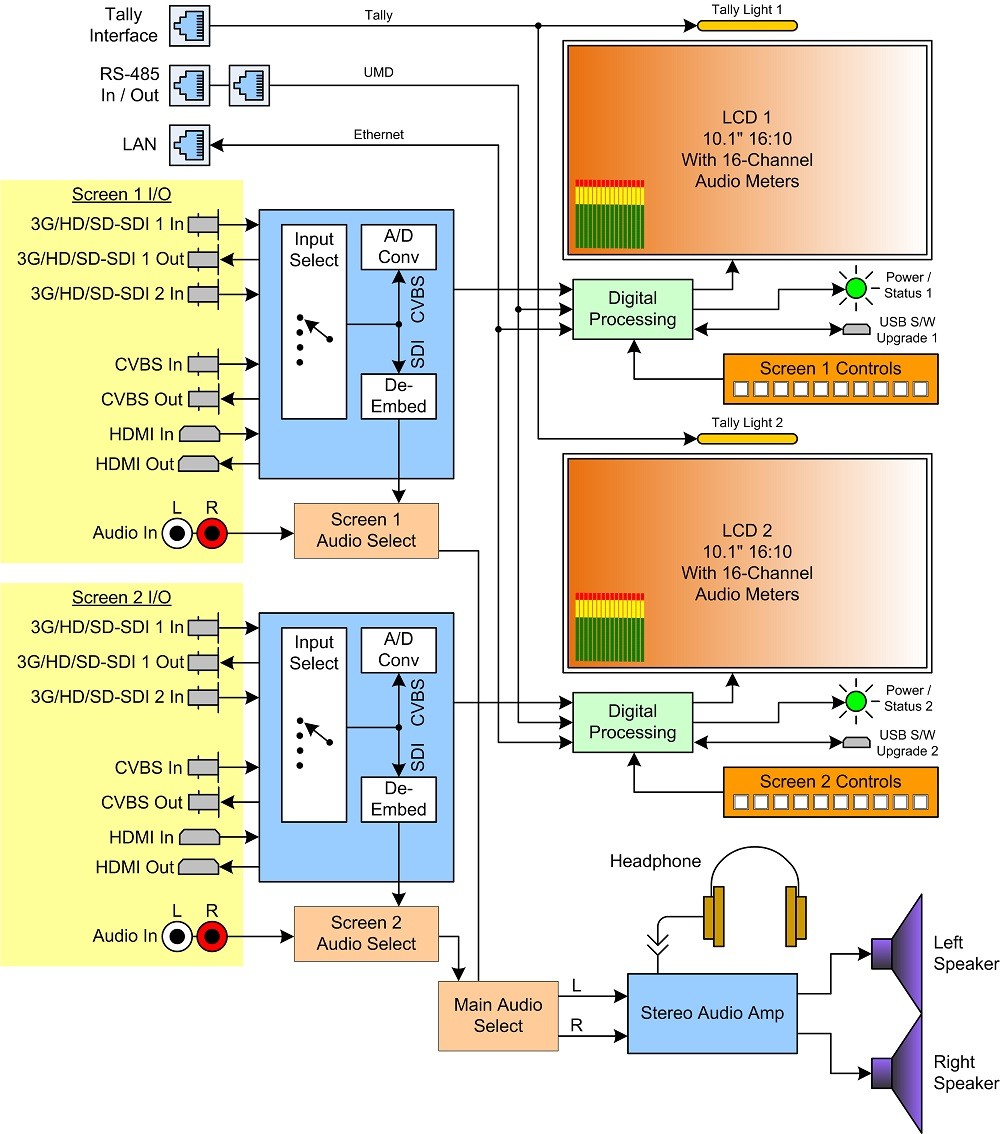

  • RM-4210W-3G2 Block Diagram

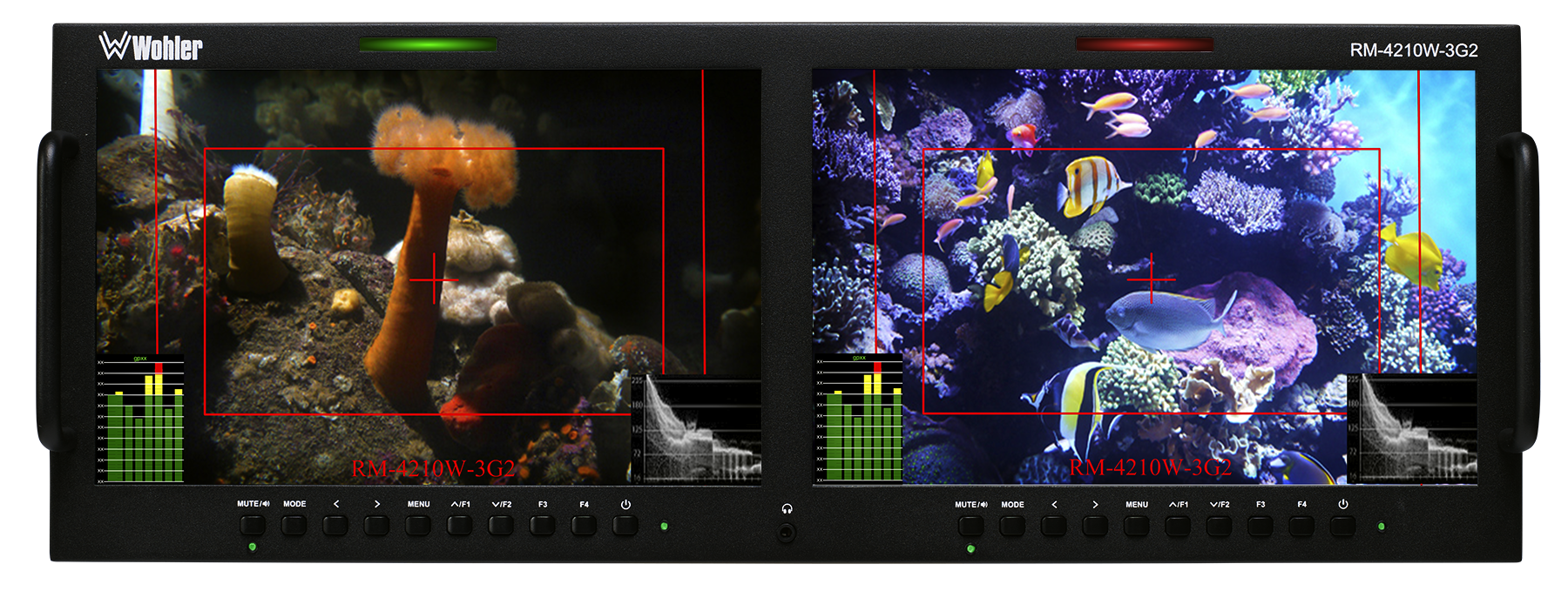

  • RM-4210W-3G2 Front Panel

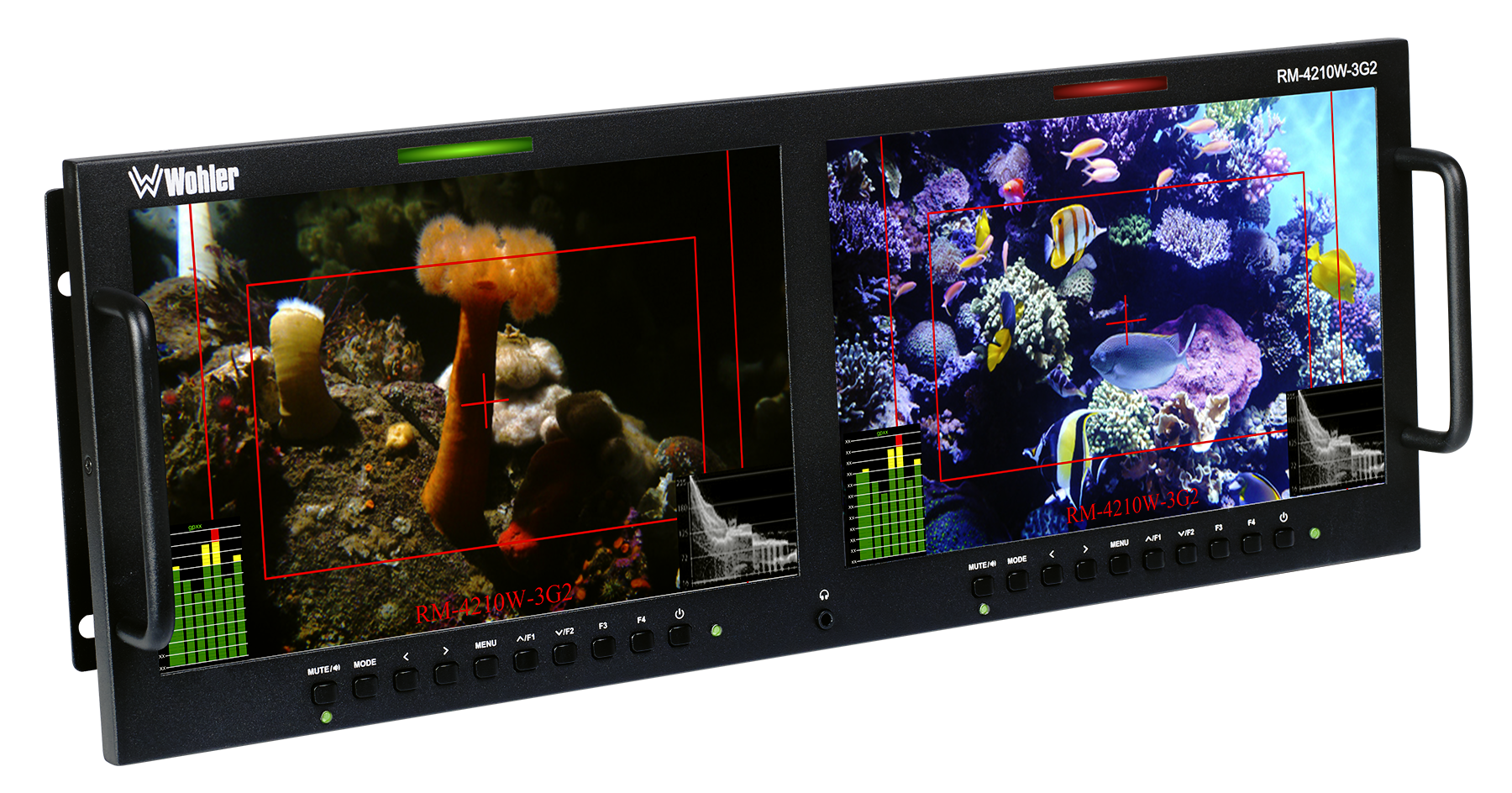

RM-4210W-3G2 Dual 10.0 Inch 4U Video Monitor

Order Number 8002-0381

Dual 10.0 Inch Widescreen LCD Video Monitor with Dual Input 3G-SDI, CVBS & HDMI I/O, 4U. Speakers, meters, scopes, markers, tally, picture controls, IMD.

Audio Monitor Video Monitor 3G/HD/SD-SDI Analog HDMI Level Meters Measurement Tools Headphone Socket Speakers

DUAL 4U RACKMOUNT VIDEO MONITOR WITH 3G-SDI, HDMI & COMPOSITE I/O

The RM Series is a fully featured range of slim, LCD rack-mounted video monitors.  Therefore, that makes them ideal for mobile trucks, news and control rooms, production, post-production and video surveillance applications. These tilting monitors ship with on-screen level meters, multiple scopes (vectorscope, histogram), safe area and aspect ratio markers as standard features.  They also ship with a variety of picture controls and assistive video features such as zoom, image flip, and focus assist.  IMD labels, tally, and built-in color bars are also included.  In conclusion, the RM-4210W-3G2 is a Dual 4U Video Monitor that meets a variety of needs and specifications.

This unit supports standard frame rates and resolutions up through 3G-SDI, HDMI and Composite.  Each input has a looped output. Select up to 16 audio channels for visual monitoring.  Speakers are included too, while a 3.5mm headphone socket provides optional private monitoring.

Finally, each of the high-resolution LCD screens displays high-definition or standard-definition video in a range of aspect ratios. Select from multiple parameters from the menu to customize the information overlays on each screen.

Looking for more than 2 screens?  We also have triple screen and dual screen options.

Would you like a 7″/3RU screen rather than a 10″/4RU screen?  Please see our quad screen 7″ unit.

FEATURES & BENEFITS:

  • Dual 4U Video Monitor
  • On-screen level meters up to 16 channels provide confidence audio monitoring
  • On-screen vectorscope and histogram displays
  • Ratio and Safe Area markers
  • Tally and on-screen labeling provide quick and easy signal identification
  • Image controls allow video image enhancement for each screen, individually
  • Built-in color bars
  • Intuitive on-screen menus
  • Headphone output
  • Client/Server GUI network control, ideal for configuring difficult to reach wall-mounted monitors

Links for external purchase:

View our product announcement.

SDI Inputs2 x auto-sensing 3G/HD/SD-SDI (per screen)
SDI Outputs1 x looped 3G/HD/SD-SDI (per screen)
Analog Input2 Analog Audio Inputs on RCA (per screen)
CVBS Input1 CVBS Video Inputs on BNC (per screen)
CVBS Output1 x looped CVBS on BNC (per screen)
HDMI Input1 x HDMI on type A (per screen)
Data Ports

2 x RS485 (IMD) on RJ-45; 1 x RJ-45 (tally); 1 USB S/W Upgrade per screen

SpeakersYes
Power Output5 Watts
Analog Input Impedance52 kOhms
Meter DynamicsVU
Meter ScaleVU
Color Depth16.7M
Contrast800:1
Diagonal Display Size10.1 Inch
Display ModesLCD
Display Resolution (HxV)1920 (H) x 1200(V)
Display TypeIPS-LCD with LED Backlight
Luminance320 cd/m^2
Native Aspect16:9
Number of screens2
Pixel Response25 ms, typical
Viewing Angle170 (H) x 170 (V)
Level MetersOn-Screen for up to 16 Channels
Audio Channels (max)16
Video WaveformYes
Tally ControlsTally on RJ-45
UMD2 ea. RS485 (In & Out) for UMD
Front Panel ControlsSignal Select; Mute; OSD Menu Controls; F1-F4, Power
Remote User InterfaceYes
Headphone JackYes
Ethernet GbEYes
USB PortYes, for upgrades
Rack Height4RU
Power Consumption35 Watts
Power SupplyExternal 120V to 240 VAC +- 10%, CE & UL approved.
Additional OptionsRack Mounted Mechanical Design with Forward Tilt
Dimension Width19.0" (484mm)
Dimension Height7.0" (176mm)
Dimension Depth1.7" (44mm)
Net Weight8.0 lbs (3.7 kg)
Shipping Dimensions24.0 × 10.0 × 6.0 in (LxWxH)

Looking for software updates? Click here.

Reporting an issue? Click here.

Features

Signal Input 2 x auto-sensing 3G/HD/SD-SDI (per screen) x SDI Inputs, 2 Analog Audio Inputs on RCA (per screen) x Analog Input, 1 x HDMI on type A (per screen) x HDMI Input, 1 CVBS Video Inputs on BNC (per screen) x CVBS Input
Signal Output 1 x looped 3G/HD/SD-SDI (per screen) x SDI Outputs, 1 x looped CVBS on BNC (per screen) x CVBS Output
Data Ports

2 x RS485 (IMD) on RJ-45; 1 x RJ-45 (tally); 1 USB S/W Upgrade per screen

Audio Specifications
Speakers Yes
Power Output 5 Watts
Analog Input Impedance 52 kOhms
Meter Dynamics VU
Meter Scale VU
Video Specifications
Color Depth 16.7M
Contrast 800:1
Diagonal Display Size 10.1 Inch
Display Modes LCD
Display Resolution (HxV) 1920 (H) x 1200(V)
Display Type IPS-LCD with LED Backlight
Luminance 320 cd/m^2
Native Aspect 16:9
Number of screens 2
Pixel Response 25 ms, typical
Viewing Angle 170 (H) x 170 (V)
Features
Level Meters On-Screen for up to 16 Channels
Audio Channels (max) 16
Tally Controls Tally on RJ-45
UMD 2 ea. RS485 (In & Out) for UMD
Video Waveform Yes
Interfacing
Ethernet GbE Yes
Front Panel Controls Signal Select; Mute; OSD Menu Controls; F1-F4, Power
Headphone Jack Yes
Remote User Interface Yes
USB Port Yes, for upgrades
Physical
Dimension Depth 1.7" (44mm)
Rack Height 4RU
Dimension Height 7.0" (176mm)
Dimension Width 19.0" (484mm)
Net Weight 8.0 lbs (3.7 kg)
Power Consumption 35 Watts
Power Supply External 120V to 240 VAC +- 10%, CE & UL approved.
Shipping Weight 8.0 lbs (3.7 kg)
Other
Additional Options Rack Mounted Mechanical Design with Forward Tilt
