SKU: 8006-0110

vMON-240-3G2

Fully featured, slim and cost effective 24” free standing 2K video monitor with on-screen audio level meters, waveform, and histogram.
Data Sheet

Data Sheet

Ask a Question

Ask a Question

Support

Support

Request a Quote

fields marked with an * are required

vMON-240-3G2

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

    The vMON Series is a full-featured range of slim, free standing video monitors ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications. These monitors come standard with in-monitor level metering, selectable video vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars, as well as a variety of picture controls and productive video features such as zoom controls and focus assist.

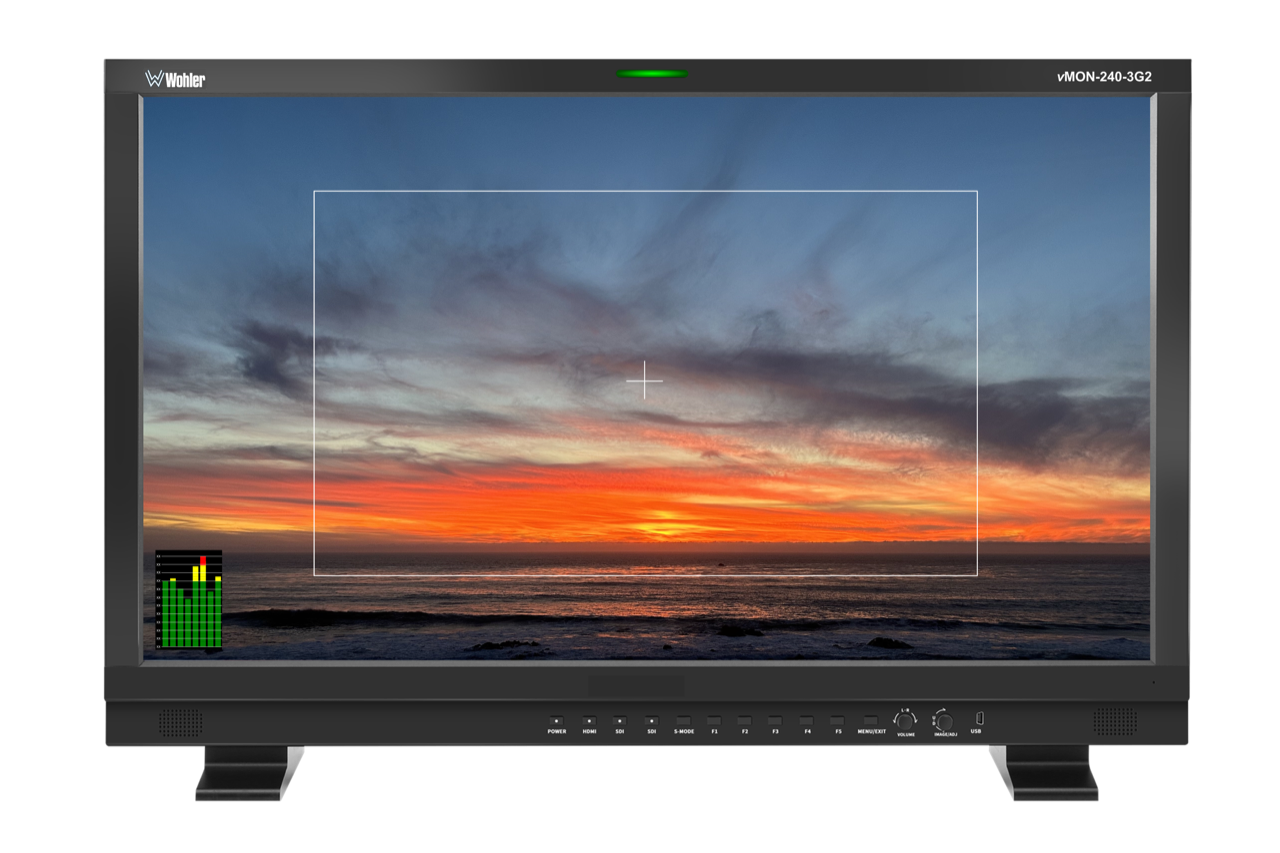

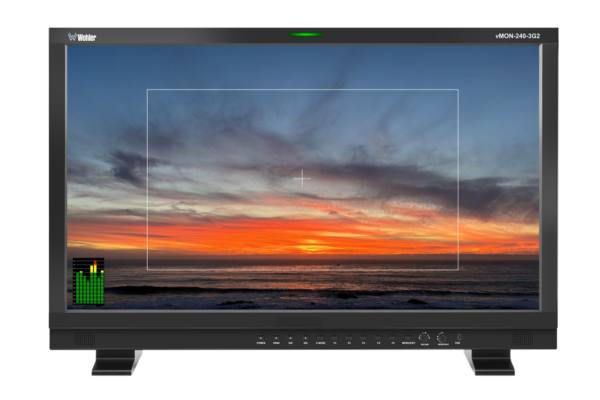

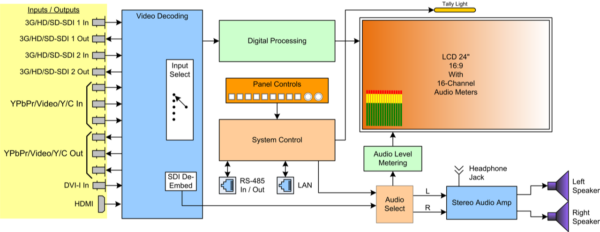

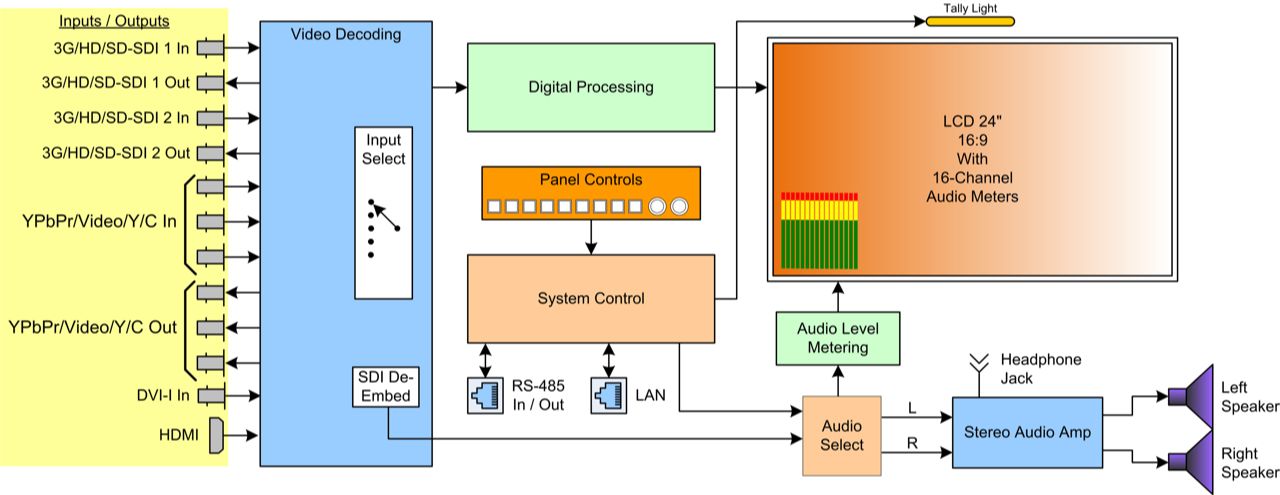

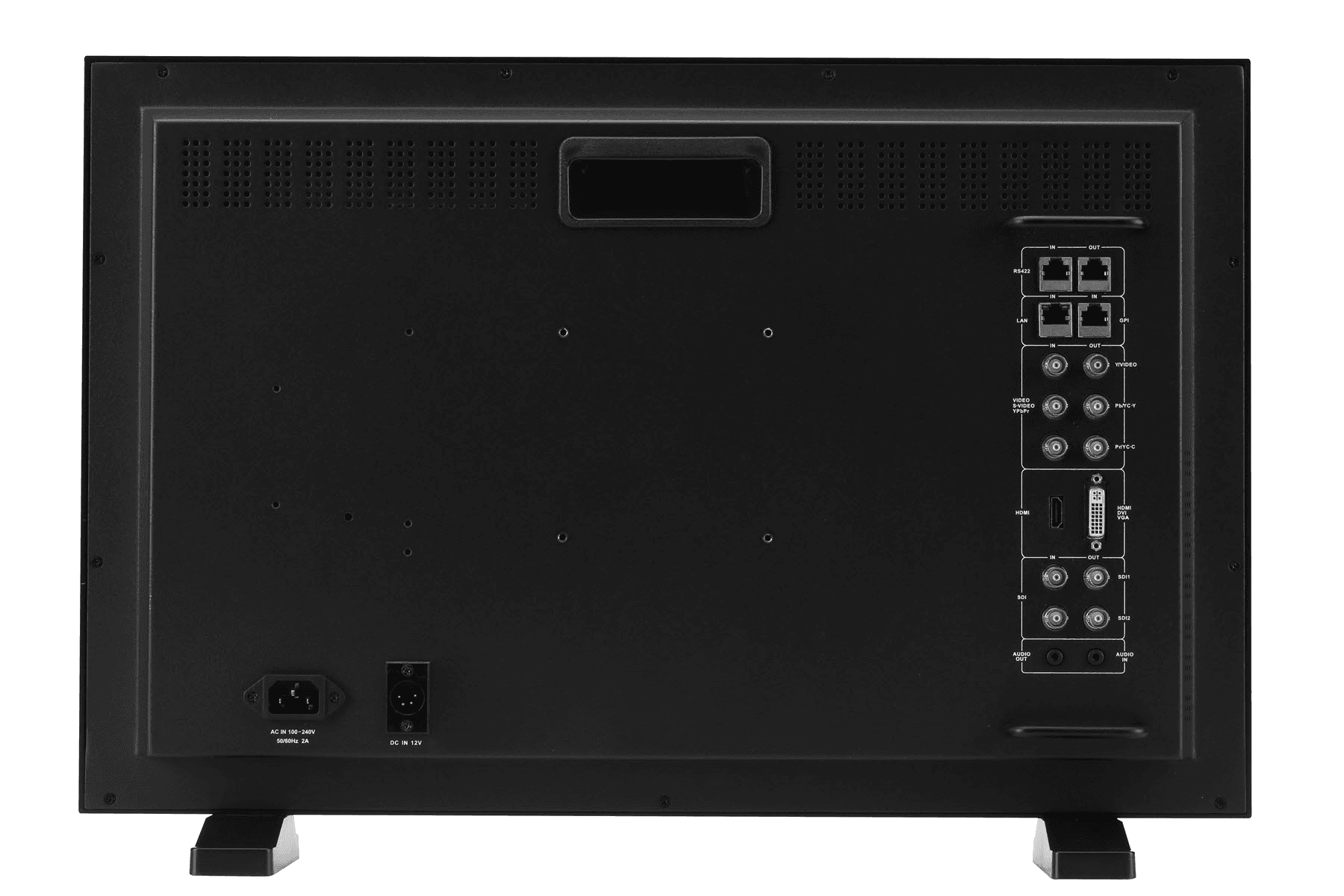

    The vMON-240-3G2 is an 24” 3G monitor with 2x3G/HD/SD-SDI and 1xYPbPr/Video/Y/C, 1xDVI-I, and 1xHDMI Inputs and 2x3G/HD/SD-SDI and 1xYPbPr/Video/Y/C outputs. It supports a variety of professional broadcasting features such as Waveform, Vectors, Pixel Measurement, and Darkness Check, making vMON-240-3G2 a brilliant 24 inch monitor in a 2K production workflow.

    All standard frame rates and resolutions are supported from 3G-SDI, HDMI, and composite input sources, and each SDI and composite input has a looping output. Up to 16 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers on the front panel allow the selected screen to be audibly monitored, while a 3.5mm headphone jack provides optional private monitoring.

    The vMON-240-3G3 contains a large array of Features and Benefits as listed in the table on the following page.

    Features & Benefits

    – 1920 x 1080 resolution, 8 Bit LCD Panel

    – 12 Bit Video Processing, no image delay

    – 3G-SDI 4:4:4 12bit signals (SMPTE 425M A/B)

    – 2x2K/3G-SDI inputs and outputs(2K/3G/HD/SD-SDI auto detect)

    – 1x HDMI input, 1x DVI-I input, 1x composite video input

    – PBP/PIP(size/position adjustable)

    – Audio Level Meter, Blue/Mono Only

    – Waveform, Vectorscope for SDI1, SDI2, HDMI/DVI

    – Picture Flip, Focus Assist

    – False Color, Zebra

    – Part Zoom In

    – Pixel Measurement and Audio Phase

    – H/V Delay, Over Scan, Markers

    – Darkness Check

    – HDR supports PQ (ST2084) and HLG(1.0,1.1, 1.2, 1.3, 1.4, 1.5)

    – 3D LUT Color calibration with ColourSpace & CalMAN

    – Color space: REC709/EBU/DCI-P3 D65/DCI-P3/REC2020/

    USER1/USER2/Bypass

    – Support user 3D LUT files import

    – Various Gamma selection: Gamma 2.0, 2.2, 2.4, 2.6

    – EOTF Log Curves: Slog(SDR), Slog2(SDR), Slog3(SDR), Slog3(HDR)

    – Remote control: Ethernet/GPI, RS422 In/Out

    – Dynamic UMD(TSL3.1/4.0)

    – LED Tally Light and On-screen Tally display – 3G/HD/SD-SDI auto detect

    – F-key configuration and Key Lock function

    – Built-in Speakers

    A-V Specs

    Meter Dynamics  2-16 channels for each display window (source dependent)
    Number of screens  1
    Color Depth  16.7 million
    Diagonal Display Size  24″ Diagonal (527 mm H x 296.5 mm V)
    Display Resolution (HxV)  1920 H x 1080 V
    Contrast  1000:1
    Luminance  250 cd/m2



    Physical Specs

    Power Consumption  32 Watts
    Power Supply  100 – 240 VAC or 12 VDC
    Dimension Width  22.7″ (578 mm)
    Dimension Height  15.7″ (401 mm)
    Dimension Depth  5.9″ (150 mm)
    Net Weight  17 lbs (8 kg)
    Shipping Weight  17 lbs (8 kg)
    Shipping Dimensions  26 × 20 × 10 in (LxWxH)
