SKU: 8006-0210

vMON-270-4K

Fully featured, slim and cost effective 27” free standing 4K video monitor with on-screen audio level meters, quad split, waveform, and histogram.
Data Sheet

Data Sheet

Manual

Manual

Ask a Question

Ask a Question

Support

Support


Request a Quote

fields marked with an * are required

vMON-270-4K

    First Name*

    Last Name*

    Email*

    Phone*

    Company Name*

    Select Country*

    Signal
    Please indicate the signals you need
    to decode or monitor

    3G-SDI12G-SDI/4K12G-SDI/4KST-2110ST-2022Ravenna/AES67Dante/AES67AnalogAES3MADIToslinkCVBS

    Any additional processing needs?
    Wohler offers additional processing options.
    Please check any/all that you want quoted.

    Dolby D/DD+/EDolby ATMOSOutput Routing

    Please describe your project

    please provide project informaion to help us give you the best quote.
    Quantities and # of channels to monitor is especially useful.

    Budget Status

    Date Product is required

    Number of units required

    Description

    The vMON Series is a full-featured range of slim, free standing video monitors ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications. These monitors come standard with in-monitor level metering, selectable video vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars, as well as a variety of picture controls and productive video features such as zoom controls and focus assist.

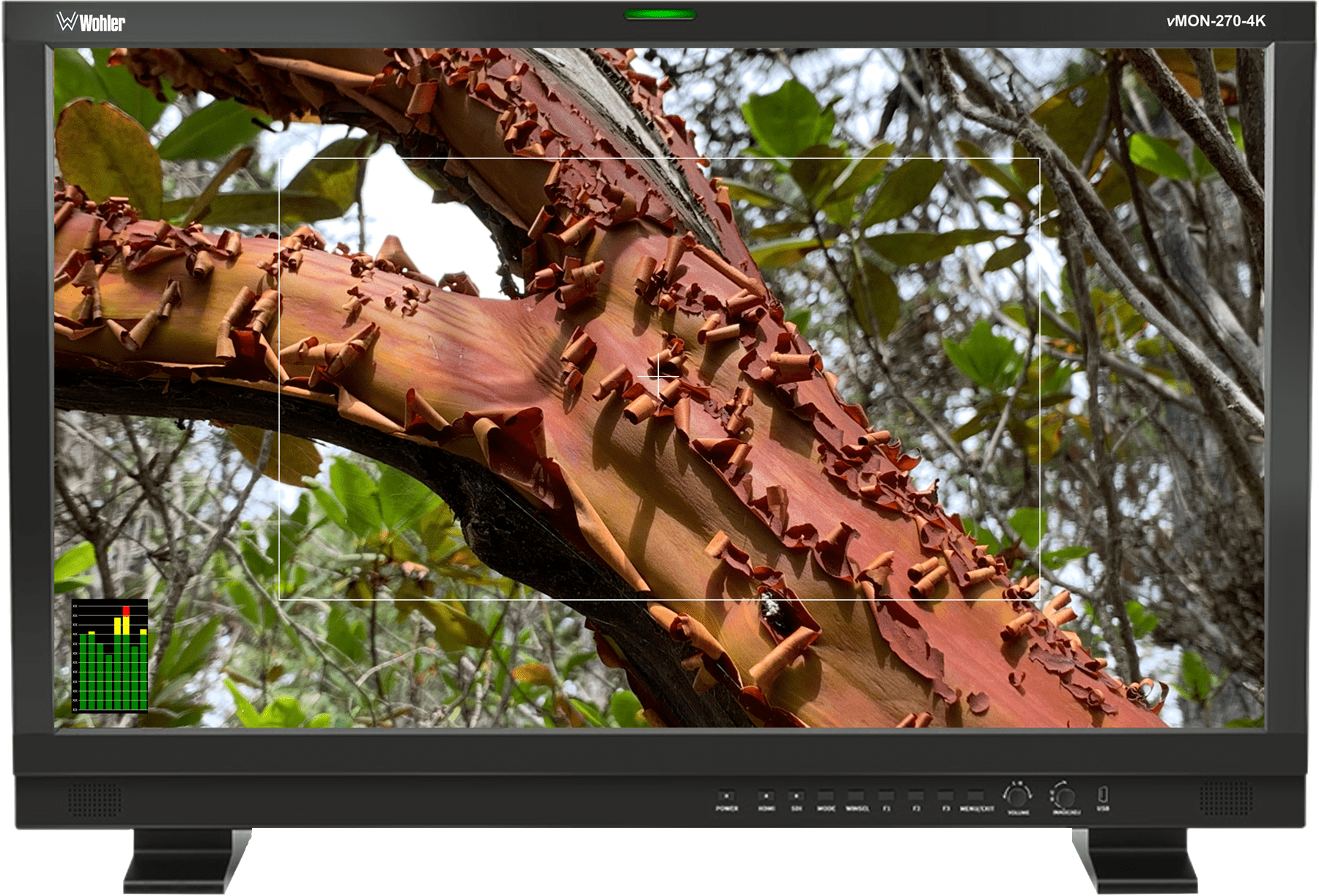

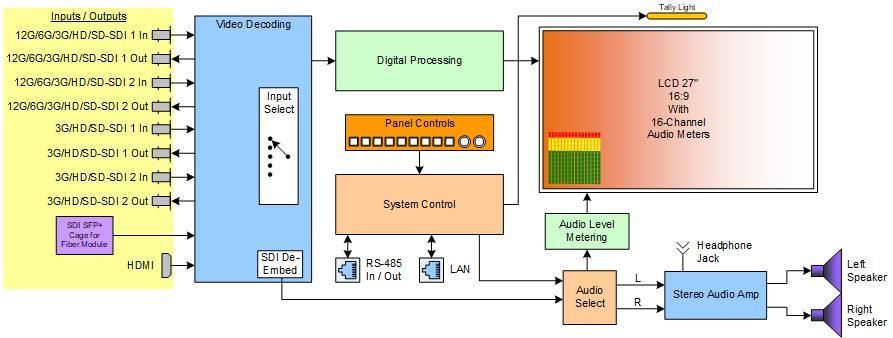

    The vMON-270-4K is a 27” 4K HDR monitor with 2x12G/6G/3G/HD/SD-SDI and 2x3G/HD/SD-SDI inputs and outputs. Quad-link supports up to a 4096×2160 60p signal. The 4K HDR display supports PQ(ST2084) and HLG, a cost effective 4K monitor for a variety of 4K and FHD workflows.It supports a large variety of professional broadcasting features such as Quad Split, Waveform, Histogram, Darkness Check, making vMON-270-4K a brilliant 27 inch monitor in 4K production workflow.

    All standard frame rates and resolutions are supported from 12G-SDI, 6G-SDI, 3G-SDI, and HDMI input sources, and each SDI input has a looping output. Up to 16 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers on the front panel allow the selected screen to be audibly monitored, while a 3.5mm headphone jack provides optional private monitoring.

    The vMON-270-4K contains a vast array of Features and Benefits as listed in the table on the following page.

    Features & Benefits

    – 3840 x 2160 4K resolution

    – 12 Bit Video Processing, no image delay

    – 12G/6G/3G/HD/SD-SDI auto detect

    – 4K 12G-SDI single link signal, 4K Quad link 2 Sample Interleave (2SI), Square Division (SQD)

    – 1 x SDI SFP+ module optical input cage, 1 x HDMI 2.0 input

    – Free Quad-View (border control/window adjustment), 4 x SDI/HDMI mixed inputs & frequency rates

    – 16 ch Embedded Audio Level Meters

    – 4K HDR Waveform, Vector Scope, Marker/Box Control Function

    – Picture Flip, Focus Assist, False Color, Zebra

    – Full Scan, Over Scan, Blue/Mono Only

    – Key Lock, Video Freeze

    – SDR and HDR comparison, Darkness Check

    – Color Space & EOTF Curves Auto Sensing, matching (REC709/REC2020)

    – Color Space (REC709/EBU/DCI-P3 D65/DCI-P3/REC2020/Bypass)

    – HDR: PQ (ST2084), HLG (1.0, 1.1, 1.2, 1.3, 1.4, 1.5)

    – Sony Camera Log Curves: Slog, Slog2, Slog3

    – Canon Camera Log Curves: Clog, Clog2, Clog3

    – ARRI Camera Log Curves: LogC

    – Panasonic Camera Log Curves: Vlog, Vlog (softroll)

    – Gamma (2.0, 2.2, 2.4, 2.6), HDR Area Display

    – 3D LUT Color calibration with ColourSpace & CalMAN

    – 3rd party 3D LUT files import (USER1/USER2)

    –  Eight Selectable Scene Settings

    – Dynamic and Static UMD/IMD Display (TSL3.1/4.0/5.0)

    – 608/708 CC Closed Caption

    – Firmware upgrade/LUT file import via USB/Ethernet

    – GPI (selectable/markable windows)

    – Built-in Speakers

    Options

    A-V Specs

    Meter Dynamics  2-16 channels for each display window (source dependent)
    Number of screens  1
    Color Depth  1.07 billion
    Diagonal Display Size  27″ Diagonal (597.0 mm H x 336.3 mm V)
    Display Resolution (HxV)  3840 H x 2160 V
    Contrast  2000:1
    Luminance  400 cd/m2



    Physical Specs

    Power Consumption  63 Watts
    Power Supply  100 – 240 VAC or 12 VDC
    Dimension Width  26.3″ (649 mm)
    Dimension Height  17.4″ (441 mm)
    Dimension Depth  6.3″ (160 mm)
    Net Weight  26 lbs (11.7 kg)
    Shipping Weight  31 lbs (26.3 kg)
    Shipping Dimensions  32 × 24 × 11 in (LxWxH)
